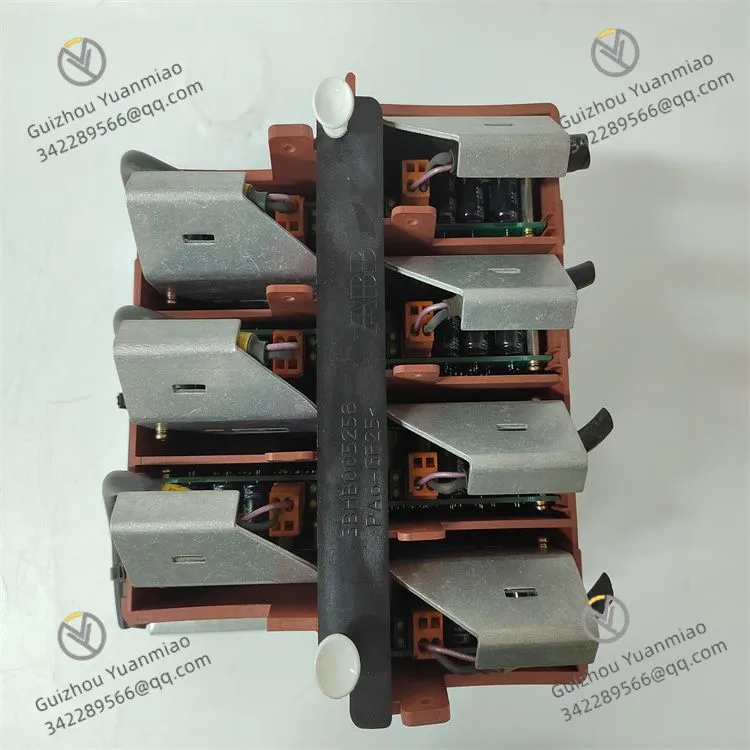

ABB 3BHB004661R0001 (type KUC711AE) is an industrial‑grade high‑performance power supply control unit.It is designed to provide stable and efficient power supply and precise control for industrial automation systems, balancing power stability, control accuracy, and industrial‑grade reliability.
Adopting advanced integrated circuit technology and precision manufacturing processes, this module integrates power conversion, power control, and protection functions in one unit.It features wide voltage compatibility, strong electromagnetic compatibility (EMC), and multiple protection mechanisms, effectively resisting harsh on‑site conditions such as voltage fluctuations and electromagnetic interference.It is suitable for new automation systems, equipment upgrades, and spare parts replacement.It can be seamlessly integrated with mainstream ABB control systems including Freelance and AC800M, while being compatible with various industrial equipment.It provides core power support and control assurance for industrial automation in petrochemical, power, pharmaceutical, food and beverage, and other industries.
1 Basic Parameters
1.1 Core Performance and Functional Parameters
Product Type: Industrial‑grade high‑performance power supply control unit, belonging to the ABB KUC711 series.Mainly used for power supply, on/off control, and auxiliary control of related equipment in industrial automation systems, enabling stable power conversion and precise regulation.It is a key component ensuring safe and stable power supply for equipment in automation systems, and can also support excitation control applications.
Core Performance:Adopts zero‑voltage switching or zero‑current switching technology with excellent EMC performance.Control accuracy up to 0.2% or 0.5%, with annual drift less than 0.2%, providing outstanding operational stability.Integrated high‑efficiency power conversion module delivers high power efficiency, low energy consumption, and long‑term stable operation to meet the demands of complex industrial environments.
Control Functions:Provides core functions including power on/off control, voltage adjustment, and overload protection triggering.Precisely responds to commands from the control system to manage power supply to gate control units, motors, sensors, and other equipment.In some applications, it can support basic excitation regulation for power system excitation control.
Communication Capability:Supports mainstream communication protocols such as Modbus TCP/IP, RS‑232/485, enabling seamless data exchange with control systems and monitoring devices.Facilitates remote status monitoring, parameter setting, and troubleshooting to improve system maintenance efficiency.Some versions support Profibus DP, CANopen, and other protocols for higher‑level coordinated control.
1.2 Electrical and Power Supply Parameters
| Parameter Category | Specification |
|---|---|
| Main Supply Voltage | Input: 230V AC or 400V AC (wide voltage range; stable output maintained even when AC voltage varies from 150V to 280V); Frequency: 50Hz, suitable for standard industrial power supply. |
| Output Parameters | Output voltage: 24V DC; Output current: 40A; Rated power: 2200W. Stable power supply for industrial actuators, sensors, gate control units, and other loads. |
| Insulation Performance | Insulation resistance > 100MΩ (tested at 500V DC); Insulation voltage ≥ 1000V AC for 1 minute. Excellent electrical isolation to avoid interference and breakdown risks. |
| Immunity | Complies with IEC 61000 EMC standards. Enhanced EMC design withstands EFT, ESD, and RF radiation interference for stable operation in harsh electromagnetic environments. |
| Protection Functions | Multiple protections including overload, short circuit, overvoltage, undervoltage, and over‑temperature. Quickly cuts off power or triggers alarms to protect the module and connected equipment. Automatic recovery after fault clearance (some protections require manual reset). |
1.3 Mechanical and Installation Parameters
Structure Type: Modular compact design with highly integrated, fully sealed packaging.Integrates power devices and logic control circuits, with robust construction offering high resistance to dust, moisture, and shock for long‑term industrial operation.
Installation: Supports 35 mm DIN‑rail mounting for standardized installation in power distribution and control cabinets.Easy installation and removal for convenient maintenance, expansion, and spare parts replacement.Screw terminals ensure secure, reliable wiring and reduce error risks.
Mechanical Dimensions: Length approx. 200 mm, width approx. 100 mm, height approx. 50 mm (subject to original datasheet); net weight approx. 0.5 kg.Compact size saves cabinet space and fits limited installation areas.
Protection Class: IP65.Excellent dustproof and waterproof performance allows direct installation outdoors or in dusty, humid industrial environments without extra protection, complying with industrial electrical safety standards.
1.4 Environmental and Reliability Parameters
Environmental Adaptability:Operating temperature: -20°C to +55°C;Storage temperature: -40°C to +85°C;Relative humidity: 5%–95% (non‑condensing).Suitable for various harsh industrial environments including high/low temperature, dusty, and humid conditions.
Reliability Index:Mean Time Between Failures (MTBF) > 70,000 hours;Design service life ≥ 10 years.Uses high‑quality industrial‑grade components with excellent anti‑fatigue performance for long‑term continuous operation, reducing downtime and maintenance costs.CE and other international certifications comply with global industrial standards.
Vibration and Shock Resistance:Vibration resistance: 10–500 Hz, amplitude 0.35 mm, compliant with IEC 60068‑2‑6;Shock resistance: 10g / 11 ms, compliant with IEC 60068‑2‑27.Withstands production line vibration and transportation shock to ensure stable mechanical structure and performance.
2 Structural and Functional Features
2.1 Structural Design
Highly Integrated Sealed Structure:Highly integrated circuit design combines power conversion, logic control, and protection circuits.Fully sealed enclosure effectively isolates dust, moisture, and corrosive gases, extending service life and improving stability.Compact and lightweight to save installation space.
Industrial‑Grade Protection:Housing made of high‑strength, flame‑retardant industrial material, resistant to mechanical shock and mild corrosion.IP65 rating provides reliable dustproof and waterproof performance for outdoor and harsh industrial environments.
Convenient Wiring and Status Indication:Standard screw terminals for secure, stable connections.Clear terminal labeling reduces wiring errors.Equipped with power, run, and fault LEDs for intuitive status indication and fast troubleshooting.
2.2 Core Functions
Stable Power Supply:Wide voltage input range maintains stable 24V DC output even with AC voltage fluctuations between 150V and 280V.Provides reliable power for gate control units, motors, sensors, actuators, and other automation equipment.
Precise Power Control:Precisely executes power on/off commands from the control system for gate units and excitation auxiliary systems.Supports fine voltage adjustment to meet different load requirements.Can assist in basic excitation current regulation for synchronous generators and motors to ensure stable power system operation.
Multiple Protection and Safety Assurance:Built‑in overload, short circuit, overvoltage, undervoltage, and over‑temperature protection.Fast fault detection and protective actions minimize equipment damage and safety risks.Fault signals can be transmitted to the control system for timely response.
Strong Compatibility and System Integration:Seamless integration with ABB Freelance, AC800M, and other mainstream control systems, as well as third‑party industrial equipment.Multiple communication protocols allow flexible integration into existing systems with minimal modification, reducing cost and lead time.
High Reliability and Easy Maintenance:High‑quality components and precision manufacturing ensure stable performance and long service life.Modular design and simple installation simplify maintenance, expansion, and replacement.Clear status indication enables efficient fault diagnosis and reduces maintenance difficulty.
3 Application Areas
With stable power supply, precise control, strong environmental adaptability, and high reliability, this module is widely used in oil & gas, power, chemical, pharmaceutical, food & beverage, metallurgy, paper, and other industries, for new systems, upgrades, and spare parts replacement:
Oil and Gas Industry: Power control for gate control units in production, transmission, and processing, ensuring safe and orderly operation.
Power Industry: Power control for gate units in power plants and substations.Also used for auxiliary excitation control of synchronous generators and motors to regulate excitation current and ensure power system stability and quality.
Chemical and Pharmaceutical Industry: Power supply and control for gate units and equipment in chemical reaction, separation, refining, pharmaceutical fermentation, purification, and packaging processes to maintain stable production and product quality.
Food & Beverage and Paper Industry: Power control for equipment in mixing, processing, packaging, and pulp and paper production, suitable for hygienic environments and ensuring continuous operation.
General Industry and Infrastructure:Power supply for automated production lines, robotic arms, harbor cranes, mining trucks, and other manufacturing equipment.Also used in building automation, transportation, smart city, and other infrastructure monitoring systems for stable power and control support.
