Help CenterFactory Small Scale Fruit Juice Extraction Extractor Making Machine Juicing Equipment/production Line/filling Packing Machine
Related Products
-
Apple Juice Production Line/fruit Pulp Processing MachineUS$ 79000.00 - 90000.00MOQ: 1 Set -
Fruit Juicer Production Line/apple Juice MachineUS$ 80000.00MOQ: 1 Set
-
Apple Juice Production Line/making Machine/fruit Pulp Processing MachineUS$ 89000.00 - 90000.00MOQ: 1 Set
-
Kiwi Fruit Jam Processing PlantUS$ 30000.00MOQ: 1 Set
-
Industrial Tomato Paste Processing Machine Tomato Sauce Production LineUS$ 39000 - 350000MOQ: 1 Set
1.fruit juice production line
2.stainless steel
3.PLC control
4.high efficiency
Features:

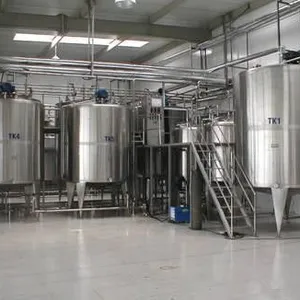

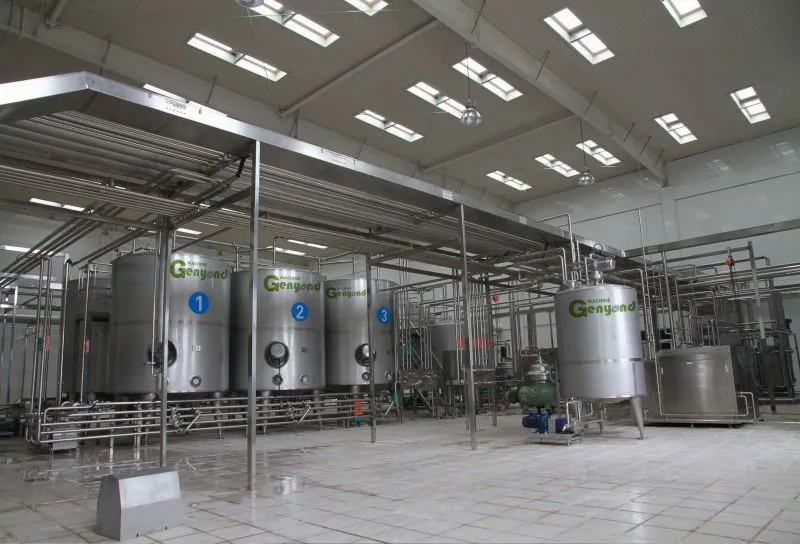

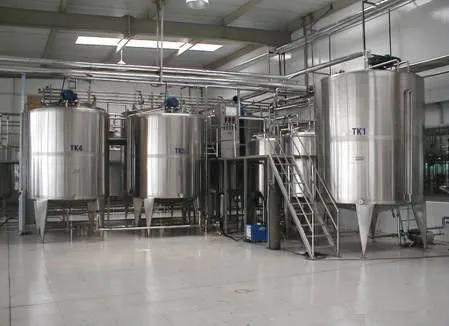

This fruit juice processing plant can be used for making all kinds of fruit juice. All the equipments are made of 304 stainless steel which is durable and clean. All the standard connecting pipes are made of 304 stainless steel, customers can also choose PVC pipes. The whole system is full automatic. There is automatic electric control system. It just needs a few operators to handle the plant.
Main equipments:

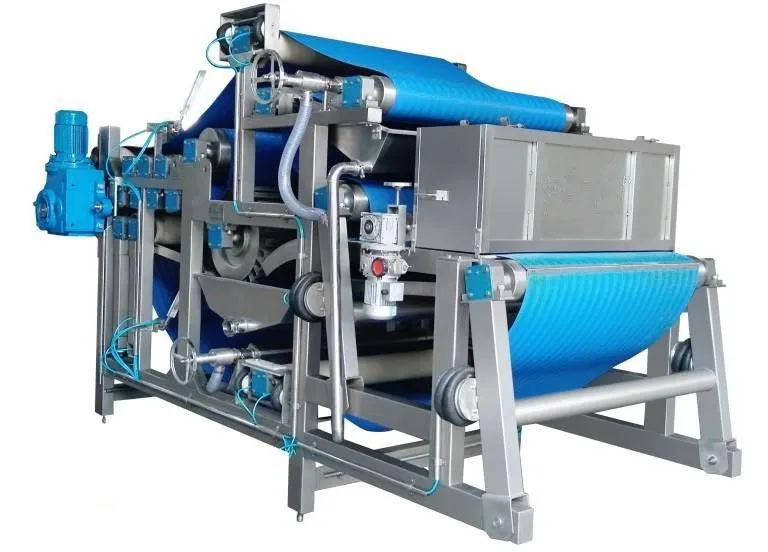

juice extractor, water treatment plant, CIP cleaning system, sterilization machine, mixing tank, filling equipment.
Characteristics:
1. it can carry out washing pulp filling, liquid juice filling and capping in one machine.
2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
|
Main Technical Data: apple juice production line |
||||||||
|
Model |
CGF12125 |
CGF18186 |
CGF24248 |
CGF323210 |
CGF404012 |
CGF505012 |
CGF606015 |
CGF808020 |
|
Number of washing, filling and capping heads |
12-12-5 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-12 |
60-60-15 |
80-80-20 |
|
Production capacity(600ml) (B/H) |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
35000-40000 |
|
suitable bottle specification(mm) |
φ=50-110=170 330-2250ml |
|||||||
|
Washing pressure(kg/cm 2 ) |
2-3 |
|||||||
|
Motor power(kw) |
Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
|
Overall dimensions (mm) |
2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
76800×66400 ×2850 |
|
Weight (kg) |
2500 |
3500 |
4500 |
6500 |
8500 |
9800 |
12800 |
15000 |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
