CAD Drawing Storage Cabinet: What CAD Teams Actually Need
A CAD plot leaves the plotter warm, often still smelling of ink. Someone carries it across the office, lays it on the cabinet, files it. The plot is the deliverable, not the draft. If the file is on the wrong shelf, the wrong revision goes out the door.
The CAD team does not store the digital file. The digital file lives on the server, versioned and locked. What gets stored in the cabinet is the paper trail — the plotted set that went to the client, the marked-up set that came back, the construction set the contractor is working from, the as-built set that closed the project.
A cabinet built for this workflow has to hold both rolled and flat drawings, survive being opened fifteen times a day, and let the team find the right sheet in under ten seconds. This 1300mm wide A0 cabinet does those three things.
Product Specifications

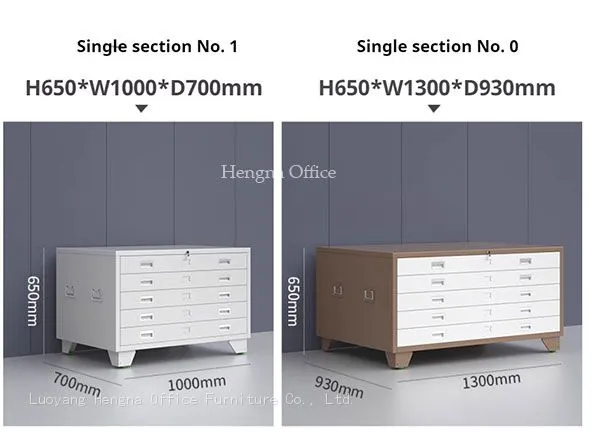

| Specification | Value |
|---|---|
| Product type | CAD drawing storage cabinet, A0, 5 drawer |
| Material | SPCC cold rolled steel |
| Surface finish | Phosphating + electrostatic powder coating, 60-80μm, white |

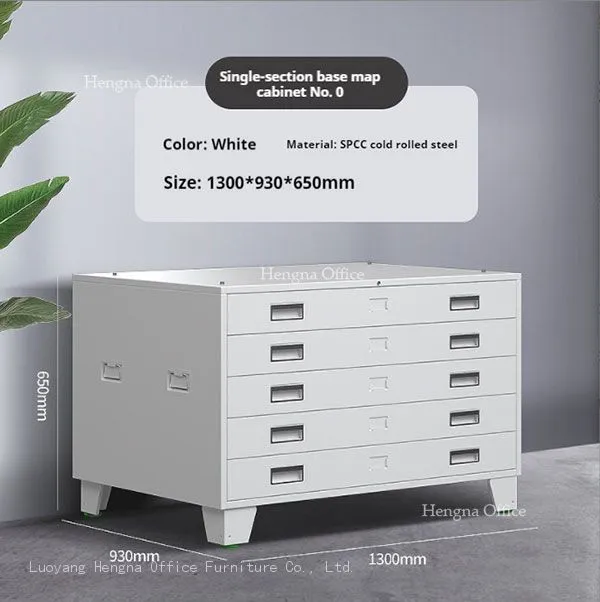

| Overall size (W×D×H) | 1300 × 930 × 650 mm (51.2 × 36.6 × 25.6 in) |
| Drawer internal | 960 mm deep × 75 mm high (37.8 × 3.0 in) usable |
| Drawer count | 5 (stackable to 3 units = 15 drawers) |
| Drawer load | 150 kg (330 lb) per drawer, fully extended |
| Slides | Full extension, anti-tilt lock-open stops |
| Drawer face | Recessed handle, integrated label slot |

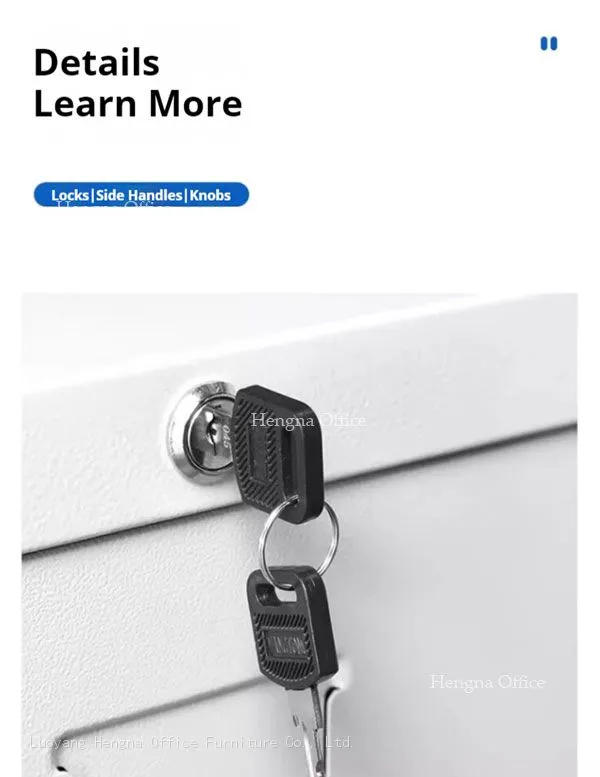

| Lock | Central lock, single key |
| Base | Casters with brakes, 30 mm clearance |
| Net weight (single unit) | ~80 kg (176 lb) |
| Shipping | Fully assembled, wooden crate |
1300mm Wide: Why That Width
The 1300 mm width is not arbitrary. It is set by two physical facts:
An A0 sheet is 1189 mm on the long edge. With the sheet lying flat, the long edge runs along the drawer depth (960 mm) — but the short edge is 841 mm, which is the width dimension
Add 50 mm of clearance on each side and you get 941 mm minimum drawer width
1300 mm gives 230 mm of clearance on each side, so the sheet sits in the middle with space for handling
Most CAD teams filing A1 or A2 plots alongside A0 will appreciate the 1300 mm width. The drawer can hold a stack of A0 sheets, plus a folder of A1 sheets, plus a half-stack of A2 — all in the same drawer, organized by a simple card divider.

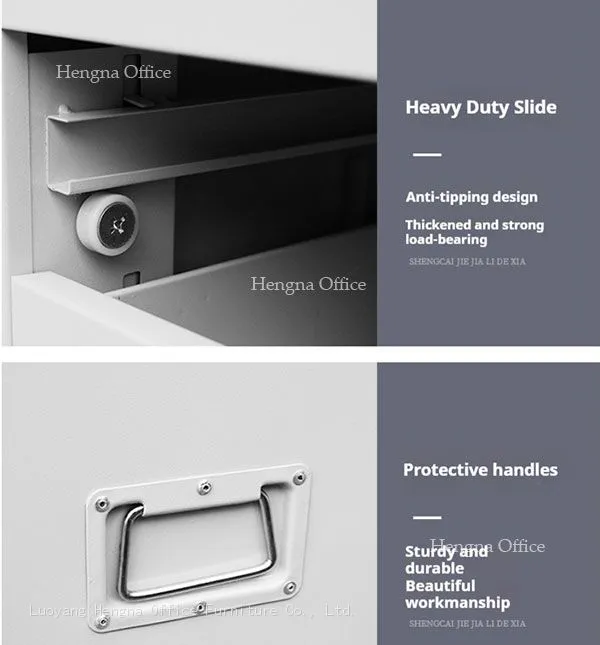

Anti-Tilt Mechanism: What It Actually Does
A full extension drawer pulled all the way out creates a lever arm. Load the back of the drawer with 50 kg of paper, and the front edge of the cabinet wants to lift. On a 5-drawer cabinet, the bottom three drawers are stable, but the top two — pulled all the way out and loaded — can produce visible cabinet tip forward.
The anti-tilt mechanism is built into the slide system. It is not a separate part. Here is how it works mechanically:
The drawer is on full extension ball-bearing slides, 100% travel
A steel stop is welded into each slide rail near the back
When the drawer reaches full extension, a tab on the drawer body hits the stop and locks the drawer in the open position
The drawer cannot roll back on its own — you have to push it back in by hand
To close, lift the front of the drawer slightly (a 2 cm vertical motion unlocks the tab) and push
The benefit is not just that the drawer stays open. The benefit is that the cabinet cannot tip forward, because the slide stop transfers the drawer load directly into the slide rail and into the cabinet frame. The cabinet is engineered so the tipping moment from a fully loaded open drawer is balanced by the cabinet's own weight plus the slide stop.
Full Extension: Access at the Back
CAD cabinets used to be built with 3/4 extension slides. The drawer came out 75% of the way, leaving 25% of the back end inaccessible. You had to reach in from the side, or pull sheets out by the corner.
Full extension is the difference between a cabinet you can use and a cabinet you have to fight with. A CAD plot is large and fragile — pulling it out by a corner is how you dog-ear the edge. With full extension:
The plotter output lands in the back of the drawer, oldest at the front
The CAD technician pulls the front sheet, scans it or files it under the right tab divider
If a 3-year-old sheet is needed for reference, the technician pulls all 100 sheets, reaches the back, finds it, and slides the rest back in — without the drawer rolling closed on its own
This is the workflow 3/4 extension was designed to make difficult. 100% extension was designed to make it possible.
CAD Plot Handling: Rolled vs Flat
A CAD team stores plots in two configurations:
| Format | Storage in cabinet | Capacity per drawer |
|---|---|---|
| Rolled A0 plot | Standing on edge in drawer, 80-100 mm diameter rolls | 18-19 rolls (~150 kg at full load) |
| Flat A0 plot | Lying flat, paper weight 80 gsm | 1,200 sheets (~95 kg) |
| Flat A1 plot | Lying flat, on top of divider card | 2,400 sheets |
| Flat A2 plot | Lying flat, on top of divider card | 4,800 sheets |
The 75 mm drawer height is enough for one layer of flat A0 plots plus a divider card. If a drawer is dedicated to rolled plots, the same 75 mm height holds about 18-19 rolls stacked horizontally.
Most CAD teams run a hybrid — three drawers for active flat sets, two drawers for archived rolled sets. The cabinet does not care which is which. The label slot on the drawer face tells the team which is which.
Label System: How CAD Teams Stay Organized
A CAD team's filing system is a living document. Projects start, end, get archived, get pulled out for warranty work two years later. A cabinet that cannot keep up with that lifecycle becomes a graveyard.
This cabinet's label slot is pressed into the drawer face, 90 mm wide × 25 mm tall. A printed card drops in. A CAD team runs the label system like this:
Drawer 1 — Current project, active revisions
Drawer 2 — Current project, superseded revisions
Drawer 3 — Archive year (e.g., "2024")
Drawer 4 — Archive year (e.g., "2023")
Drawer 5 — As-builts and warranty reference
Cards are printed from the team's project management system. When a project closes, the card moves to the archive drawer. When the cabinet is full, the bottom card is scanned to PDF and the paper is recycled. The slot accepts a new card in seconds.
The label slot is recessed, not glued on. There is no plastic carrier to snap, no adhesive to fail in a hot office, no residue to clean when the slot is reused.
From the Factory
Luoyang, Henan. The cabinet is built in one factory. Sheet metal, welding, phosphating, powder coating, slide assembly, packing — all under one roof, one quality control pass, one bill of materials.
For a CAD team buyer:
Sample order: 1 unit, ships in 7-10 days, ready to use on arrival
Bulk order: 20 units per 20-foot container, 15-20 days production
Warranty: 1 year on slides, lock, and powder coating surface
Customization: Logo print on cabinet side; non-white color (RAL specified, with lead time for custom powder batch)
Documents with shipment: Salt spray test ≥48 hours, factory inspection photos, packing list, commercial invoice
For a CAD team that needs the cabinet to match an office color scheme, custom RAL colors are quoted on request. For a CAD team that just needs a working cabinet, the standard white is in stock and ships fastest.
What CAD Teams Get Wrong
Three patterns that show up in cabinet orders from CAD departments:
1. Buying by drawer count, not by drawer cycle life. A 5-drawer cabinet with 60 kg slides fails at drawer cycle 8,000. A 5-drawer cabinet with 150 kg slides is still going at drawer cycle 50,000. A CAD team opens a drawer 15 times a day = 5,500 cycles a year. The first cabinet is dead in 18 months. The second is on year 9 and counting.
2. Storing flat plots in cabinets with 3/4 extension. The plot at the back is unreachable without a step stool or pulling the entire stack. The team gives up, leaves it in a tube rack, loses the filing system, abandons the cabinet.
3. Skipping the label system. A cabinet with no labels is a cabinet that holds drawings nobody can find. The integrated label slot costs nothing extra. A printed card costs two cents. A team that skips the labels is creating a future problem.
The 150 kg full extension slides and the integrated label slot are not upgrades. They are the difference between a cabinet the team uses and a cabinet the team works around.
Frequently Asked Questions
Q: What is the difference between this cabinet and a vertical file cabinet?
A vertical file cabinet holds letter-size or A4 paper on edge, in a 12-15 inch deep drawer. A CAD drawing storage cabinet is sized for A0 flat storage, with a 37.8 inch (960 mm) deep drawer. A CAD plot will not fit in a vertical cabinet. A vertical cabinet will not hold enough CAD plots to be useful.
Q: Does the cabinet hold rolled CAD plots?
Yes. The drawer is 75 mm tall, which holds about 18-19 rolled A0 plots of 80-100 mm diameter. Or the same drawer can hold 1,200 flat A0 sheets, depending on the team's filing preference.
Q: Can the cabinet be stacked?

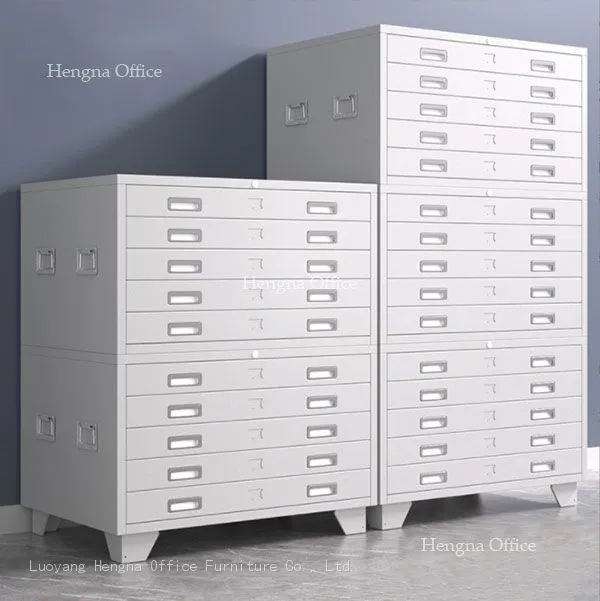

Yes. Up to 3 units stack to 1,750 mm total height, 15 drawers. The stack uses a mechanical interlock between units — no bolts, no tools, no brackets.
Q: What is the anti-tilt mechanism?
A steel stop in each drawer slide that locks the drawer in the fully open position. The drawer cannot roll closed on its own, and the cabinet cannot tip forward from a fully loaded open drawer. To close the drawer, lift the front 2 cm and push back.
Q: What sizes fit in the drawer?
A0, A1, A2, A3, ANSI A, B, C, D, ARCH E (24×36 in), ARCH C, ARCH D, ISO A0/A1/A2/A3 — all fit flat. The full table is in the product specifications section above.
Q: How much does a 5-drawer cabinet hold?
Approximately 1,200 flat A0 sheets per drawer, or 18-19 rolled A0 plots per drawer, or a combination. Total per cabinet: 6,000 flat A0 sheets or 90+ rolled plots, depending on configuration.
Q: Is the cabinet quiet to operate?
Yes. Ball-bearing slides with anti-tilt lock stops. The only sound is the soft click of the lock tab engaging at full extension, and the click of the lock cylinder turning. No metal-on-metal grinding, no squeaking.
Q: Can I get a sample before bulk order?
Yes. 1-unit sample order ships in 7-10 days. Sample cost is refundable against the first bulk order.
