HYDROPA Check Valve ZAH 6-R-P-015
Product Description
The check valve is designed for unidirectional, leak-free shutoff while allowing fluid to flow freely in the opposite direction. The sandwich plate design allows the check valve module to be connected in series with other components of the corresponding nominal size. The closing element is installed in one or two channels, while the remaining channels remain unobstructed. The seat is machined directly into the valve body, and the cone is pressed against the seat by a spring. The opening pressure depends on the preload of the selected spring and the surface area of the cone under pressure. The valve body is phosphated.
| Item | Specification |
|---|---|
| Origin | Germany |
| Sandwich Valve Series | ZAH |
| Valve Type | Check Valve, Type R |
| Installation Circuit | Installed in P line |
| Nominal Size | NG6 |
| Maximum Flow Rate | 50 L/min |
| Maximum Operating Pressure | 350 bar |
| Cracking Pressure | 1.5 bar |
| Working Fluid | Mineral oils (HL, HLP) complying with DIN 51524 |
| Fluid Temperature Range (NBR seal) | -30 ~ +80 ℃ |
| Fluid Temperature Range (FPM seal) | -20 ~ +80 ℃ |
| Viscosity Range | 20 ~ 400 mm²/s |
| Fluid Cleanliness Class | ISO 4406: 21/18/15 |
| Mounting Position | Any orientation |
| Weight | 0.8 kg |
Performance Features
Clamp-type construction, suitable for vertical series systems
Seat-type construction
Single- or dual-channel leak-free shutoff

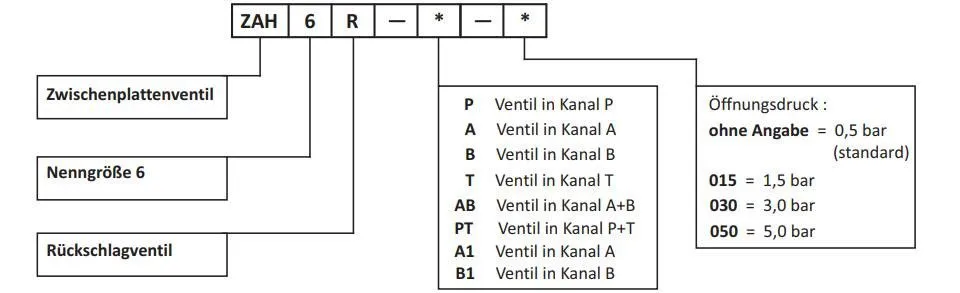

Eight different models

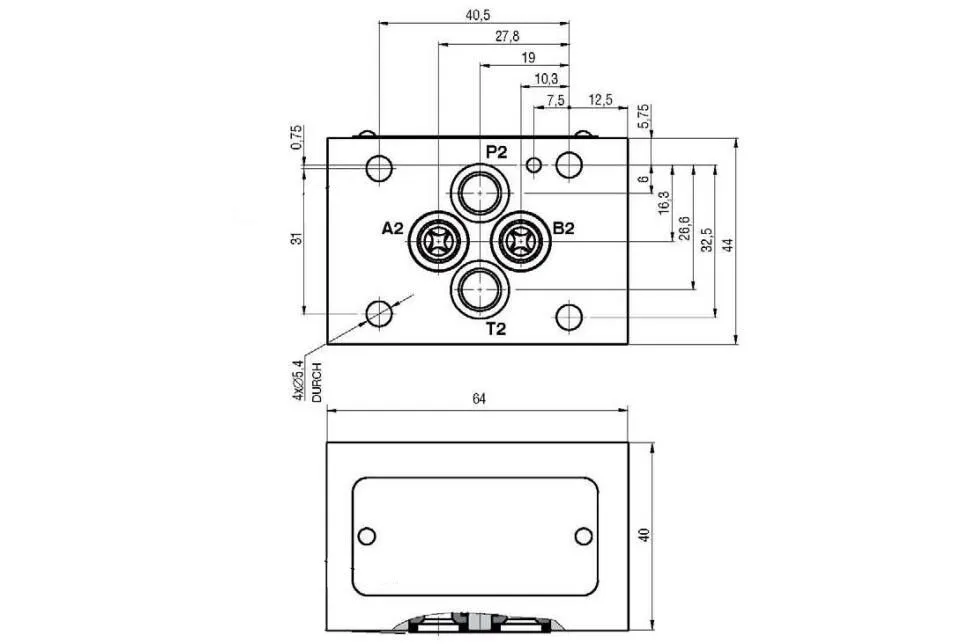

Connection dimensions comply with ISO 4401/DIN 24 340 standards
Optional Features and Accessories
M5 mounting bolts must be ordered separately
Seal kits
Standard NBR 70 square O-rings: 9.25 x 1.68 (4 pieces) Order No.: 28551800
Viton O-rings: 9.25 x 1.78 (4 pcs) Order No.: 28551900

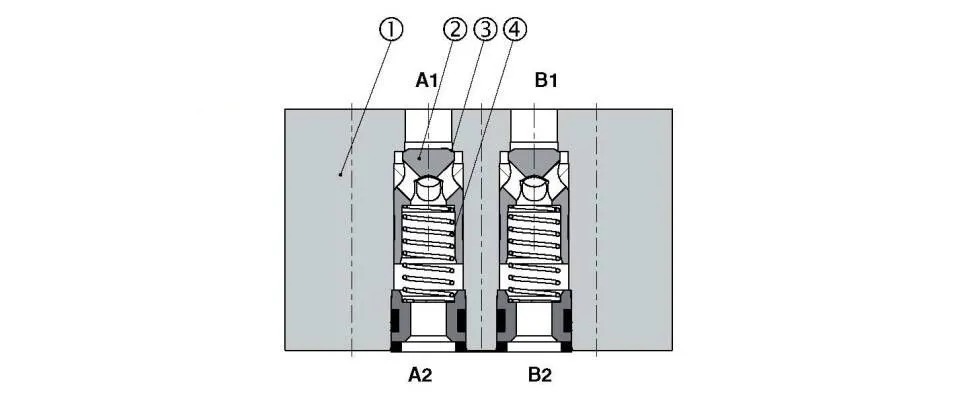

Valve Body (1)
Cone (2)
Valve Seat (3)
Spring (4)
Product Applications
Power generation, coal mining, steel, machine tools, agricultural machinery, automotive manufacturing, machinery manufacturing, petrochemicals, civil construction, metallurgy, etc.
