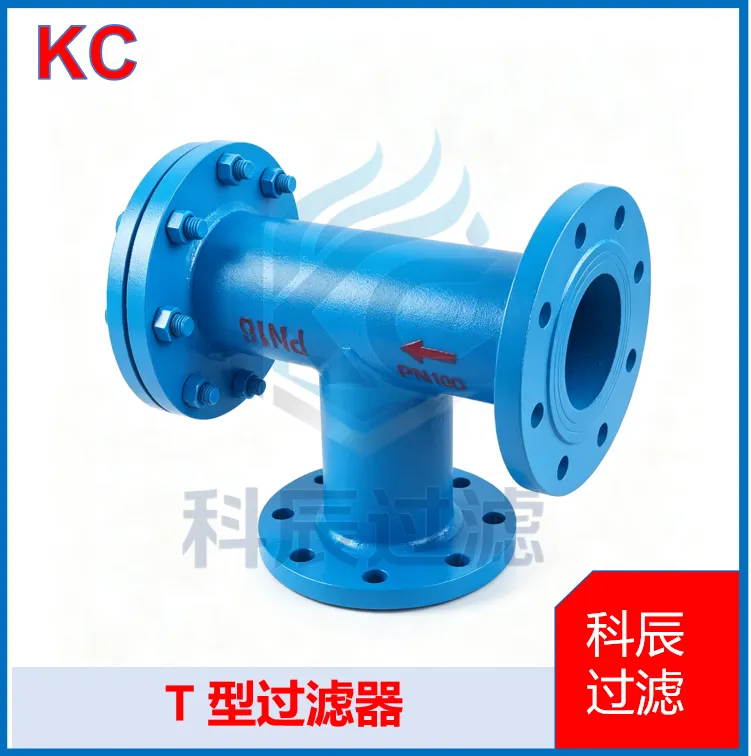

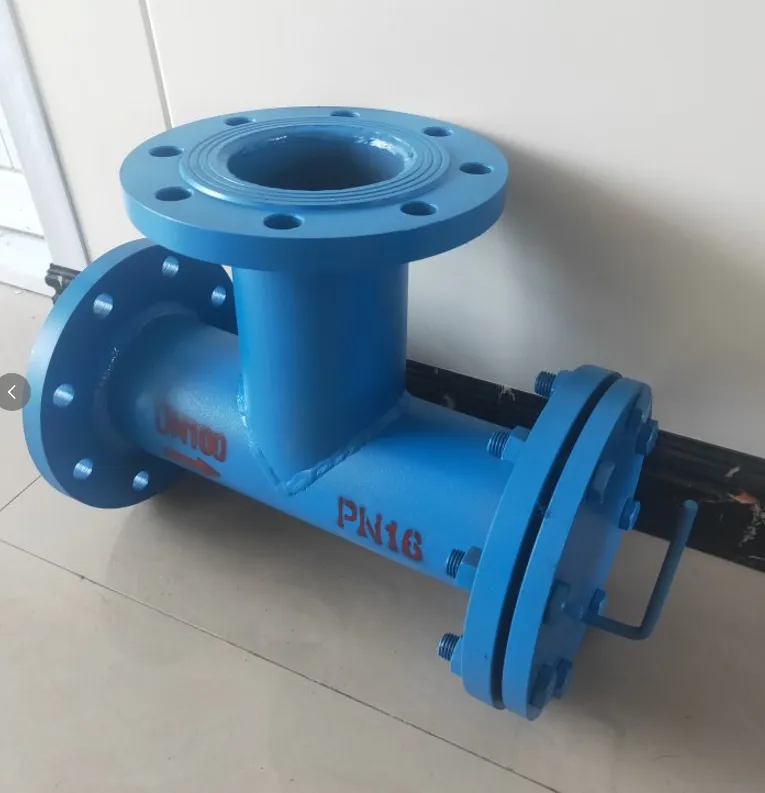

Help CenterT Type Strainer, Pre-filter Equipment for Solid Impurity Removal From Fluid
Product Spotlights
Related Products
-
High Pressure T-type Filter for Solid Impurity Interception in Oil & Gas PipelineUS$ 800 - 1000MOQ: 1 Piece -
Straight Basket Strainer, Pre-filter Equipment for Pump Protection, Industrial Filter for Chemical PipelinesUS$ 800 - 1000MOQ: 1 Piece
-
High-Low Basket Strainer, Filter for Chemical Fluid Pipelines, Pre-filter for Petroleum Process PipelinesUS$ 800 - 1000MOQ: 1 Piece
-
Cyclone Degassing & Dirt Separator, HVAC Pipeline Air and Contaminant Separation EquipmentUS$ 800 - 1000MOQ: 1 Piece
-
Cyclone Sand Separator, Underground Well Water Sediment Separation Equipment, Pipeline Sediment FilterUS$ 800 - 1000MOQ: 1 Piece

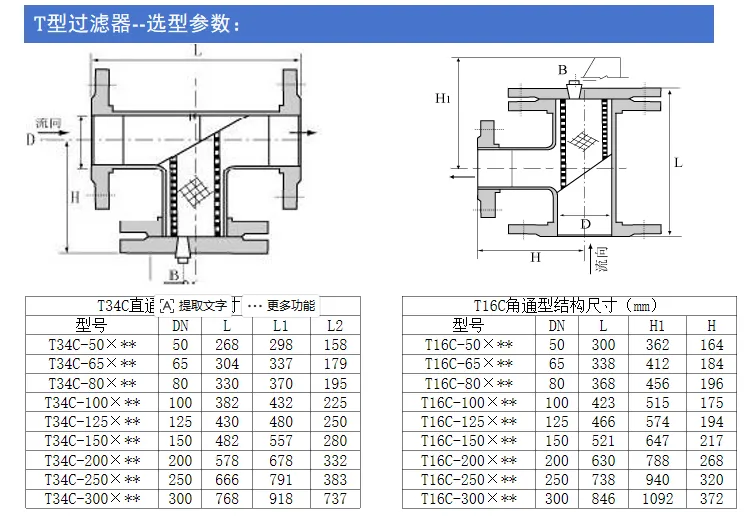

Brand: MT Model: T34C / T16C Working Principle: Screen Interception Function: Liquid Impurity Removal Configuration: Horizontal Inlet and Outlet Material: Cast Iron / Cast Steel / 304 Stainless Steel Connection Type: Flange Working Pressure: ＜4.0 MPa Flow Rate: 2 ~ 400 m³/min Working Temperature: ＜350℃
Design Standards: Design Specification: HG/T21637 Face-to-face Dimension: GB/T12221 Flange Standard: JB/T79 Test and Inspection: JB/T9092
Application Scope:
Slightly corrosive media in chemical and petrochemical industries, such as water, ammonia, oil products and hydrocarbons;
Corrosive media for chemical production, such as caustic soda, soda ash, concentrated & dilute sulfuric acid, carbonic acid, acetic acid and ester acid;
Low-temperature media for refrigeration industry, such as liquid methane, liquid ammonia, liquid oxygen and various refrigerants;
-
Sanitary media for light industry, food and pharmaceutical production, including beer, beverages, dairy products, grain slurry and pharmaceutical materials.
Brief Introduction：

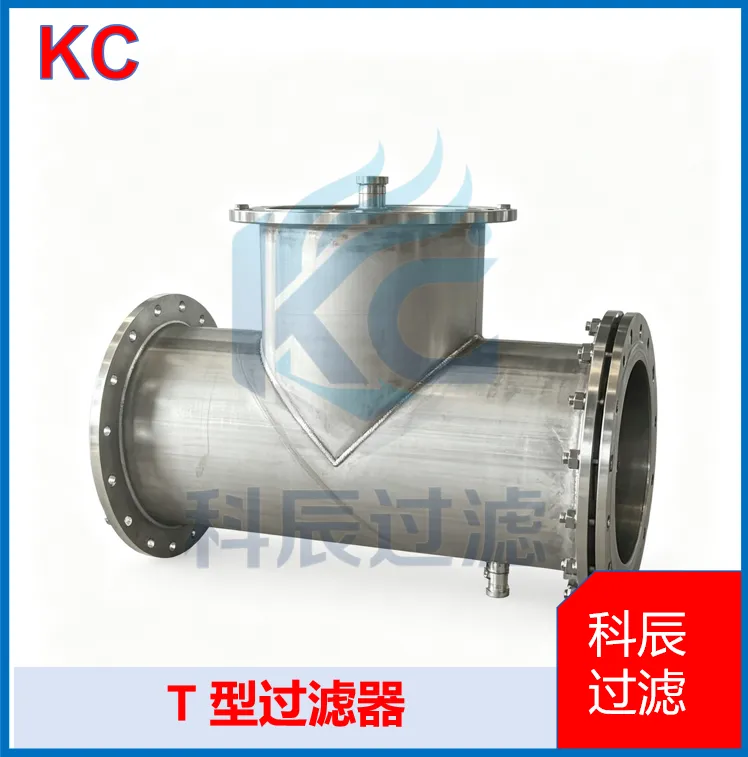

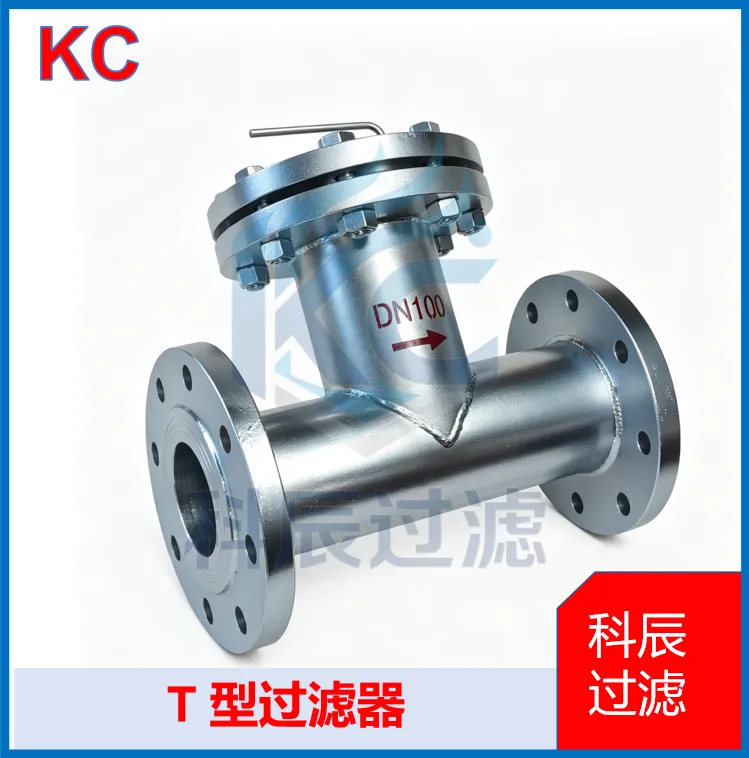

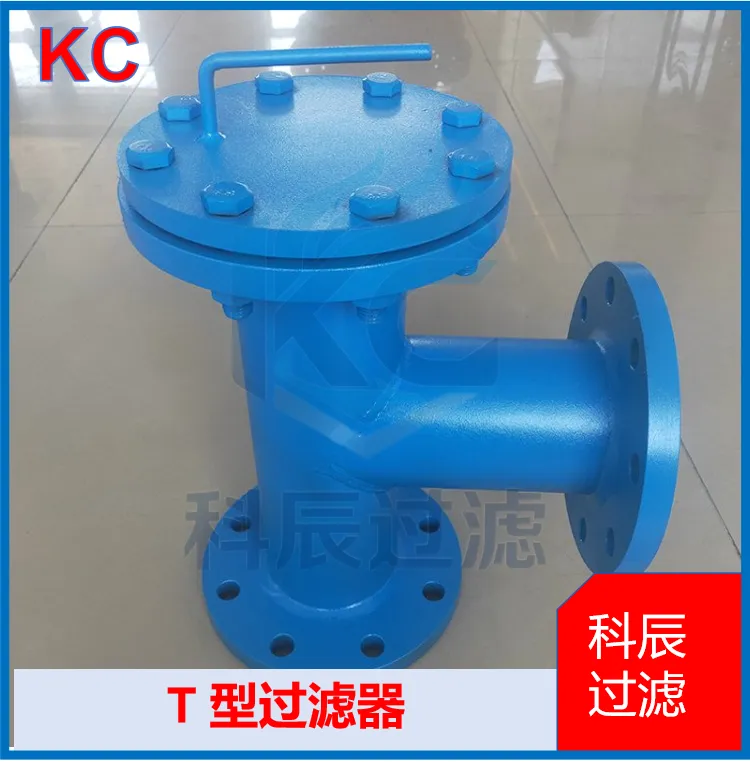

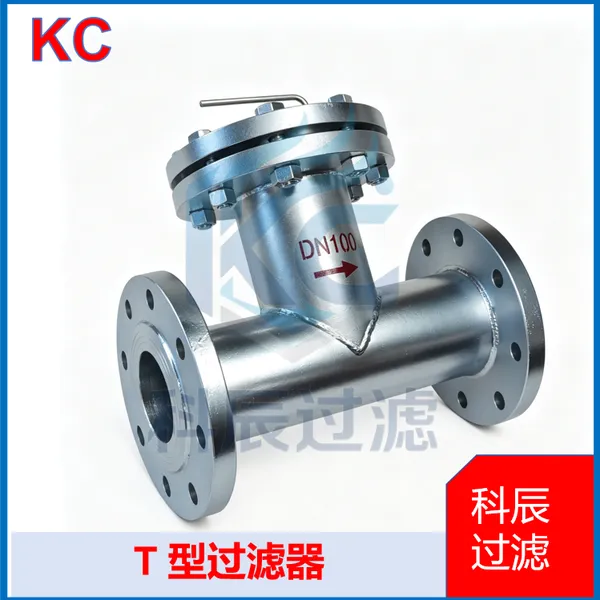

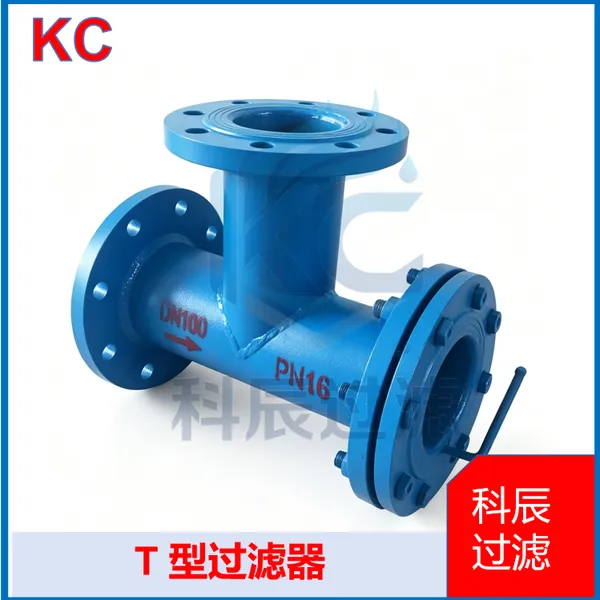

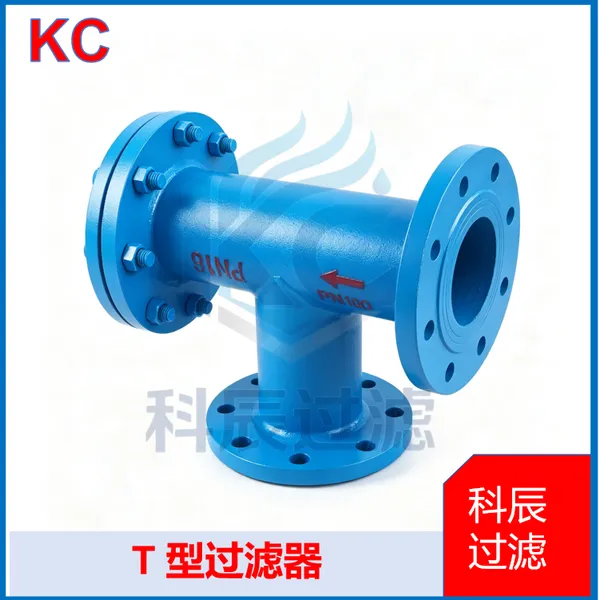

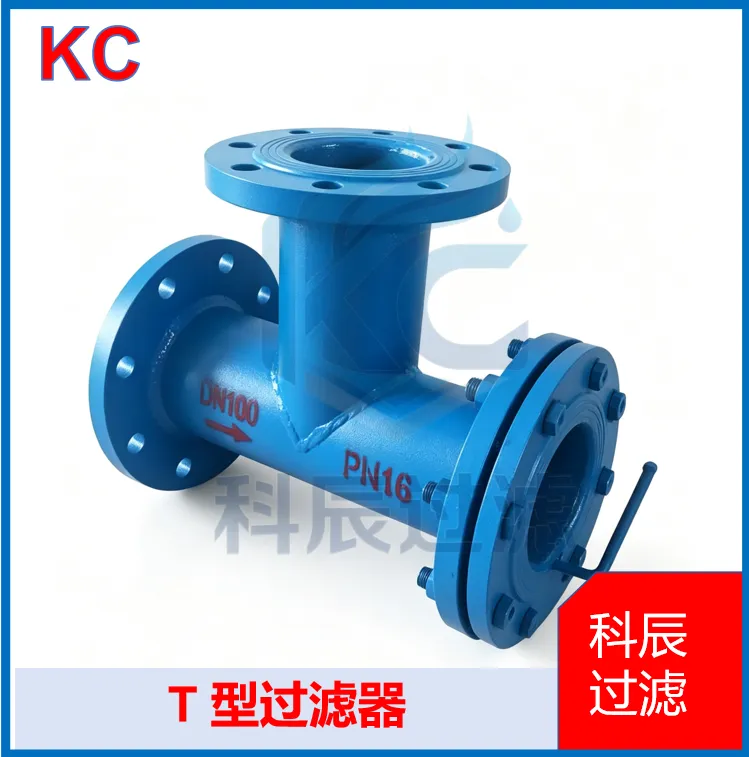

The T-type strainer is equipment for removing solid impurities during liquid transportation in pipelines. It can replace Y-type strainers in many applications and serves as an essential filter to ensure normal operation of pumps, compressors, instruments and other equipment. For cleaning, simply take out the removable filter cartridge, clear trapped impurities, and reinstall it, enabling extremely convenient operation and maintenance.
T-type strainers are usually mounted upstream of matching valves on inlet pipelines. When the medium flows into the strainer, it passes through the filter screen to the connected valves, while impurities are retained inside the filter barrel. This prevents valve malfunction caused by mechanical debris stuck in sealing rings.
Filtration precision: 10–480 mesh (Common specifications: 18–30 mesh/cm² for water service screens; 40–100 mesh/cm² for gas service screens; 100–480 mesh/cm² for oil service screens.) Working temperature: ≤300℃ Nominal diameter: DN25 – DN600 mm Nominal pressure: PN ≤1.6 MPa (Other working pressures can be customized upon request) Flange standard: GB81-59 (Custom flanges available as required) Housing material: A3, 304, 304L, 316, 316L Sealing material: PTFE, NBR, oil-resistant asbestos rubber.
