Welcome to Deqing Leixin Coating Equipment Co., Ltd., a trusted manufacturer established in 2011 with over a decade of expertise in designing and building high-performance powder coating solutions. Our Automotive Parts Powder Coating Line Overhead Conveyor System With Spray Booth Curing Oven is engineered to deliver consistent, high-quality finishes for automotive components, from small brackets to large chassis parts. This integrated system combines an efficient overhead conveyor, a precision spray booth, and a reliable curing oven, providing a seamless production flow that boosts productivity and reduces operating costs. Backed by our ISO9001-certified quality management system, every line is built to meet the rigorous demands of the automotive industry, ensuring durable, corrosion-resistant coatings that enhance part longevity and appearance.
Our system is designed for maximum efficiency and flexibility. The overhead conveyor allows for continuous movement of parts through the powder coating process, minimizing manual handling and maximizing throughput. The spray booth features advanced powder recovery and filtration, while the curing oven provides uniform heat distribution for optimal curing. Whether you are coating engine components, suspension parts, or body panels, this line offers a tailored solution that adapts to your specific production requirements.
Key Features & Technical Specifications
Overhead Conveyor System: Continuous chain-driven conveyor with adjustable speed (0.5–5 m/min), allowing precise control over coating dwell time. Supports loads up to 200 kg per hanger.

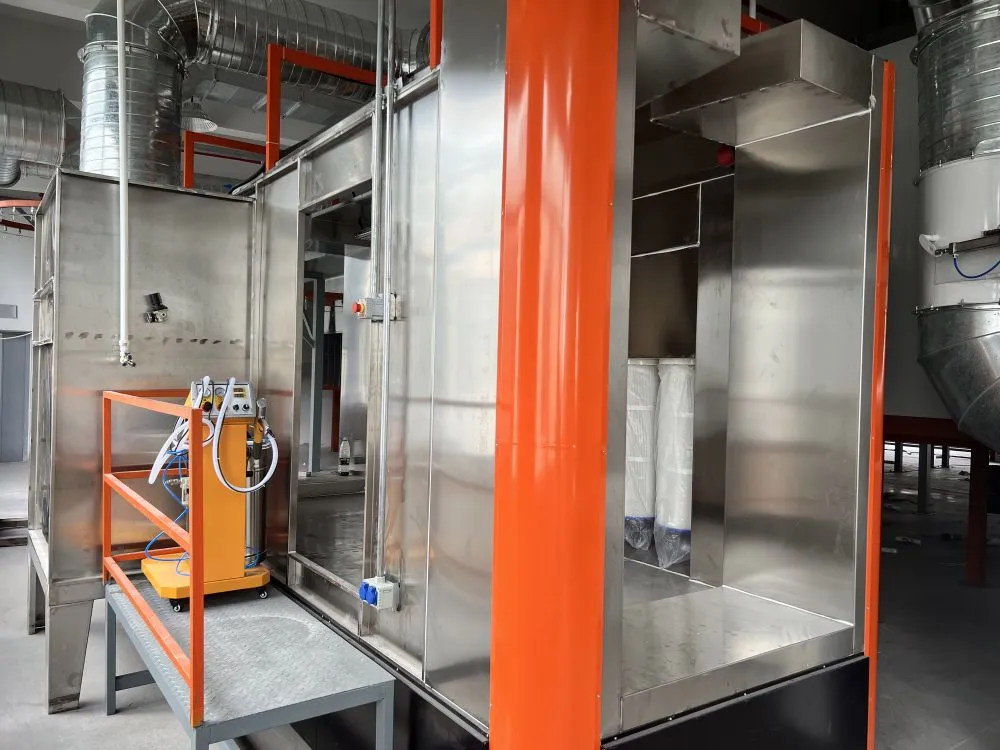

Spray Booth: Modular design with stainless steel interior for easy cleaning. Equipped with cyclone and cartridge filtration for powder recovery efficiency >95%. Optional automatic gun reciprocators for uniform coating.
Curing Oven: Gas-fired or electric heating options with multi-zone temperature control (100–250°C). Uniform air circulation ensures ±5°C temperature consistency across the chamber.
Control System: PLC-based touchscreen interface for real-time monitoring and parameter adjustment. Supports recipe storage for different part types.
Material Handling: Custom hangers and fixtures designed for automotive parts, minimizing shadow effects and maximizing coverage.
Safety Features: Emergency stop, flame detection, and over-temperature protection as standard.
Technical Parameters (Example Configuration)
| Parameter | Specification |
|---|---|
| Conveyor Length | 20–100 m (customizable) |
| Spray Booth Dimensions | 3 m (L) x 2 m (W) x 2.5 m (H) (adjustable) |
| Curing Oven Chamber | 10 m (L) x 2.5 m (W) x 2 m (H) (modular) |
| Heating Source | Natural gas / LPG / Electric (optional) |
| Powder Recovery Efficiency | >95% |
| Temperature Control | PID with ±5°C accuracy |
| Power Supply | 380V / 50Hz, 3-phase (customizable) |
| Certification | ISO9001:2015 |
Advantages & Customer Benefits
Enhanced Productivity: The continuous overhead conveyor eliminates batch handling delays, allowing for 24/7 operation if needed. Typical throughput can reach 300–500 parts per hour depending on size and coating requirements.
Superior Coating Quality: Uniform powder application and precise temperature control in the curing oven ensure a smooth, durable finish that meets automotive standards for adhesion, hardness, and corrosion resistance.
Cost Savings: High powder recovery efficiency (>95%) reduces material waste. Energy-efficient oven design with insulated panels cuts utility costs by up to 20% compared to conventional systems.
Flexibility: Modular design allows easy expansion or reconfiguration. The system can handle a wide range of part sizes and geometries with quick changeover between colors or powder types.
Easy Maintenance: Access doors and removable panels in the spray booth and oven simplify cleaning and routine maintenance. The PLC control system provides diagnostic alerts to minimize downtime.
Environmental Compliance: Closed-loop powder recovery and integrated filtration ensure minimal emissions, helping you meet local environmental regulations.
Why Choose Deqing Leixin?
With over a decade of experience since 2011, Deqing Leixin Coating Equipment Co., Ltd. has supplied powder coating lines to more than 20 countries across North America, Europe, Asia, and Africa. Our factory covers 1,000–3,000 square meters, staffed by 51–100 skilled professionals. We export annually US$1–1.5 million worth of equipment, demonstrating our commitment to quality and customer satisfaction. Our ISO9001 certification reflects our rigorous quality control processes, from design to delivery. We offer comprehensive after-sales support, including installation guidance, training, and spare parts supply. Our main ports of shipment are Ningbo and Shanghai, ensuring efficient logistics to global destinations.
We understand that every automotive coating project is unique. That’s why we provide customized solutions tailored to your part dimensions, production volume, and budget. Our engineering team works closely with you to design the optimal layout and configuration. We also offer optional features such as automatic gun reciprocators, quick-color-change systems, and data logging for process traceability.
Don’t settle for less when it comes to coating your automotive parts. Invest in a reliable, high-performance powder coating line from Deqing Leixin. Contact us today to discuss your requirements and receive a detailed proposal. Let us help you achieve a flawless finish that meets the highest industry standards.
Frequently Asked Questions (FAQ)
Q: What types of automotive parts can be coated with this line?
A: This system is suitable for a wide variety of automotive parts, including engine components, suspension parts, brake calipers, brackets, chassis parts, and body panels. Custom hangers can be designed for complex geometries.Q: What is the maximum part weight the conveyor can handle?
A: The standard overhead conveyor supports loads up to 200 kg per hanger. For heavier parts, we can design a reinforced conveyor system upon request.Q: How long does it take to cure the powder coating?
A: Curing time typically ranges from 10 to 20 minutes, depending on the powder type and the thickness of the coating. The oven temperature is adjustable between 100°C and 250°C to achieve optimal curing.Q: Can I use this line for both small and large production runs?
A: Yes. The modular design and adjustable conveyor speed allow efficient operation for both low-volume and high-volume production. The system can be scaled by adding more spray booths or oven sections.Q: Is the spray booth suitable for different powder colors?
A: Yes, the spray booth is designed for easy color change. With optional quick-color-change systems and dedicated powder recovery, you can switch colors in under 30 minutes.Q: What safety features are included?
A: The system includes emergency stop buttons, flame detection sensors, over-temperature protection, and fire suppression ports (optional). All electrical components comply with international safety standards.Q: Do you provide installation and training?
A: Yes, we offer on-site installation supervision and operator training for your team. Detailed manuals and video guides are also provided. Remote technical support is available 24/7.Q: What is the warranty period?
A: We offer a standard 12-month warranty on all mechanical and electrical components. Extended warranty options are available. Spare parts are readily available for quick delivery.
