Help CenterMovable Circulating Oil Purifier for On-site Construction
Product Spotlights
Related Products
-
Portable Vacuum Oil Purifier | Oil Water SeparatorUS$ 800 - 1000MOQ: 1 Piece -
High Precision Coalescence Separation Vacuum Oil PurifierUS$ 800 - 1000MOQ: 1 Piece
-
Box-type High Precision Oil Purifier for Hydraulic OilUS$ 800 - 1000MOQ: 1 Piece
-
Large Flow High Viscosity Oil Purifier for Waste Oil RegenerationUS$ 800 - 1000MOQ: 1 Piece
-
High Solid Content Oil Purifier for Metallurgical Rolling OilUS$ 800 - 1000MOQ: 1 Piece

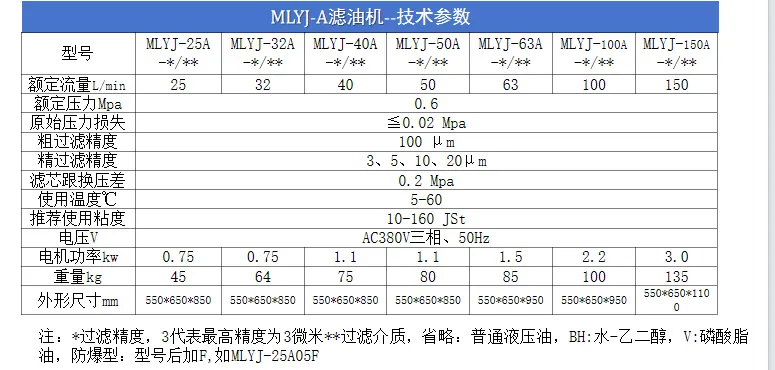

Brand: MT
Model: MLYJ-A
Working Principle: Interception & Adsorption
Function: Removal of Impurities from Oil Liquid
Structure Type: Trolley Type
Design Pressure: ≤0.6 MPa
Filter Element Material: Glass Fiber
Main Material: Carbon Steel with Plastic Coating
Design Standard: GB/T 26114-2010 General Technical Specification for Liquid Filters
Filter Element Standard: GB/T 14041.1/2/3-2007 Test Method for Structural Integrity of Filter Elements
Noise Test Standard: GB/T 4214.1-2000 Noise Test Method
Application Scope: Filtration during oil filling of hydraulic lubrication systems; Bypass filtration during the operation of hydraulic lubrication systems; Circulation filtration before commissioning of hydraulic lubrication systems; Connect to hydraulic lubrication systems to fully improve the cleanliness of the system.
Working Principle：
This oil purifier is equipped with a motor-driven special gear pump featuring low noise, strong self-priming capacity and stable operation.
A coarse filter installed upstream of the pump prevents pump jamming during oil suction and extends the service life of the main filter. An overflow protection device is arranged on the high-pressure pipeline after the pump to effectively guarantee the safety of the hydraulic system. A thermal relay is adopted to protect the motor from damage caused by overload.

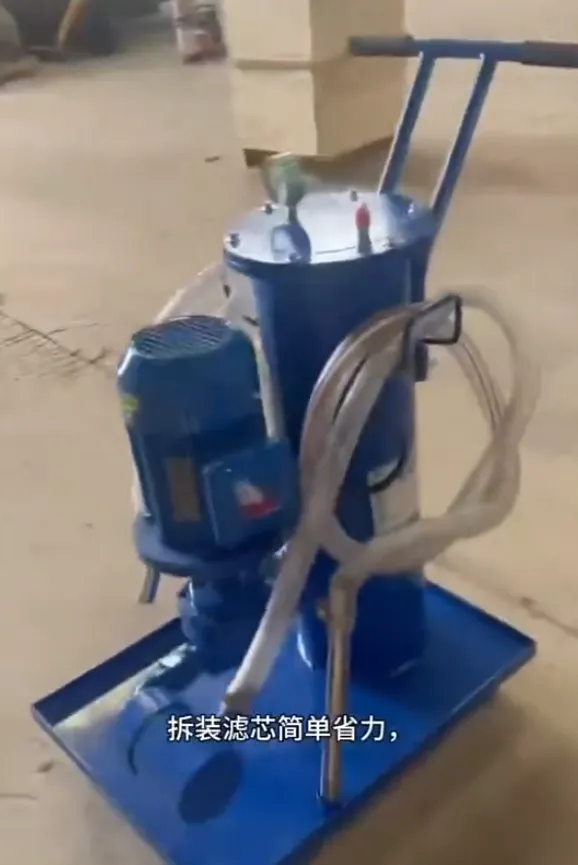

The filter housing adopts a quick-open structure. The top cover can be opened rapidly without any tools for convenient filter element replacement. A pressure gauge is mounted on the panel to continuously indicate the operating status of the system and the contamination level of the filter element during operation.
Fine filter elements with different precision grades are optional to meet various customer requirements and achieve target purification effects.
