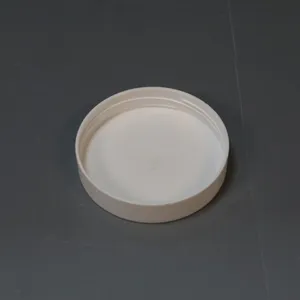

Industrial Plastic Wide-Mouth Jar With Screw Cap Mold: IATF 16949 Certified Tooling and CMM Verification for SE Asian Supply Chains
Product Spotlights
IATF 16949 certified injection mold for industrial wide-mouth plastic jars with screw caps. CMM-verified precision ensures ±0.01 mm tolerance, extended tool life up to 1M cycles, and customizable cavity/thread design. Ideal for Southeast Asian supply chains with fast lead times and after-sales support.
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Injection Mold for Plastic Jars
Material:
Tool Steel (e.g., P20, H13, S136, customizable)
Cavity Count:
Customizable (e.g., 1, 2, 4, 8 cavities)
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangsu，changzhou
Delivery Detail:
30 days
Related Products
-
Heavy-Duty Plastic Wide-Mouth Jar With Screw Cap Mold: Mold Protection and CMM Inspected Tooling for SE Asian Container MarketsNegotiableMOQ: 5000 Pieces -
Custom Plastic Wide-Mouth Jar With Screw Cap Mold: Chemical Resistant Tooling via Robotic Arm Mass Production for SE Asia MarketsNegotiableMOQ: 5000 Pieces
-
Precision Injection Mold for OEM Plastic Wide-Mouth Jar With Screw Cap, Changzhou Factory, Mold Protection SystemNegotiableMOQ: 5000 Pieces
-
Heavy-Duty Custom Mold Tooling for Plastic Wide-Mouth Jar With Screw Cap, IATF 16949, CMM InspectedNegotiableMOQ: 5000 Pieces
-
Changzhou Source Mold Factory: OEM Plastic Wide-Mouth Jar With Screw Cap Mold, Heavy-Duty Custom ToolingNegotiableMOQ: 5000 Pieces
Type
Injection Mold for Plastic Jars
Material
Tool Steel (e.g., P20, H13, S136, customizable)
Cavity Count
Customizable (e.g., 1, 2, 4, 8 cavities)
Application
Industrial plastic wide-mouth jars with screw caps
Certification
IATF 16949, CMM Verification
Mold Base
Standard or custom mold base (optional)
Cooling System
Conformal or standard cooling channels
Surface Finish
SPI A1 to SPI C3 (optional)
Lead Time
30–60 days (depending on complexity)
Port of Shipment
Jiangsu, Shanghai, Shenzhen
Changzhou Hongxinyutai Precision Mold Co., Ltd. has been a dedicated manufacturer of high-precision injection molds since 2017. With a factory spanning 1,000–3,000 square meters and a skilled team of 51–100 employees, we specialize in delivering IATF 16949 certified tooling for the packaging industry. Our Industrial Plastic Wide-Mouth Jar with Screw Cap Mold is engineered to meet the rigorous demands of Southeast Asian supply chains, combining advanced CMM verification with proven manufacturing expertise. This mold offers consistent dimensional accuracy, long tool life, and seamless integration into your production line, making it a reliable choice for high-volume jar and cap production.
Designed for industrial plastic jars commonly used in food, chemical, and pharmaceutical packaging, our mold delivers precise threading and an airtight seal. The wide-mouth design facilitates easy filling and cleaning, while the screw cap ensures secure closure. Below, we detail the key features, technical specifications, and benefits that set this tooling apart.
Key Features
- IATF 16949 Certification: Our tooling adheres to the stringent automotive quality management standard, ensuring consistent process control and traceability.
- CMM (Coordinate Measuring Machine) Verification: Every critical dimension is inspected and recorded, guaranteeing that cavity, core, and thread alignment meet the tightest tolerances (±0.01 mm).
- Premium Mold Steel Options: Choose from P20, H13, S136, or other materials based on your production volume and resin type. Hardness up to 48–52 HRC for extended wear resistance.
- Flexible Cavity Configuration: Single, multi-cavity (2, 4, 8, or more) to match your output requirements. Hot runner or cold runner systems available.
- Efficient Cooling System: Conformal cooling channels optimize cycle time and reduce warpage, improving part quality and productivity.
- Customizable Surface Finish: SPI A1 (high gloss) to C3 (textured) to meet your product appearance and release requirements.
- Robust Screw Cap Thread Design: Engineered for reliable unscrewing or collapsible core mechanisms, ensuring smooth cap ejection without damage.
- Proven for Southeast Asian Supply Chains: Our molds are exported to over 10 countries in the region, with fast lead times and responsive after-sales support.
Technical Specifications
| Parameter | Description / Range |
|---|---|
| Mold Type | Two-plate, three-plate, or hot runner (customizable) |
| Cavity & Core Material | P20, H13, S136, 420SS, or equivalent (optional) |
| Mold Base Standard | DME, HASCO, LKM, or custom |
| Injection Machine Tie Bar Distance | Customized based on your machine specifications |
| Max. Mold Weight | Up to 5,000 kg (depending on size) |
| Cycle Time Estimation | 8–25 seconds (based on material, wall thickness, and cooling) |
| Warranty | 1 year against defects in materials and workmanship |
Benefits for Your Business
- Reduced Time-to-Market: Our experienced team can complete mold design and manufacturing in 30–60 days, with expedited options available.
- Consistent Part Quality: CMM inspection reports accompany every mold, ensuring that the first shot and every subsequent shot meet your specifications.
- Lower Total Cost of Ownership: Premium materials and precise heat treatment extend mold life to 500,000–1,000,000 cycles before major maintenance.
- Seamless Supply Chain Integration: We ship from Jiangsu, Shanghai, or Shenzhen ports with full documentation, and our after-sales engineers provide remote or on-site support within Southeast Asia.
- Flexibility for Customization: Whether you need a specific thread profile, undercut, or labeling surface, we can incorporate your design requirements.
Trusted by Clients Across Southeast Asia: Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has served over 200 packaging customers worldwide. Our 1,000–3,000 m² factory houses state-of-the-art CNC machining centers, EDM, and CMM equipment. With a team of 51–100 skilled professionals, we are committed to delivering molds that meet the TS16969 (IATF 16949 equivalent) quality system. Our main markets include North America, South America, Europe, and particularly Southeast Asia, where we have established a robust logistics network. We invite you to contact us for a quotation or technical consultation. Let us partner with you to optimize your plastic jar production.
Frequently Asked Questions
-
Q: What is the typical lead time for this mold?
A: Standard lead time is 30–60 days, depending on cavity count, complexity, and current workload. Rush orders can be discussed. -
Q: Can I request a specific mold steel grade?
A: Yes, we offer P20, H13, S136, 420SS, and other grades. Please specify your resin type and expected production volume for our recommendation. -
Q: Do you provide samples before mass production?
A: Absolutely. We can arrange trial shots and send you molded samples for approval. CMM inspection reports are included. -
Q: Is the mold compatible with my injection molding machine?
A: We design the mold base and mounting dimensions based on your machine specifications. Please provide the machine tie bar distance, nozzle type, and locating ring size. -
Q: What warranty do you offer?
A: We provide a 1-year warranty covering manufacturing defects. Extended warranty and maintenance contracts are available upon request. -
Q: How do you ensure the mold fits Southeast Asian supply chain requirements?
A: We have experience shipping to multiple Southeast Asian countries and can provide necessary documentation, including certificates of origin, packing lists, and IATF 16949 quality records. -
Q: Can you customize the thread design for tamper-evident caps?
A: Yes, we can design custom threads, bayonet rings, or other closures. Our engineering team will work with your specifications. -
Q: What is the minimum order quantity (MOQ)?
A: We accept single mold orders. For multi-cavity molds, MOQ is 1 set. For spare parts, MOQ may vary. Please contact us for details.
Note: All specifications are subject to customization. Contact our sales team for a tailored solution. Changzhou Hongxinyutai Precision Mold Co., Ltd. – Your reliable partner for precision injection molds.
