As a leading manufacturer based in Tianjin, China, Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd. specializes in advanced seawater electrolysis systems designed for marine and offshore applications. Our PPE/CTE/MES Hall Available Seawater Electrolysis Chlorination System provides a reliable, on-site solution for chlorine generation using abundant seawater. This system eliminates the need for hazardous chemical storage, offering a safe and cost-effective method for biofouling control, disinfection, and ballast water treatment. With years of engineering expertise, we deliver robust systems that meet the demanding requirements of the marine industry.
The electrolysis chlorination process works by passing a controlled electrical current through seawater, producing sodium hypochlorite (NaOCl) directly from the chloride ions present. This method is highly efficient, scalable, and environmentally friendly. Our systems are available in three series—PPE, CTE, and MES—each tailored to specific vessel sizes, power configurations, and chlorine demand. Whether you operate a large cargo ship, a luxury yacht, or an offshore platform, we have a solution that fits your needs.
Key Features & Technical Specifications
Direct Seawater Feed: No need for brine preparation or chemical additives. The system uses filtered seawater directly, reducing operational complexity.

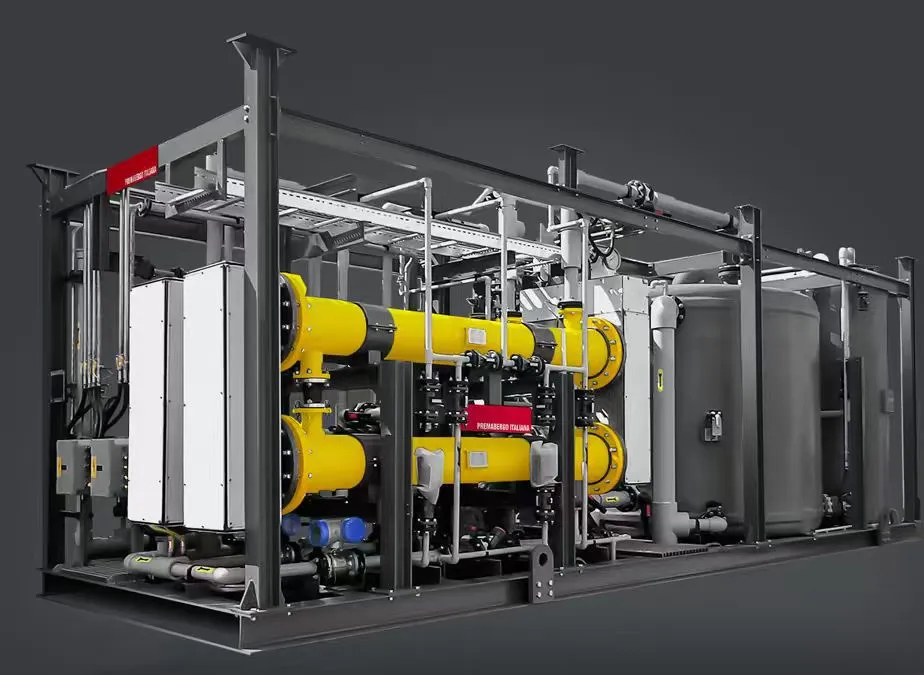

Modular Design: Available in skid-mounted or containerized configurations for easy installation and maintenance. The compact footprint saves valuable deck space.
High-Efficiency Electrodes: Titanium-based anodes coated with mixed metal oxides (MMO) ensure long service life and consistent chlorine output.
Intelligent Control: PLC-based control with HMI touchscreen allows real-time monitoring of chlorine production, flow rate, salinity, and power consumption. Automatic adjustment maintains optimal performance.
Low Maintenance: Self-cleaning electrode design and automatic acid washing (optional) reduce manual intervention. Only periodic inspection of filters and seals is required.
Versatile Output: Chlorine production capacity can be customized from 0.5 kg/h to 50 kg/h or more, depending on vessel requirements.
| Parameter | Specification |
|---|---|
| Model Series | PPE, CTE, MES |
| Chlorine Production Rate | 0.5 – 50 kg/h (customizable) |
| Power Supply | AC 380V/440V/690V, 50/60Hz, 3-phase |
| Seawater Flow Rate | 10–200 m³/h (depending on capacity) |
| Operating Temperature | 5–40°C |
| Salinity Range | 15–35 PSU |
| Control System | PLC + HMI (touchscreen) |
| Material of Construction | Titanium electrodes, UPVC/PVDF piping, FRP tank |
| Dimensions (L×W×H) | Custom per order |
Core Benefits for Your Marine Operations
Enhanced Safety: Eliminates the risks associated with transporting, storing, and handling chlorine gas or hypochlorite chemicals. The system generates chlorine on-demand in a safe, low-concentration solution.
Cost Savings: Reduces recurring chemical procurement costs and logistics. Seawater is free and abundant, lowering operational expenses over the vessel's lifetime.
Regulatory Compliance: Helps meet IMO Ballast Water Management Convention (D-2 standard) and other marine discharge regulations. The system effectively controls marine biofouling in cooling water pipes, fire mains, and sanitary systems.
Reliable Performance: Designed for continuous 24/7 operation in harsh marine environments. Corrosion-resistant materials and redundant components ensure high uptime.
Easy Integration: Can be retrofitted into existing seawater pipelines or incorporated into newbuilding designs. Our engineering team provides full technical support for installation and commissioning.
Eco-Friendly: The only byproduct is hydrogen gas, which is safely vented. No residual toxic chemicals are discharged into the ocean.
Tianjin ZhuoLiNeng Technology Co., Ltd. has been serving global markets including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. With our factory located in Tianjin, China, we offer competitive pricing, fast delivery, and comprehensive after-sales service. Our systems are manufactured under strict quality control and have been successfully deployed on hundreds of vessels worldwide. We invite you to contact us for a customized proposal, technical datasheet, or quotation. Let ZLN be your trusted partner in marine electrolysis chlorination solutions.
Frequently Asked Questions (FAQ)
Q: What is the difference between PPE, CTE, and MES series?
A: The PPE series is designed for small to medium vessels with lower chlorine demand (0.5–5 kg/h). The CTE series offers medium capacity (5–20 kg/h) with enhanced automation. The MES series is a modular, high-capacity system (20–50+ kg/h) suited for large ships and offshore platforms. All are customizable.Q: Can the system operate in low-salinity water?
A: Yes, the system is optimized for seawater salinity between 15–35 PSU. For brackish water with lower salinity, we can adjust the electrode configuration and power settings—please consult our technical team.Q: What maintenance is required?
A: Routine maintenance includes cleaning the seawater inlet filter (weekly), checking electrode scaling (monthly), and inspecting the hydrogen vent system. The system includes an optional automatic acid-washing cycle to remove calcium deposits.Q: How long do the electrodes last?
A: With proper operation, the titanium MMO-coated electrodes typically last 3–5 years, depending on water quality and usage. Replacement electrodes are available from our stock.Q: Do you provide installation supervision and training?
A: Yes, we offer on-site supervision for installation and commissioning, as well as remote technical support. Training for the crew’s operation and maintenance can be arranged.Q: What certifications do your systems have?
A: Our systems comply with international marine standards. Specific certifications such as CCS, DNV, BV, or ABS can be provided upon request. Please specify your requirements when ordering.Q: Can the system be integrated with existing ballast water treatment systems?
A: Absolutely. Our electrolysis chlorination system can serve as a standalone hypochlorite generator or be integrated into UV, filtration, or other treatment systems. We provide custom engineering for seamless integration.Q: What is the typical delivery time?
A: Standard models are delivered within 30–45 days after order confirmation. Customized systems may require 60–90 days depending on complexity. We offer expedited shipping for urgent orders.
With a strong track record in supplying marine equipment to diverse global markets, Tianjin ZhuoLiNeng Technology Co., Ltd. is your reliable partner for seawater electrolysis chlorination systems. Our products are exported from Tianjin port to clients across North America, South America, Europe, Asia, Africa, Oceania, and the Middle East. We are committed to delivering high-quality, durable, and cost-effective solutions. Contact us today to discuss your vessel’s requirements and receive a tailored quote.
