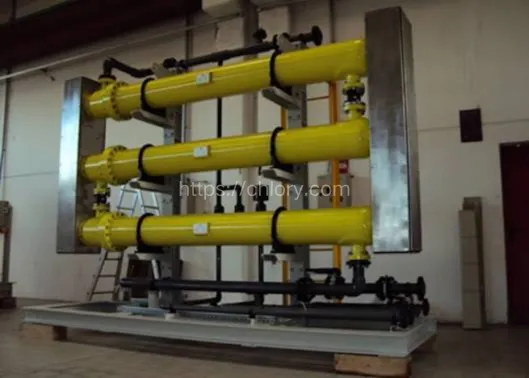

Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd. is a professional manufacturer specializing in seawater electrolysis chlorination systems. Our Skid Mounted Seawater Electrolysis Chlorination System is engineered for easy installation and maintenance, delivering reliable chlorine generation for marine and offshore applications. Designed with a compact, pre-assembled skid, this system minimizes on-site work and reduces downtime. Whether you need to control biofouling in seawater cooling pipes or treat ballast water, this solution offers consistent performance with minimal operator intervention.
Key Features
Skid Mounted Design: All components are integrated on a rugged, corrosion-resistant skid, allowing quick installation and easy relocation.
High-Efficiency Electrodes: Titanium anodes coated with mixed metal oxides (MMO) ensure long service life and low power consumption.
Automatic Reverse Polarity Cleaning: Built-in self-cleaning mechanism reduces scaling and extends electrode life.
Adjustable Chlorine Output: Output can be tailored to match specific flow rates and water quality requirements.
Low Maintenance: Simplified operation with automatic control and remote monitoring capability (optional).
Corrosion Protection: All wetted parts are made of seawater-resistant materials, including titanium, super duplex stainless steel, and PVC.
Safety Features: Integrated hydrogen gas venting, pressure relief, and leak detection ensure safe operation.
Technical Specifications
| Chlorine Production | 500 g/h – 50 kg/h (Cl₂ equivalent) |
| Seawater Flow Rate | 1 – 50 m³/h (customizable) |
| Power Supply | 380V/50Hz, 3-phase (other voltages available) |
| Operating Temperature | 0°C – 45°C |
| Electrode Material | Titanium MMO (anode), Titanium (cathode) |
| Skid Dimensions | Customizable, typical footprint 2m x 1.5m x 2m |
| Control System | PLC with HMI touch screen, remote monitoring optional |
Advantages for Your Business
Easy Installation: The skid-mounted unit arrives pre-piped, pre-wired, and factory-tested. Simply connect seawater inlet, power, and product line – no complex field assembly required.
Reduced Maintenance Costs: Automatic reverse polarity cleaning and self-diagnosing control system minimize manual intervention. Electrode life typically exceeds 5 years under normal operation.
Operational Flexibility: Output can be modulated from 10% to 100% capacity, allowing precise dosing to match varying demand.
Environmentally Friendly: On-site chlorine generation eliminates the need for hazardous chemical transportation and storage. The process produces only chlorine, hydrogen, and oxygen from seawater.
Proven Reliability: ZLN systems have been deployed in over 20 countries, including North America, Europe, and Southeast Asia, serving industries such as offshore oil & gas, coastal power plants, and marine vessels.
As a leading manufacturer based in Tianjin, China, ZLN leverages advanced manufacturing capabilities and a dedicated R&D team. Our factory is ISO 9001 certified, and each system undergoes rigorous quality control before shipment. We offer comprehensive after-sales support, including spare parts, remote troubleshooting, and on-site training if needed. With a flexible port of shipment (Tianjin), we ensure timely delivery worldwide.
Ready to simplify your biofouling control? Contact us today for a customized solution tailored to your flow rate, water quality, and space constraints. Our team of engineers will provide technical drawings, a detailed proposal, and competitive pricing. Let ZLN be your trusted partner in seawater electrolysis chlorination.
Frequently Asked Questions
Q: What is the typical lead time for a skid-mounted system?
A: Standard lead time is 6–8 weeks after order confirmation, depending on complexity and capacity.Q: Can the system operate in cold seawater?
A: Yes, the system is designed for seawater temperatures from 0°C to 45°C. For extremely cold environments, optional heating elements can be added.Q: How often do electrodes need to be replaced?
A: Under normal conditions (seawater salinity 25–35 ppt, proper operation), electrode life is typically 5–7 years.Q: Do you provide installation and commissioning service?
A: Yes, we offer optional on-site supervision and commissioning. Remote support is also available.Q: Is the system suitable for ballast water treatment?
A: Yes, our system can be integrated into a ballast water management system (BWMS) as a side-stream electrolysis unit. Please consult with our engineers for specific requirements.Q: What certifications do you have?
A: Our factory is ISO 9001:2015 certified. For specific marine certifications (e.g., DNV, ABS), we can manufacture according to needed standards upon request.Q: Can I get a material certificate?
A: Yes, we can provide material certificates for all wetted parts, including titanium and stainless steel components.Q: What is the power consumption per kg of chlorine produced?
A: Typical power consumption is 4–6 kWh/kg Cl₂, depending on seawater salinity and temperature.
