Plan Chest for Architecture Studios — A0 Drawers Lay Flat, Lock Securely, Never Tip Over
A plan chest is how a studio keeps its working drawings flat, sorted and readable. Every A0 sheet sits horizontal in its own drawer — no folding, no rolling, no hunting through a pile. For an architect, a drawing isn't a record, it's the design itself. It deserves to stay flat.
Why a screen can't replace the sheet
You can view a drawing on a monitor, but you can't judge a scheme on one. A full A0 sheet laid flat shows the whole building at once — the grid, the section, the relationship between rooms that scrolling hides.
| Screen view | Sheet laid flat |
|---|---|
| You see one corner at a time | You see the whole scheme at once |
| Zooming in loses the big picture | Layout reads in a glance |
| Notes and redlines hide in layers | Every mark stays on the paper |
| Screen dies, drawing stays | Paper works when the power doesn't |
That's why studios still print, plot and pin up — and why the printed sheets end up in a plan chest, not a filing drawer that creases them.
One drawer, one project
A studio runs several projects at once. The chest sorts them by drawer:
Drawer 1 — the housing scheme, working drawings
Drawer 2 — the planning submission, stamped set
Drawer 3 — the site surveys and context plans
Drawer 4 — the rejected options, kept for reference
Pull one drawer and you have one project in front of you, nothing else in the way. Label the front and the whole studio knows where things live.
The top is a work surface, not wasted space
Studios are rarely generous with square meters. A plan chest earns its footprint twice — the drawers store, and the top works:
Lay out a scheme for a client walkthrough
Set a model on top while you reference the plans
Roll out a set for marking up, without bending over a low table
One piece of furniture, two jobs. In a compact studio, that's the difference between buying a second bench and not needing one.
Built for paper that matters
The drawers and slides do the real work, so the details matter:
| Part | Detail |
|---|---|

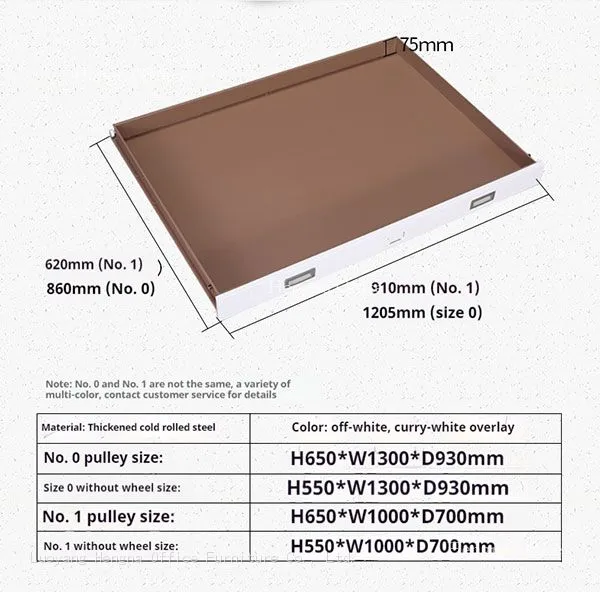

| Drawer size | A0 (841 × 1189 mm) and A1 (594 × 841 mm) |

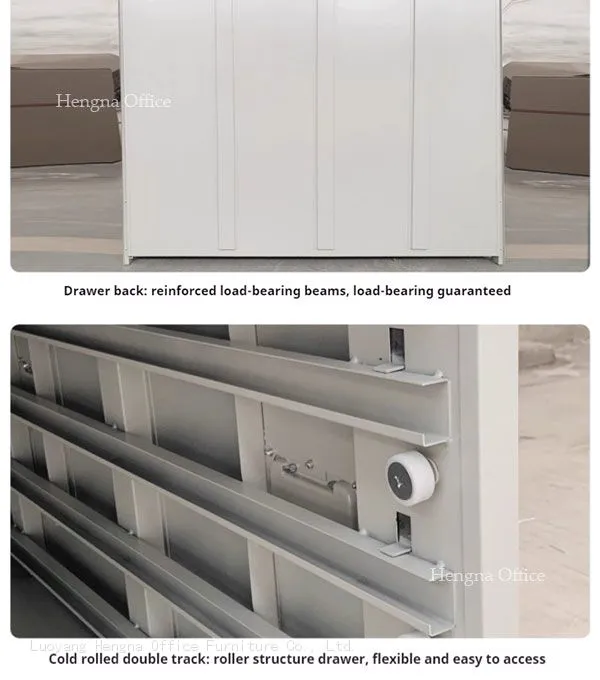

| Drawer slides | Full-extension, ball-bearing |
| Drawer action | Smooth glide, holds position when open |
| Locking | Central lock, interlock option |
| Anti-tip | Full-width base, optional floor anchors |
| Construction | Welded steel frame, cold-rolled drawer bodies |
| Finish | Electrostatic powder coating, rust-resistant |
| Assembly | Knock-down, 2 people |
| Warranty | 1 year |
| Certifications | CE certified |
A piece of furniture, not just a cabinet
The chest sits in the studio, not the back warehouse. It should look like it belongs there. The powder-coated finish comes in colours that work in a design office — not just the plain blue of a workshop rack.
Clean lines, flat fronts, no exposed hardware
Colours to match the studio, not just stock grey
Silk-screen your studio name on the front
A client who walks into your office sees a tidy chest, not a dented filing unit. First impressions count when you're selling design.
Who uses a plan chest
Architecture studios — working drawings, submissions, as-builts
Interior design firms — material boards and large sample plans
Landscape architects — site plans and planting drawings
Structural and MEP consultants — coordinated drawings that must stay flat
Planning departments — stamped record drawings
For a studio that still prints, plots and pins up, a plan chest is where the paper ends up.
Custom options
Built to your spec:

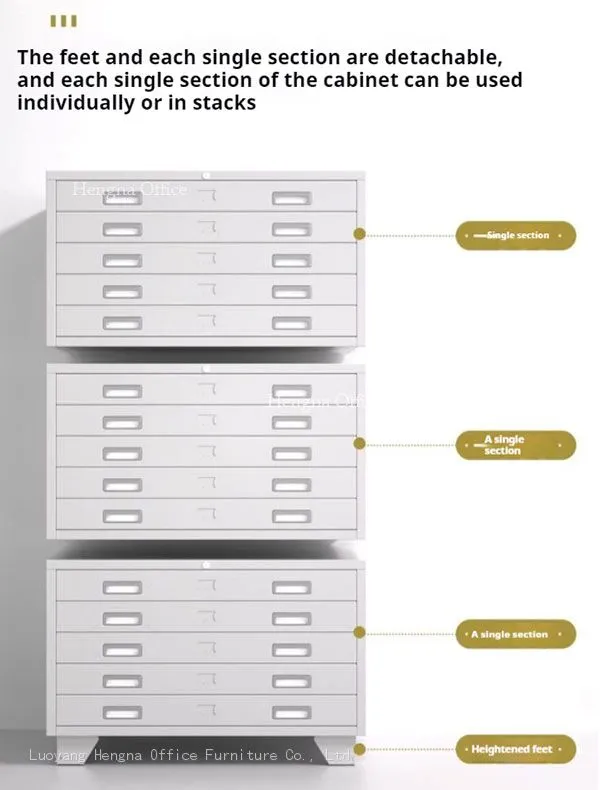

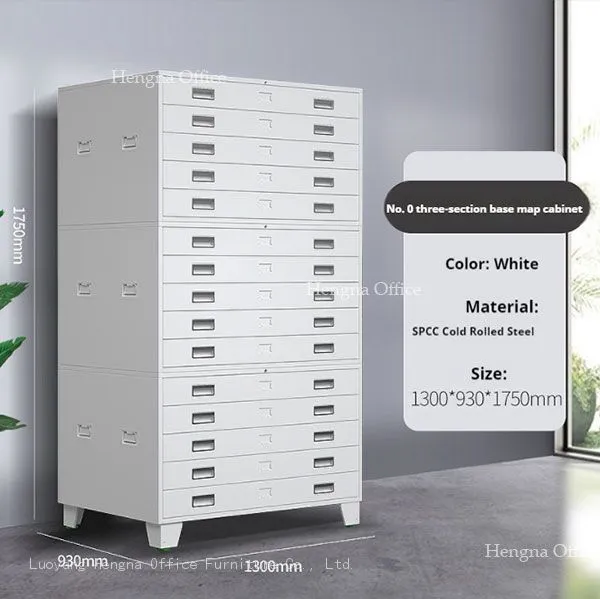

Drawer count — a few shallow drawers or a full-height chest
Mixed sizes — A0 up top, A1 below, or all one size
Colour — match your studio palette
Branding — silk-screen your studio name or logo
Dividers — sort a drawer by project stage
Locking — central or individual
CE certified, with OEM/ODM experience shipping to export markets. Quote within 24 hours — send your sheet sizes and drawer count, we'll spec the chest.
Shipping and lead time
Ships knocked-down and export-packed: moisture film, corner protectors, separate part packing, palletized. Flat-packed chests keep freight sensible — a 40ft container holds far more knocked-down than assembled. Stock colours ship fastest; custom finishes add time.
FAQ
Can I use the top as a work surface?
Yes — the top is flat and sturdy. Studios commonly lay out schemes or set models on it while referencing plans.
Do the drawers stay open while I'm reading a sheet?
Yes. The slides hold position, so a drawer stays put while you study the drawing — no sliding shut mid-look.
Can I mix A0 and A1 drawers in the same chest?
Yes. Mixed drawer heights are standard — A0 up top for big schemes, A1 below for details.
Can I lock just one drawer?
Yes. Choose central locking for the whole chest or individual locks per drawer — tell us your setup.
Can you match the colour to my studio?
Yes. Custom colours and silk-screen branding are standard OEM options.
What's the lead time?
Stock colours ship fastest. Custom finishes and larger quantities add time — tell us your quantity and we'll confirm a date.
What's the warranty?
1 year against manufacturing defects. The frame is welded steel — in practice these chests outlast the studio lease.
Ready to spec yours?
Send your sheet sizes, drawer count and studio colour to Luoyang Hengna Office Furniture Co., Ltd. — we'll reply with a drawing, pricing and lead time within 24 hours. No obligation, no sales script.
