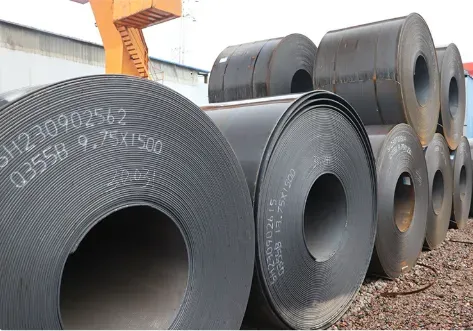

Help CenterHot Rolled Carbon Steel Coil SAE1006 0.5-3.0mm Thickness 1000-1500mm Width for Deep Drawing
Product Spotlights
Related Products
-
Carbon Steel Coil for Automotive Frame Manufacturing 0.8-3.0mm Thickness ASTM A569NegotiableMOQ: 1 Ton -
Cold Rolled Carbon Steel Coil SPCC 0.3-2.0mm Thickness 800-1200mm Width Standard CompliantNegotiableMOQ: 1 Ton
-
ASTM A36 Carbon Steel Coil 2-12mm Thickness 1500mm Width for Structural ApplicationsNegotiableMOQ: 1 Ton
-
Carbon Steel Coil for Construction Steel Structure 2-12mm Thickness S235JR Standard CompliantNegotiableMOQ: 1 Ton
-
Carbon Steel Coil 24/7 Technical Support Free Sample Available Cold Rolled 0.5mm ThicknessNegotiableMOQ: 1 Ton
Hemaokang Steel (Shandong) Co., Ltd. is a reliable supplier of high-quality steel products, serving global markets with an annual export value exceeding US$50 million. Our Hot Rolled Carbon Steel Coil SAE1006 is specifically engineered for deep drawing applications, offering excellent formability and consistent mechanical properties. With thickness ranging from 0.5mm to 3.0mm and width from 1000mm to 1500mm, this coil meets the demanding requirements of automotive, appliance, and industrial manufacturing. We combine advanced production techniques with strict quality control to deliver coils that perform reliably under the most severe forming operations.
Our SAE1006 hot rolled coil is produced using low-carbon steel with a carefully controlled chemistry to ensure outstanding ductility and elongation. The material is ideal for processes like deep drawing, stamping, and bending, where complex shapes and tight tolerances are required. Each coil undergoes rigorous testing for surface quality, dimensional accuracy, and mechanical properties, ensuring consistency from coil to coil.
Key Features & Technical Specifications
- Excellent Formability: Low carbon content (max 0.08%) and controlled manganese and phosphorus levels deliver superior drawability.
- Uniform Thickness: Precision rolling ensures thickness tolerance within ±0.05mm for ≤1.5mm thickness and ±0.08mm for thicker gauges.
- Clean Surface: Available with pickled and oiled surface for rust protection, or black finish for general forming.
- Consistent Mechanical Properties: Yield strength typically 180-250 MPa, tensile strength 270-370 MPa, elongation ≥ 35%.
- Flexible Width Options: Custom widths from 1000mm to 1500mm to suit different die sizes and blanking requirements.
- Coil Weight: Standard coil weight 3-10 tons, with custom options available upon request.
| Parameter | Specification |
|---|---|
| Grade | SAE1006 (ASTM A568 / A569) |
| Thickness Range | 0.5 – 3.0 mm |
| Width Range | 1000 – 1500 mm |
| Surface Treatment | Pickled & Oiled / Black / Customizable |
| Edge Type | Slit edge or Mill edge |
| Coil Inner Diameter | 508 mm / 610 mm (optional) |
| Application | Deep drawing, stamping, automotive parts, oil pans, fenders, chassis components |
Benefits for Your Business
- Reduced material waste due to consistent thickness and surface quality, leading to higher yield in stamping and deep drawing operations.
- Lower tool wear because of clean surface and uniform hardness, extending die life and reducing maintenance costs.
- Faster production cycles with predictable material behavior – no unexpected cracking or wrinkling during forming.
- Flexible supply options: small trial orders accepted, and large volumes can be delivered in multiple shipments to match your production schedule.
- Fast turnaround from Qingdao port – typically 15-20 days after order confirmation.
Trust & Reliability
Hemaokang Steel has been dedicated to the steel industry since 2025, with a professional team of 51-100 employees and a strong export network covering all major global markets. Our ISO9001 certified quality management system ensures every coil is produced and inspected according to international standards. We have supplied over 50,000 tons of hot rolled coil to customers in North America, Europe, Southeast Asia, and beyond. Our commitment to on-time delivery, competitive pricing, and after-sales support has made us a trusted partner for many well-known manufacturers. Contact us today to request a quotation or place a trial order – we are ready to serve you.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for your SAE1006 hot rolled coil?
A: For standard sizes, lead time is around 15-20 days from order confirmation. Custom sizes may require additional 5-7 days. -
Q: Can you provide coils with pickled and oiled surface?
A: Yes, we offer both pickled & oiled (P&O) and black finish. P&O is recommended for deep drawing to prevent rust and improve die lubrication. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is 25 metric tons per size. However, we can accommodate smaller trial orders for new customers to evaluate the product. -
Q: Do you provide mill test certificates?
A: Yes, each shipment is accompanied by a mill test certificate (MTC) showing chemical composition and mechanical properties. -
Q: Is the coil suitable for deep drawing of automotive inner panels?
A: Absolutely. SAE1006 is specifically designed for deep drawing, and our tight thickness control ensures excellent formability for complex shapes like inner panels and oil pans. -
Q: What packing methods do you use for export?
A: Coils are packed with steel skids, wrapped with waterproof paper, and strapped with steel bands to ensure safe transportation. Custom packing is available on request. -
Q: Can I request a sample before bulk order?
A: Yes, we can provide sample coils (usually 1-2 tons) with freight collect. Samples are available for testing and evaluation. -
Q: What payment terms do you accept?
A: Common terms include T/T (30% deposit, 70% against copy of B/L) and L/C at sight. Other terms can be negotiated for long-term cooperation.
