Home > Construction & Decoration > Prefabricated Building > Outdoor Roof > PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation

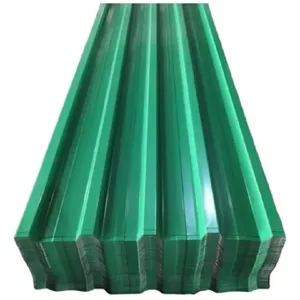

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation thumbnail-3

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation thumbnail-4

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation thumbnail-5

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation photo-1

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation photo-2

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation photo-3

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation photo-4

PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation photo-5

Product Spotlights

Premium PVDF coating ensures 20+ years of color retention and corrosion resistance. 0.6mm (26 gauge) thickness with 30mm corrugation delivers optimal strength and water drainage. Customizable dimensions and colors. ISO9001 certified factory with US$50M+ annual export. Trusted for global roofing and cladding projects.

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Steel with PVDF Coating

Standard:

Other, ISO9001

Thickness:

0.6mm (26 Gauge)

Contact Supplier Request Quote Chat Now

Hemaokang Steel (Shandong) Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Material Other, Steel with PVDF Coating

Standard Other, ISO9001

Thickness 0.6mm (26 Gauge)

Corrugation Height 30mm

Coating Type PVDF (Polyvinylidene Fluoride)

Color Customizable (e.g., RAL colors)

Application Roofing, Wall Cladding, Industrial Buildings

Width Customizable (e.g., 1000mm, 1200mm)

Length Customizable (up to 12m)

Introducing the PVDF Coated Pre Coated Corrugated Board 0.6mm 26 Gauge 30mm Corrugation from Hemaokang Steel (Shandong) Co., Ltd. As a rapidly growing manufacturer with an annual export value of US$50-100 million, we specialize in high-quality steel products for global construction. This corrugated board combines superior PVDF coating with pre-coated technology, delivering exceptional weather resistance and long-lasting aesthetics. Ideal for roofing, wall cladding, and industrial applications, it offers a perfect balance of strength, flexibility, and corrosion protection.

Key Features & Technical Specifications

Premium PVDF Coating: Provides excellent UV resistance, color retention, and chemical durability, ensuring the panel maintains its appearance for decades even in harsh environments.
Pre-Coated Process: The coating is applied before corrugation, ensuring uniform coverage and strong adhesion, reducing the risk of peeling or chipping.
0.6mm (26 Gauge) Thickness: Offers optimal rigidity and load-bearing capacity while remaining lightweight for easy handling and installation.
30mm Corrugation Height: Enhances structural strength and water drainage efficiency, suitable for large-span roofs and walls.
Customizable Dimensions: Available in various widths and lengths (up to 12m), and a wide range of RAL colors to match architectural designs.

Parameter	Value
Material	Galvanized Steel with PVDF Coating
Thickness	0.6mm (±0.02mm) / 26 Gauge
Corrugation Height	30mm
Coating Thickness	20-25μm (PVDF top coat)
Yield Strength	≥ 350 MPa
Standard Width	1000mm, 1200mm (customizable)

Advantages for Your Projects

Long Service Life: PVDF coating resists fading, chalking, and corrosion, extending the panel's lifespan to 20-30 years with minimal maintenance.
Cost-Effective: Pre-coated process reduces on-site painting costs and labor, speeding up construction timelines.
Versatile Applications: Suitable for residential, commercial, and industrial buildings, including warehouses, factories, agricultural sheds, and more.
Easy Installation: Lightweight yet strong, can be cut and fixed with standard tools, reducing installation complexity.

Trust & Reliability – Why Choose Hemaokang Steel? With ISO9001 certification, a team of 51-100 experienced professionals, and annual export value exceeding US$50 million, we are committed to delivering consistent quality and on-time delivery. Our factory in Liaocheng, Shandong, China, is equipped with advanced production lines, and we export globally to North America, Europe, Southeast Asia, Africa, Oceania, and beyond. Every shipment from Qingdao port undergoes strict quality control to ensure you receive defect-free products. Whether you need standard sizes or custom specifications, our team provides responsive support and competitive pricing. Contact us today to discuss your requirements and get a quote!

FAQ – Frequently Asked Questions

What is the difference between PVDF coating and standard polyester coating?
PVDF (polyvinylidene fluoride) offers superior UV resistance, color retention, and chemical durability compared to polyester, making it ideal for harsh climates and long-term exterior use.
Can this corrugated board be used for both roofing and wall cladding?
Yes, the 30mm corrugation provides excellent water drainage and structural strength, suitable for both roofing and vertical wall applications.
What colors are available?
We offer a wide range of RAL colors, including white, gray, blue, red, and custom colors upon request. Minimum order quantities may apply for custom colors.
What is the maximum length of a single panel?
Standard lengths are up to 12 meters, but longer lengths can be manufactured based on your project requirements and transportation feasibility.
Is the product resistant to salt spray or coastal environments?
Yes, the PVDF coating provides excellent corrosion resistance, making it suitable for coastal areas with high salt exposure. We recommend using additional edge protection for extreme conditions.
How do you ensure consistent quality?
We follow ISO9001 quality management system, conduct mill test certificates, thickness checks, and coating adhesion tests for each batch. Our QC team monitors the entire production process.
What is the typical lead time for an order?
Lead time depends on order quantity and customization. For standard sizes, it is usually 15-25 working days after deposit. We can provide a firm schedule upon request.
Do you provide samples?
Yes, we can provide small samples (e.g., 20cm x 20cm) for evaluation. Shipping cost is covered by the buyer, and the sample fee is refundable for bulk orders.
