Home > Industrial Equipment & Components > Valve > Butterfly Valve > Zhengkang Dust Extraction Pipe Electric Ventilation Butterfly Valve Manual Worm Flue Flue Gas Baffle Door Round Pneumatic Louver Valve

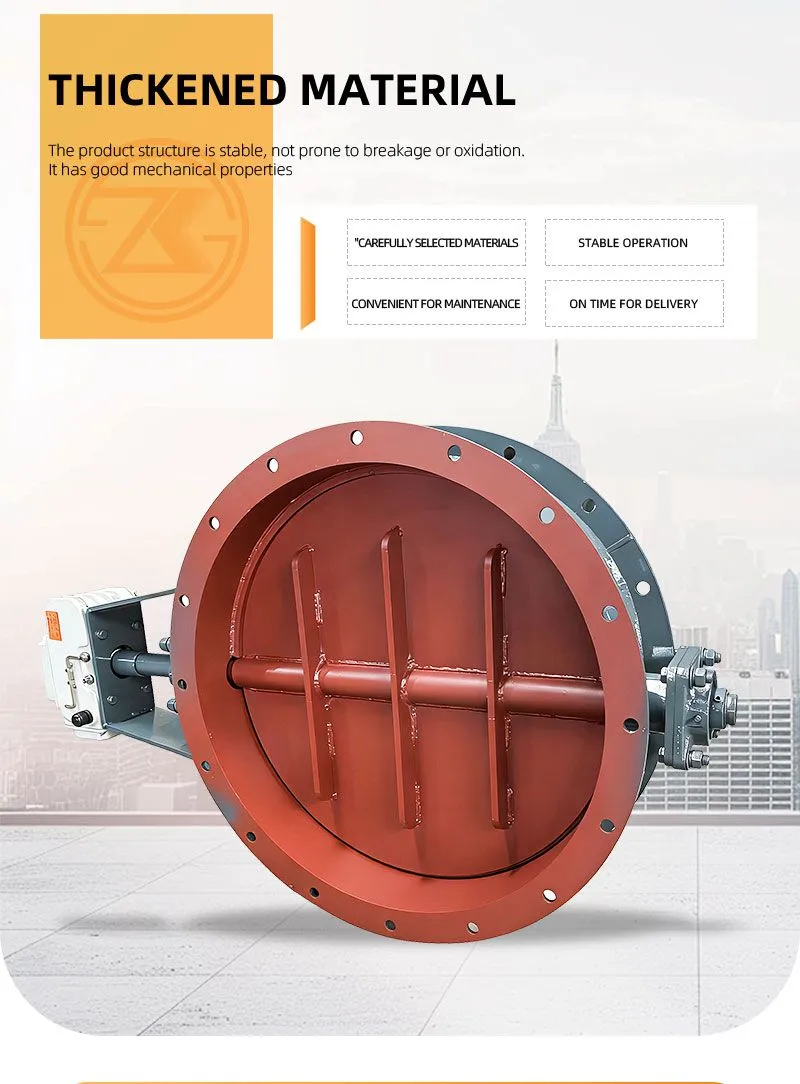

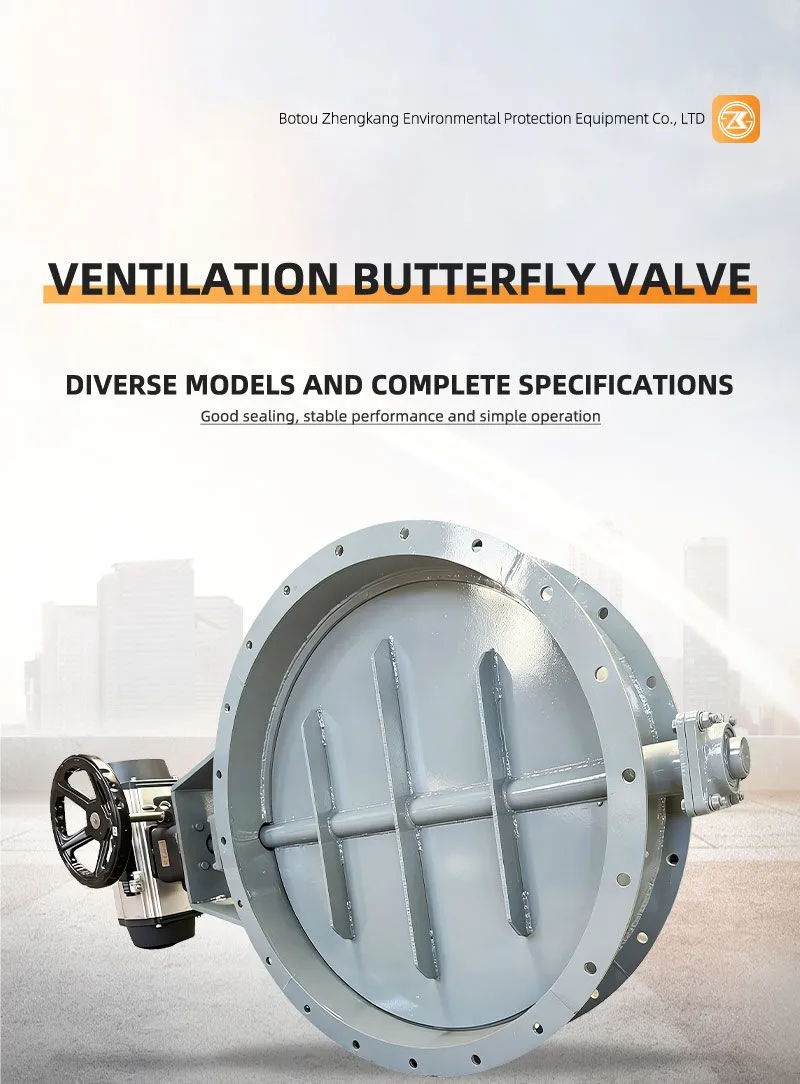

Zhengkang Dust Extraction Pipe Electric Ventilation Butterfly Valve Manual Worm Flue Flue Gas Baffle Door Round Pneumatic Louver Valve
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Industrial Usage
Standard:
GB
Work Pressure:
Low Pressure (Pn<1.6mpa)
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
15 days
Related Products
-
Zhengkang Ventilation Butterfly Valve Industrial Air Duct Damper for Dust Collection PipelineNegotiableMOQ: 1 Unit -
Zhengkang Industrial Ventilation Butterfly Valve Manual Electric Pneumatic Air Duct Damper for Dust Removal PipelineNegotiableMOQ: 1 Unit
-
Zhengkang Brand Custom Ventilation Butterfly Valve 3360mm Large Bore 0~90° Angle Polytetrafluoroethylene PackingNegotiableMOQ: 1 Unit
-
Industrial Ventilation Butterfly Valve Manual Electric Pneumatic Damper Valve For Duct Air Flow Control Flue Gas Ventilation Butterfly Damper ValveNegotiableMOQ: 1 Unit
-
Zhengkang Ventilation Butterfly Valve, Industrial Air Duct Damper for Dust Removal Pipeline, Manual / Electric Air Flow Control Butterfly DamperNegotiableMOQ: 1 Unit
Application
Industrial Usage
Standard
GB
Work Pressure
Low Pressure (Pn<1.6mpa)
Driving Mode
Pneumatic
Seal Form
Force Sealed
Valve Stem
Other, Through Shaft
Material of Seal Surface
Metal Hard Sealed
Valve Body
Forge Welding
Structure
Three-Eccentric Sealing
Working Temperature
Normal Temperature (-40°C
Media
Other, dusty gas
Connection Form
Flange
Transport Package
Contact customer service.

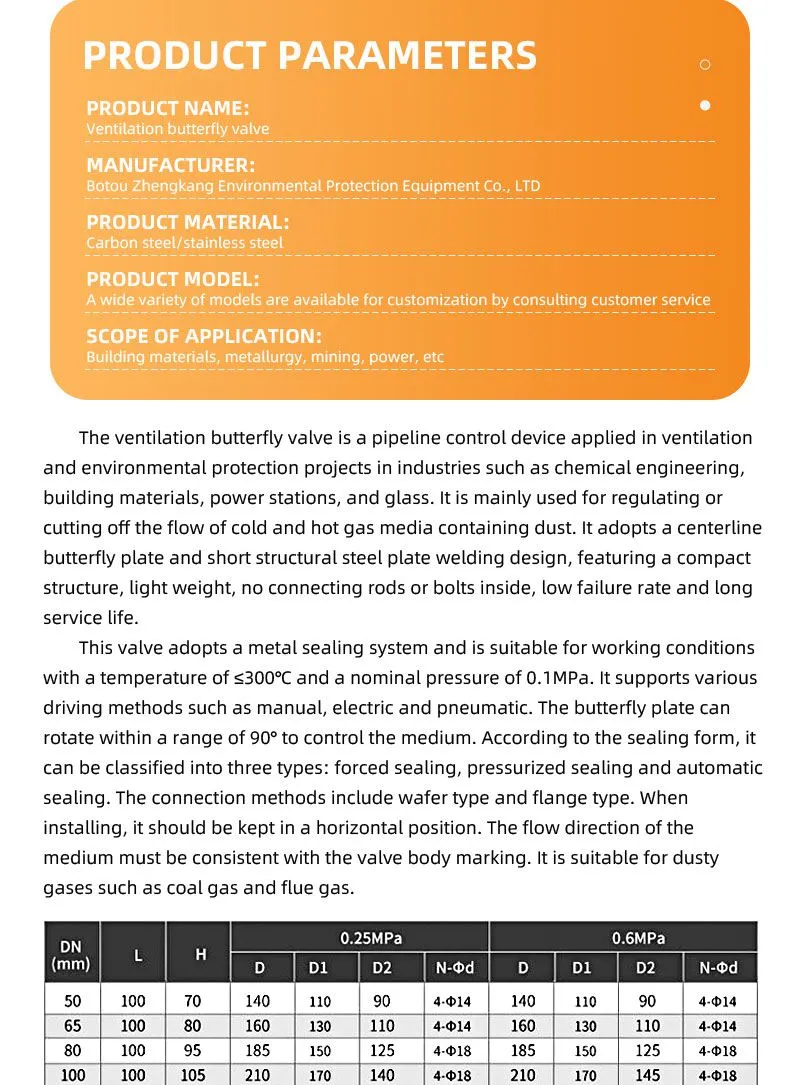

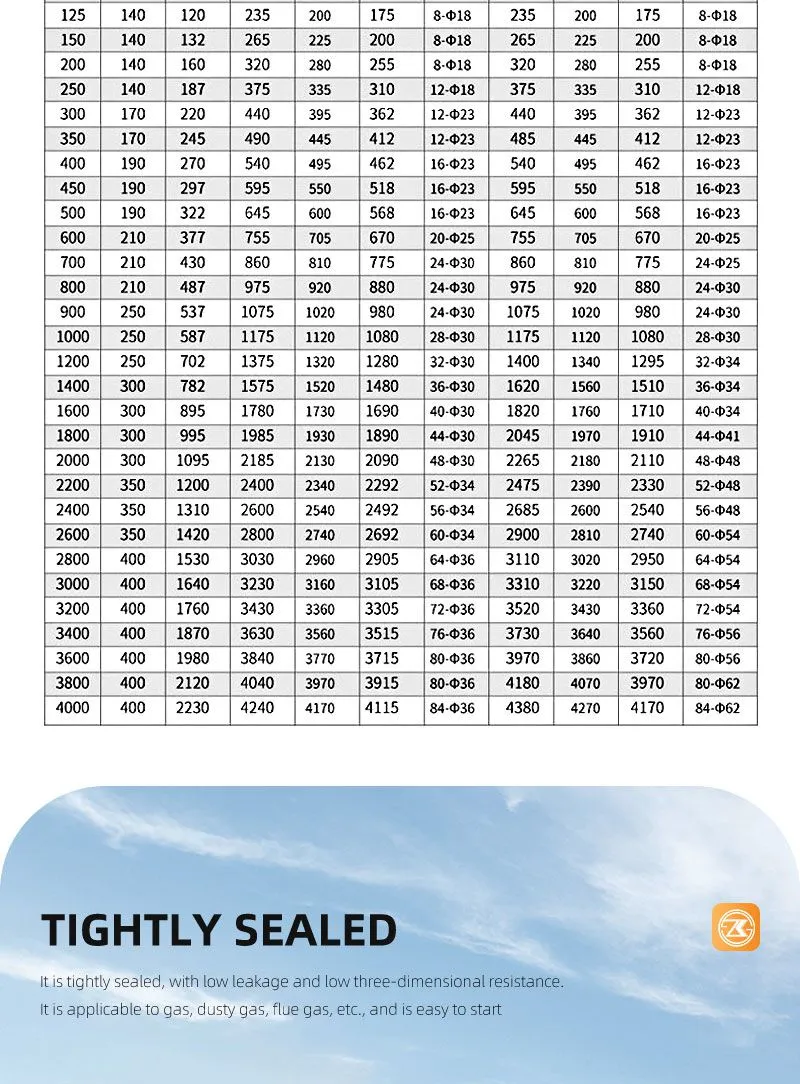

Specification
Customizable.
Trademark
Zhengkang
Origin
China
Ventilation butterfly valve
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
2006
Factory Size
5,000-10,000 square meters
Annual Export Value
Below US$1 Million
