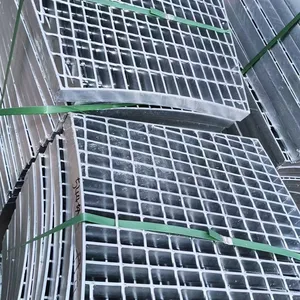

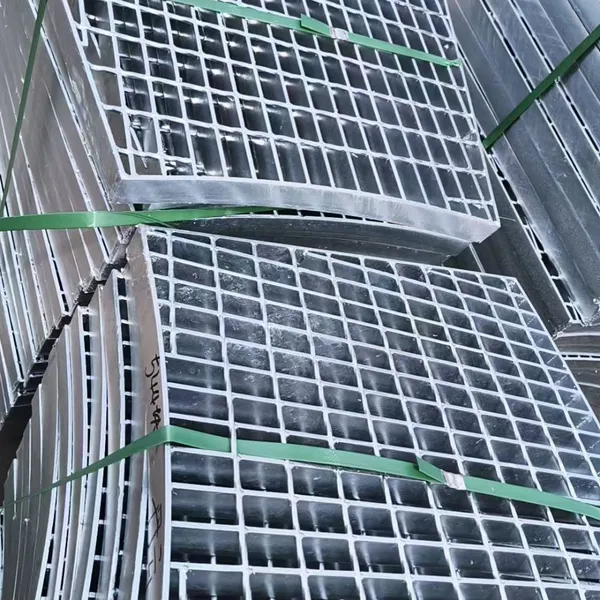

Help CenterHeavy Duty Hot Dip Galvanized Steel Grating, 50x5mm Bearing Bar, 100mm Center Spacing, ASTM A123 Coated
Product Spotlights
Related Products
-
Hot Dipped Galvanized Steel Grating, Serrated Surface, 25x3mm Load Bar, 30x100mm Pitch, For Industrial PlatformsNegotiableMOQ: 300 Square Meters -
Industrial Galvanized Steel Grating, Hot Dipped Zinc Coating, 45x4mm Load Bars, 30mm Bar Spacing, Factory ISO 9001 CompliantNegotiableMOQ: 300 Square Meters
-
Galvanized Steel Grating For Stair Treads, Serrated Nosing, 30x3mm Load Bars, Welded, Anti-SlipNegotiableMOQ: 300 Square Meters
-
Galvanized Steel Grating For Drainage Covers, Hot Dipped, 38x3mm Bars, 25mm Gap, Slip ResistantNegotiableMOQ: 300 Square Meters
-
Custom Galvanized Steel Grating, Free Cutting Service, 1-Year Warranty, 2 Weeks Lead Time, With Mill Test CertificateNegotiableMOQ: 300 Square Meters
Welcome to Hengshui Ruibin New Materials LLC — a professional manufacturer established in 2019, with a factory covering 1,000–3,000 square meters and a dedicated team of 101–200 employees. As a trusted supplier in the steel grating industry, we export high-quality products to markets worldwide, including North America, South America, Europe, and Asia. Our Heavy Duty Hot Dip Galvanized Steel Grating with 50x5mm bearing bars and 100mm center spacing is engineered for demanding industrial applications. Coated to ASTM A123 standards, this grating delivers exceptional corrosion resistance, structural integrity, and long service life — making it a reliable choice for heavy-load environments.

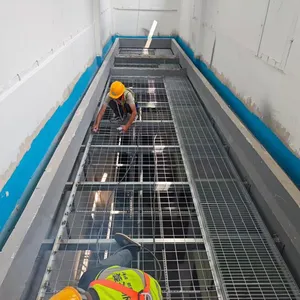

This product is manufactured using advanced welding technology and strict quality control. The bearing bars (50mm x 5mm) are precisely spaced at 100mm centers to provide optimal load distribution and drainage. The hot dip galvanized coating ensures protection against rust and harsh weather conditions, even in outdoor or chemical-exposed areas. Whether used for walkways, platforms, trench covers, or industrial flooring, this grating offers superior performance and safety.
Key Features & Benefits
- Heavy Load Capacity: 50x5mm bearing bars with 100mm spacing provide high strength-to-weight ratio, suitable for pedestrian and vehicular traffic.
- Corrosion Resistance: Hot dip galvanized coating meets ASTM A123 standards, ensuring excellent protection against rust, chemicals, and moisture.
- Easy Installation: Lightweight yet strong design allows for quick assembly and reduced labor costs.
- Slip Resistance: Serrated surface options available (upon request) to enhance safety in wet or oily conditions.
- Customizable: Available in various panel sizes, cross bar spacing, and edge treatments to fit your specific project requirements.
- Low Maintenance: The galvanized finish requires minimal upkeep, saving time and money over the product's lifespan.

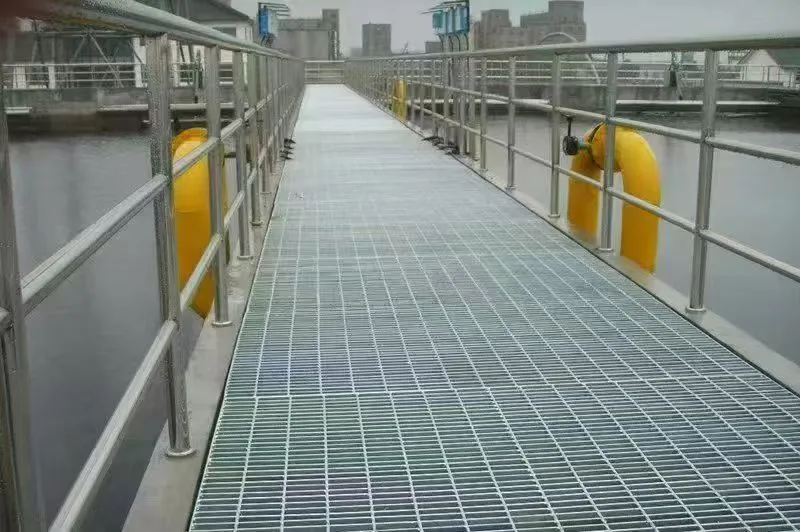

- Versatile Applications: Ideal for industrial flooring, catwalks, drainage covers, stair treads, and more.
Technical Specifications
| Parameter | Value |
|---|---|
| Bearing Bar Size | 50mm (height) x 5mm (thickness) |
| Center Spacing (Bearing Bar) | 100mm |
| Cross Bar Spacing | Customizable (commonly 50mm or 100mm) |
| Material | High-strength low-carbon steel (Q235 or equivalent) |
| Coating | Hot Dip Galvanized per ASTM A123 |
| Standard Panel Width | Up to 1250mm (custom sizes available) |
| Standard Panel Length | Up to 6000mm (custom lengths available) |
| Surface Options | Plain or serrated (anti-slip) |
Why Choose Our Heavy Duty Grating? The combination of 50x5mm bearing bars and 100mm center spacing provides an optimal balance of strength and open area. This design reduces material weight while maintaining high load-bearing capacity — perfect for applications where weight is a concern, such as offshore platforms or elevated walkways. The hot dip galvanized finish, complying with ASTM A123, ensures a uniform and thick zinc coating that withstands extreme environments.
Trusted Partnership with Hengshui Ruibin New Materials LLC
As a manufacturer with an annual export value of US$2.5 Million to US$5 Million, we have established a solid reputation in both domestic and international markets. Our factory operates with a skilled workforce of 101–200 employees, ensuring consistent quality and timely delivery. We ship through major ports such as Port of Tianjin and Port of Qingdao, covering clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Our products have been widely used in industrial complexes, municipal projects, and commercial buildings.
We understand that every project has unique requirements. That's why we offer customized solutions — from panel size to cross bar spacing and edge preparation. Our team works closely with clients to provide technical drawings, load calculations, and sample testing prior to mass production. With a strong focus on quality assurance, each batch undergoes rigorous inspection including coating thickness measurement, dimensional checks, and load testing.
Contact us today for a quote or to discuss your specific needs. Whether you require standard grating panels or custom designs, we are committed to delivering products that exceed your expectations. Our heavy duty hot dip galvanized steel grating is built to last — invest in durability and safety.
Frequently Asked Questions (FAQ)
-
Q: What is the load capacity of this grating with 50x5mm bars and 100mm spacing?
A: The load capacity depends on the span and application. Typically, this configuration can support pedestrian loads (approx. 4-5 kN/m²) and light vehicular traffic. For specific load ratings, please provide your span and desired safety factor, and we will provide a detailed calculation. -
Q: Is the ASTM A123 coating suitable for outdoor use in coastal areas?
A: Yes, hot dip galvanizing per ASTM A123 provides excellent corrosion resistance in outdoor environments, including coastal areas. However, for extreme marine or chemical exposure, additional coatings or stainless steel options may be recommended. We can advise based on your environment. -
Q: Can you customize the panel dimensions (length and width)?
A: Absolutely! Our standard panels are up to 1250mm wide and 6000mm long, but we can cut or fabricate to your exact dimensions. Please provide your required sizes for a quotation. -
Q: What is the typical lead time for this product?
A: For standard sizes, lead time is approximately 15-25 working days after order confirmation. Custom orders may require 20-30 working days. Rush orders are available upon request. -
Q: Do you provide serrated (anti-slip) surface options?
A: Yes, we can supply serrated bearing bars for improved slip resistance. This is a common requirement for wet or oily work areas. Please specify when ordering. -
Q: What kind of edge treatment do you offer? Can we have banding or toe plates?
A: We offer various edge options: cut band, square cut, or with bent tabs. Toe plates, banding, and other custom edge treatments are available. Share your drawing or requirement for a solution. -
Q: Is the grating certified by any third-party testing organization?
A: Our product complies with ASTM A123 standards. We can provide mill test reports (MTR) for material traceability and coating thickness certificates. No third-party certification is currently maintained, but we can arrange for inspection by your designated agency at an additional cost. -

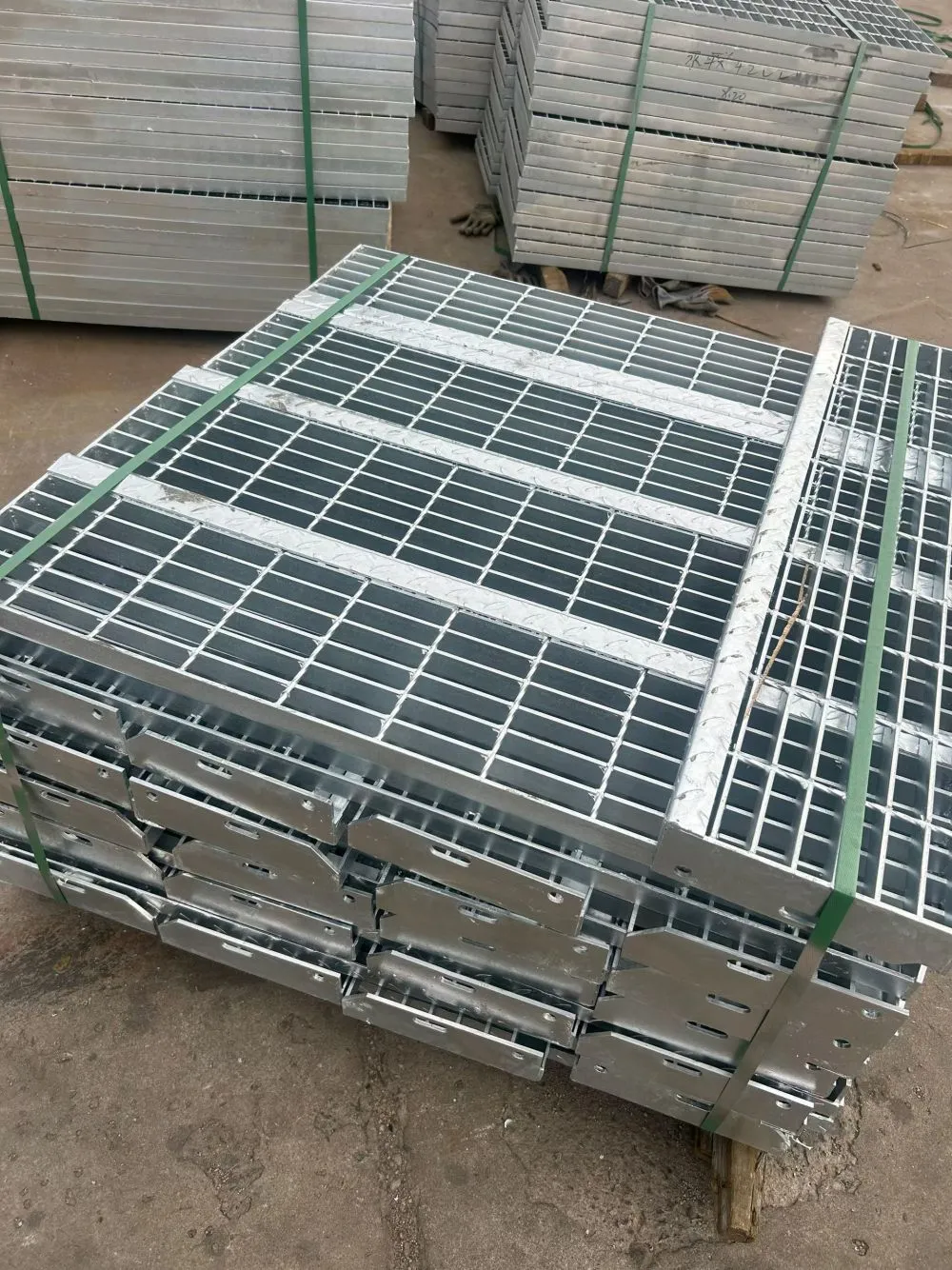

Q: How is the grating packed for export?
A: Panels are bundled with steel straps, protected by edge guards, and wrapped with waterproof paper or plastic for container shipping. Each bundle is clearly labeled with dimensions and quantity. We ensure safe delivery to any international port.
