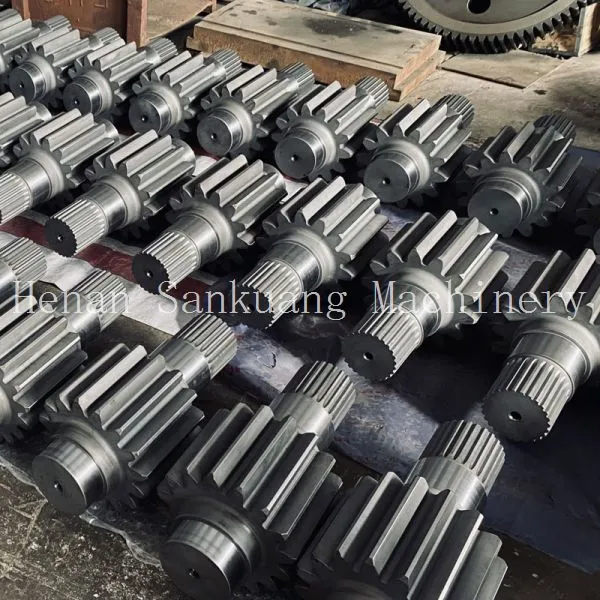

Henan San Kuang Machinery Technology Co., Ltd. is a professional manufacturer specializing in non-standard precision gear production. With our state-of-the-art grinding facility and a dedicated team of 51-100 skilled employees, we deliver precision grinding services that guarantee tolerances as tight as 0.02 mm, fully compliant with international standards. Whether you need a single prototype or mass production, our factory, spanning 10,000-30,000 square meters in Luoyang, Henan, China, ensures every gear meets your exact specifications. Our annual export value of US$2.5-5 million across North America, South America, Europe, Asia, and Africa reflects the trust global clients place in our quality and service.
We understand that standard gears don’t always fit unique applications. That’s why we specialize in non-standard precision gears — from custom tooth profiles, unusual modules, to specialized materials. Our precision grinding process achieves a tolerance of 0.02 mm, ensuring smooth operation, low noise, and extended service life for your equipment.
Key Features & Technical Specifications
- Precision Grinding Tolerance: Up to 0.02 mm (customizable tighter upon request).
- Wide Material Range: Carbon steel, alloy steel (40Cr, 20CrMnTi, 42CrMo), stainless steel, and more.
- Tooth Form Customization: Involute, cycloid, modified profiles — designed per your CAD model.
- Heat Treatment Options: Carburizing, quenching, tempering, nitriding (hardness HRC 20-62).
- Surface Finish: Ra 0.4 – 0.8 μm after grinding.
- Module Range: 0.5 – 20 (other modules available on request).
- Maximum Gear Diameter: 1,200 mm (larger sizes available, contact us).
- Standard Compliance: DIN, ISO, AGMA, or customer-specific standards.
- Quality Control: 100% inspection with CMM, gear measuring center, and hardness tester.
- Production Capacity: 500+ gears per month (based on size and complexity).
Typical Technical Parameters
| Parameter | Standard Range | Remarks |
|---|---|---|
| Module | 0.5 – 20 | Custom modules available upon request |
| Number of Teeth | 5 – 200 | Can be designed for higher tooth counts |
| Pressure Angle | 14.5°, 20°, 25° (or custom) | Per customer specification |
| Precision Grade | DIN 6-8 / AGMA Q9-Q11 | Higher precision negotiable |
| Hardness | HRC 20 – 62 | Through-hardened, case-hardened, etc. |
| Surface Roughness | Ra 0.4 – 0.8 μm | Grinding finish |
| Max OD (mm) | 1,200 | Larger dimensions possible with special fixtures |
Customer Benefits & Advantages
- Enhanced Performance: 0.02 mm grinding tolerance reduces backlash, vibration, and noise — critical for high-speed or high-torque applications.
- Longer Service Life: Precise tooth geometry minimizes uneven wear, extending gear lifespan by up to 30% compared to standard gears.
- Custom Fit Guaranteed: We work from your drawings or reverse-engineer existing parts to ensure perfect integration into your assembly.
- Cost-Effective Solutions: Our in-house heat treatment and grinding capabilities eliminate outsourcing delays and reduce overall project costs.
- Fast Turnaround: With a 10,000-30,000 m² factory and 51-100 experienced workers, we handle urgent orders efficiently.
- Global Shipping: Flexible port options — Shanghai, Lianyungang, Qingdao, Tianjin — ensure timely delivery to worldwide destinations.
Why Choose Henan San Kuang Machinery?
Since our establishment in 2022, we have rapidly grown into a trusted partner for non-standard precision gear manufacturing. In just a few years, we have achieved an annual export value of US$2.5 – 5 million, serving diverse markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the domestic Chinese market. Our factory occupies a spacious 10,000-30,000 square meters, equipped with advanced CNC grinding machines, gear hobbers, and inspection instruments. Every gear undergoes rigorous quality checks, including coordinate measuring machine (CMM) verification and gear analysis reports.
We take pride in our customer-centric approach: from initial design consultation to final delivery, our engineering team supports you with technical advice. Whether you need a single prototype or volume production, we offer flexible quantities and customizable services such as tooth profile optimization, material selection, and heat treatment specifications. Our commitment to standard compliance ensures that every gear meets or exceeds the required industry norms (DIN, ISO, AGMA, or your own standards).
Contact us today with your gear drawing or requirements. Let our precision grinding service bring your non-standard gear to life with a tolerance of 0.02 mm — guaranteed quality, on-time delivery, and competitive pricing.
Frequently Asked Questions (FAQ)
-
What does “non-standard precision gear” mean?
Non-standard gears are custom-designed gears that do not conform to standard module, tooth count, or profile specifications. They are manufactured according to customer drawings or specific application requirements. Our service covers any unique gear you need. -
Can you achieve a tolerance tighter than 0.02 mm?
Yes, for special applications we can achieve tighter tolerances (e.g., 0.01 mm) after evaluation. Please provide your design specifications and we will advise accordingly. -
What materials do you work with?
We commonly use carbon steel (45#), alloy steel (40Cr, 20CrMnTi, 42CrMo), stainless steel (304, 316), and other materials as per your request. We also offer material recommendations based on your operating conditions. -
What is the maximum gear size you can produce?
Our standard maximum outside diameter is 1,200 mm. For larger gears (up to 2,000 mm or more), we can discuss custom solutions with extended lead times. -
Do you provide heat treatment services?
Yes, we offer a full range of heat treatments including carburizing, quenching, tempering, and nitriding to achieve the required hardness and durability. -
How do you ensure quality control?
We perform 100% inspection using CMM, gear measuring centers, hardness testers, and run-out testers. A detailed inspection report is provided with every shipment upon request. -
What are your typical lead times?
Lead time depends on complexity and quantity. For prototypes, it usually takes 15-25 working days. For production orders, 30-45 working days. Express service is available for urgent projects. -
Can you ship to my country?
Absolutely. We ship globally via major ports: Shanghai, Lianyungang, Qingdao, Tianjin. Our logistics team handles all export documentation and ensures safe packaging.
