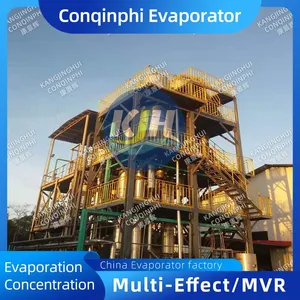

Help CenterDuplex Stainless Steel MVR Evaporator 55kW Compressor for Zero Liquid Discharge Wastewater Treatment
Product Spotlights
Related Products
-
CONQINPHI Easy Maintenance Long Lifespan Energy Saving Mvr Evaporator for Liquid PurificationUS$ 2800 - 76900MOQ: 1 Combo -
Innovative Mvr Evaporator With Advanced Vapor Recompression TechnologyUS$ 2840 - 551000MOQ: 1 Combo
-
Custom - Designed Wastewater Mvr Evaporator to Meet Specific RequirementsUS$ 3270 - 889000MOQ: 1 Combo
-
CONQINPHI Easy Maintenance Long Lifespan Energy Saving Mvr Evaporator for Liquid PurificationUS$ 2800 - 76900MOQ: 1 Combo
-
Conqinphi High Capacity Vacuum Mvr Evaporator for Large - Scale ProductionUS$ 2840 - 64900MOQ: 1 Combo
Qingdao Conqinphi Environmental Technology Group Co., Ltd., a leading manufacturer established in 2015 with a factory area of 10,000-30,000 square meters and an annual export value of US$10-50 million, proudly presents our Duplex Stainless Steel MVR Evaporator with 55kW Compressor. Designed specifically for Zero Liquid Discharge (ZLD) wastewater treatment, this advanced evaporator combines high corrosion resistance, energy efficiency, and intelligent automation to help industries meet stringent environmental regulations while reducing operational costs. Our team of 201-300 dedicated employees ensures top-quality production, and our products are shipped to markets across North America, South America, Europe, Asia, Africa, and Oceania.
Key Features & Technical Specifications
- Duplex Stainless Steel Construction: Offers superior resistance to chloride stress corrosion cracking, pitting, and crevice corrosion, making it ideal for high-salinity and aggressive wastewater streams.
- 55kW High-Efficiency Compressor: Provides stable and reliable Mechanical Vapor Recompression (MVR), reducing energy consumption by up to 70% compared to traditional evaporation methods.
- Zero Liquid Discharge Capability: Recovers up to 95% of water as clean distillate, leaving concentrated solids for disposal or further reuse, helping you achieve complete compliance with discharge regulations.
- PLC Automatic Control System: Equipped with a touchscreen HMI for real-time monitoring of temperature, pressure, feed rate, and other critical parameters, enabling one-person operation and remote troubleshooting.
- Customizable Design: Processing capacity, voltage, cooling method, and pre-treatment configurations can all be tailored to your specific site conditions and wastewater characteristics.
- Robust Safety Features: Includes overpressure protection, low-level alarms, emergency shutdown, and corrosion-resistant components for long-term trouble-free operation.
Technical Parameters (Typical Range)
| Parameter | Specification |
|---|---|
| Evaporation Capacity | 10 – 50 tons/day (customizable) |
| Compressor Power | 55 kW |
| Operating Temperature | 60°C – 90°C (adjustable) |
| Voltage | 380V / 50Hz (3-phase) or as required |
| Material of Construction | Duplex Stainless Steel (UNS S32205 / S31803) |
| Cooling Method | Air-cooled or Water-cooled (optional) |
| Control System | PLC + HMI Touchscreen, remote monitoring available |
| Product Recovery | ≥95% water recovery as distillate |
Detailed Advantages & Benefits
- Energy Efficiency: MVR technology recycles the latent heat of vaporization, consuming only 30-50 kWh per ton of evaporation compared to 100-150 kWh for traditional evaporators. The 55kW compressor is perfectly matched to balance performance and power savings.
- Corrosion Resistance: Duplex stainless steel (with ~22% chromium, 3% molybdenum) withstands high chloride concentrations (up to 1500 ppm Cl⁻) and low pH environments, extending equipment life and reducing maintenance frequency.
- Environmental Compliance: Achieve zero liquid discharge without chemical pre-treatment in many cases, eliminating wastewater discharge fees and potential fines. The system produces high-quality distillate (conductivity
- Compact Footprint: Our integrated skid-mounted design minimizes onsite installation work, requiring only connection to power and piping. Optional modular expansions allow capacity upgrades without replacing the entire system.
- Low Maintenance: Self-cleaning cycles and anti-scaling measures reduce downtime. The durable compressor and stainless steel components require only routine inspections and lubrication changes every 6 months.
- Customization Options: We offer additional pre-treatment (e.g., DAF, UF), post-treatment (e.g., RO polishing), and automation upgrades tailored to your specific wastewater profile (e.g., high TDS, organic content, or variable flow rates).
Trust & Reliability
As a manufacturer with over 9 years of experience (since 2015), Qingdao Conqinphi Environmental Technology Group Co., Ltd. has delivered hundreds of MVR evaporator systems worldwide. Our factory covers 10,000-30,000 square meters and employs 201-300 skilled professionals, ensuring rigorous quality control from raw material inspection to final testing. With an annual export value of US$10-50 million, we have established long-term partnerships in North America, South America, Eastern Europe, Southeast Asia, Africa, the Middle East, Oceania, and beyond. Our products are manufactured under strict adherence to ISO9001, ISO14001, OHSAS18001, and other international standards (HACCP, TL900, SA8000, etc., available upon request). We ship from the major port of Qingdao, Shandong, China, ensuring efficient logistics. Our dedicated after-sales team provides 12-month warranty, spare parts supply, and remote technical support. Choose Conqinphi for a reliable, cost-effective, and environmentally responsible wastewater treatment solution.
Frequently Asked Questions
Q1: What is the typical evaporation capacity range for this MVR evaporator?
A: The base model with a 55kW compressor can handle approximately 10 to 50 tons per day of water evaporation, depending on feed temperature and solids concentration. We can customize the system for higher or lower capacities upon request.
Q2: Can this evaporator handle wastewater with high chloride content (e.g., seawater RO brine)?
A: Yes. The duplex stainless steel construction is specifically chosen for its excellent resistance to chloride-induced stress corrosion cracking (SCC). It can safely handle chloride concentrations up to 1500 ppm at typical operating temperatures. For extreme conditions, we offer super duplex or other alloys.
Q3: What are the electrical requirements and power consumption?
A: Standard voltage is 380V / 50Hz / 3-phase. Total connected load (including feed pump, condenser fan, control system) is approximately 65-75 kW. We can adapt to 440V/60Hz or other voltages with transformer adjustments. The specific energy consumption is around 30-35 kWh per ton of evaporated water under nominal conditions.
Q4: Do you provide installation and commissioning services?
A: Yes. We offer onsite supervision for installation and commissioning by our experienced engineers. Remote assistance via video call is also available. A detailed installation manual and technical documentation are provided with every system.
Q5: What is the warranty period and after-sales support?
A: Standard warranty is 12 months from the date of commissioning. We supply critical spare parts (compressor, valves, sensors) and provide prompt technical support via email, phone, or video conference. Extended warranty and maintenance contracts are available.
Q6: How long does it take to manufacture and deliver?
A: Typical lead time is 30-45 working days after receipt of down payment and final technical approval. Customized designs may require additional 10-15 days. Shipment is via sea from Qingdao port; transit time depends on destination.
Q7: Can your MVR evaporator treat wastewater with organic contaminants (e.g., from food or chemical industries)?
A: Yes, but the system design may need to incorporate anti-fouling measures and possibly pre-treatment (e.g., DAF or biological) to protect the evaporator surface. We will analyze a sample of your wastewater to recommend the optimal configuration.
Q8: Do you have certifications like ISO or CE?
A: Our manufacturing facility is certified under ISO9001, ISO14001, and OHSAS18001. We also hold other certifications (HACCP, TL900, SA8000, etc.) that can be provided upon request. For specific markets like the EU, we can arrange CE marking compliance as an optional service.
Contact Qingdao Conqinphi Environmental Technology Group Co., Ltd. today for a customized proposal. Let us help you achieve zero liquid discharge while saving energy and protecting your bottom line.
