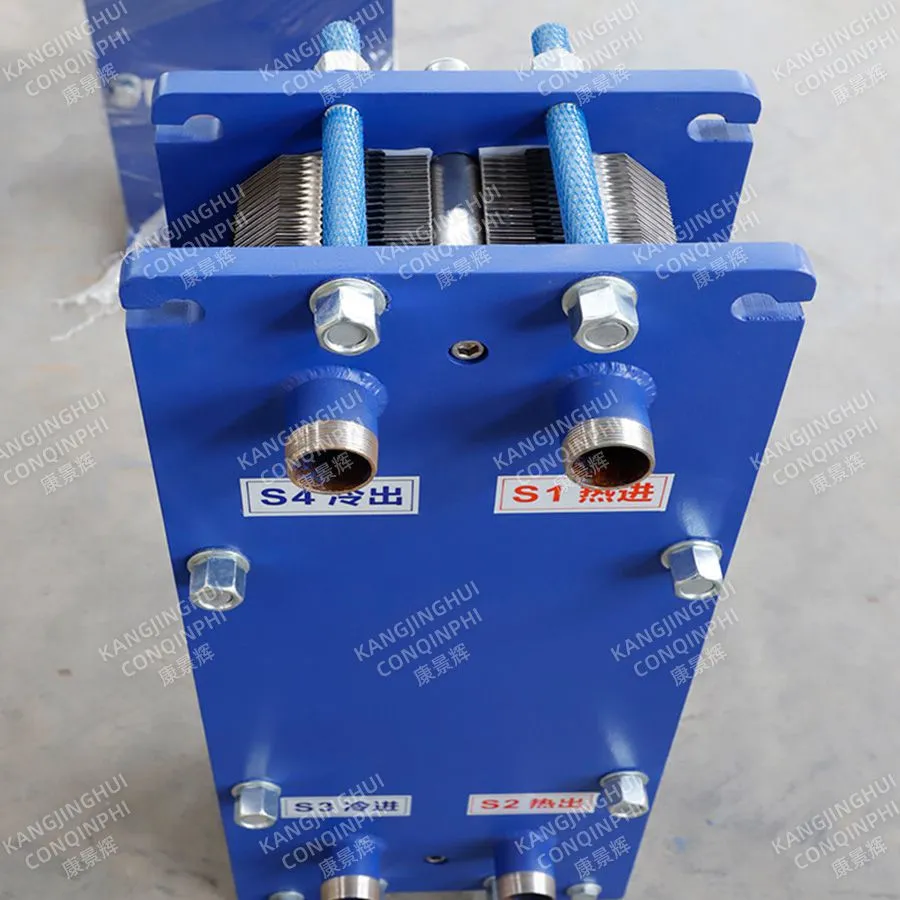

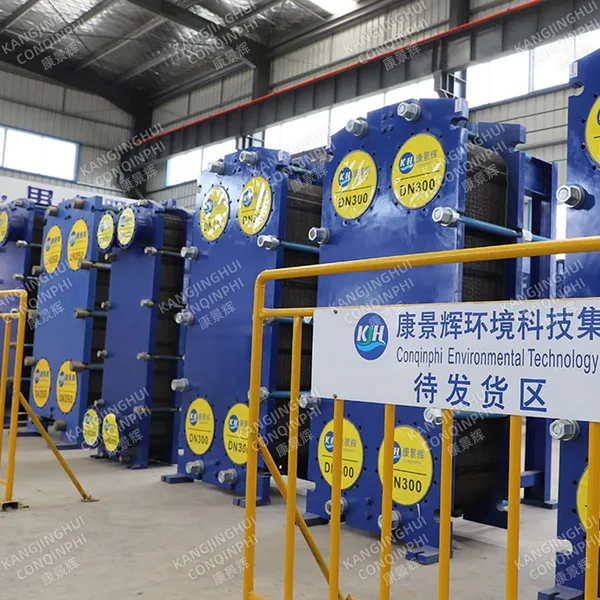

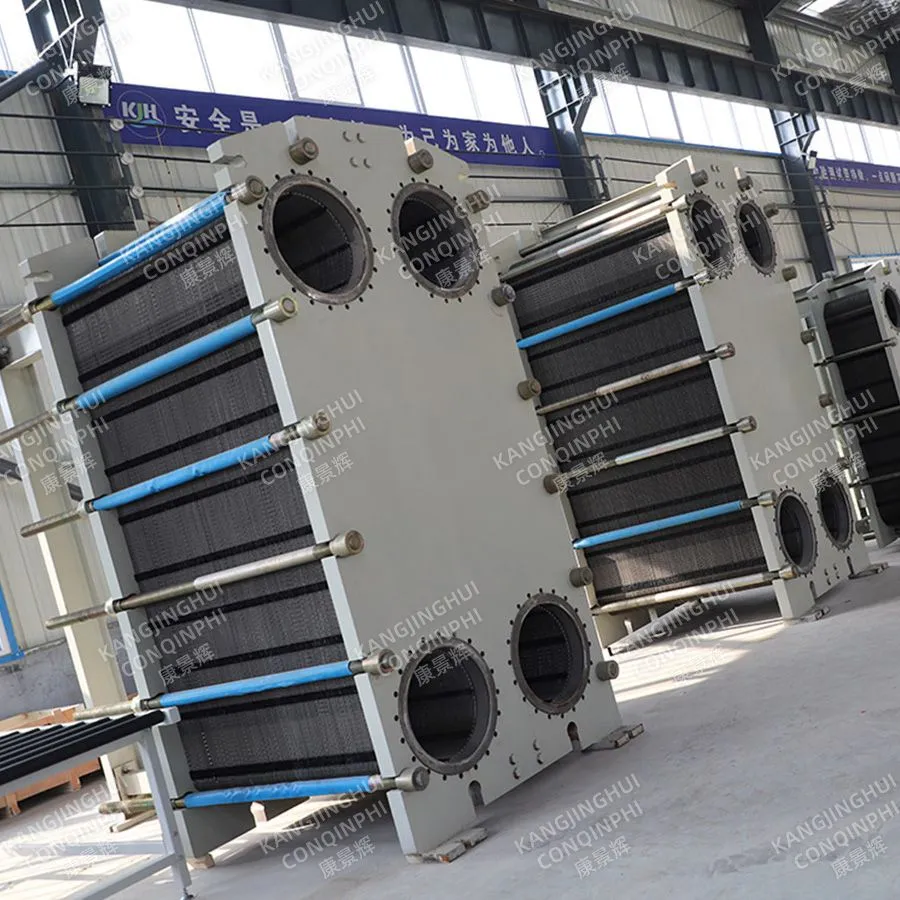

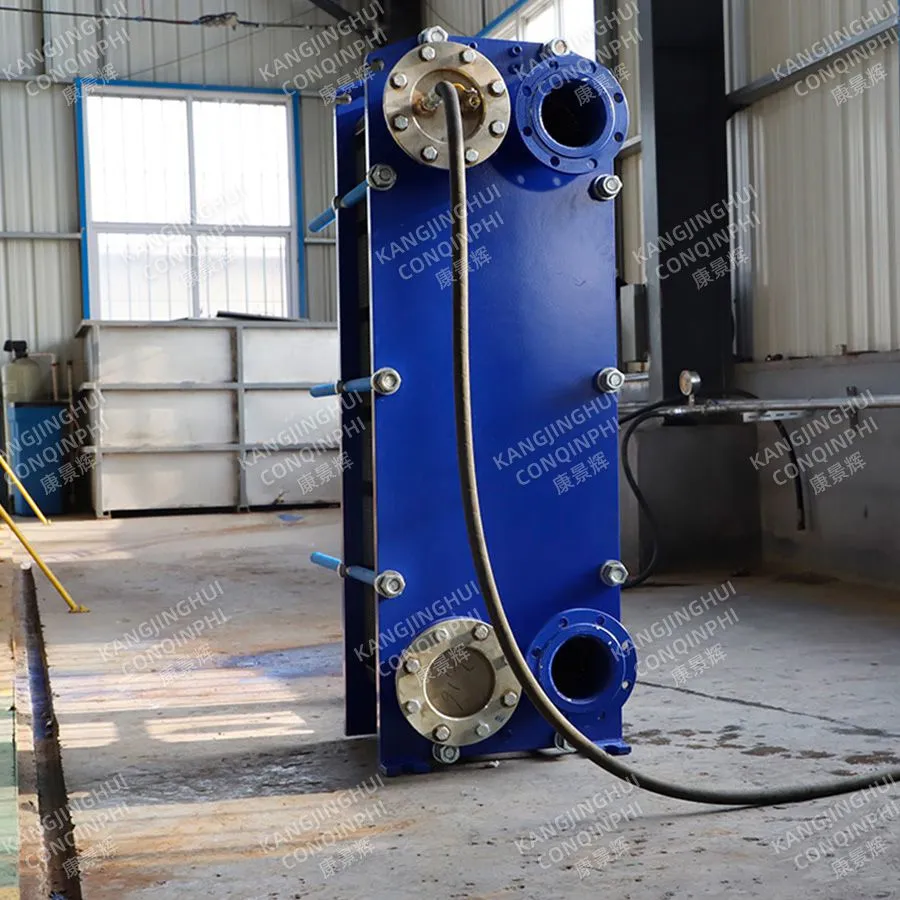

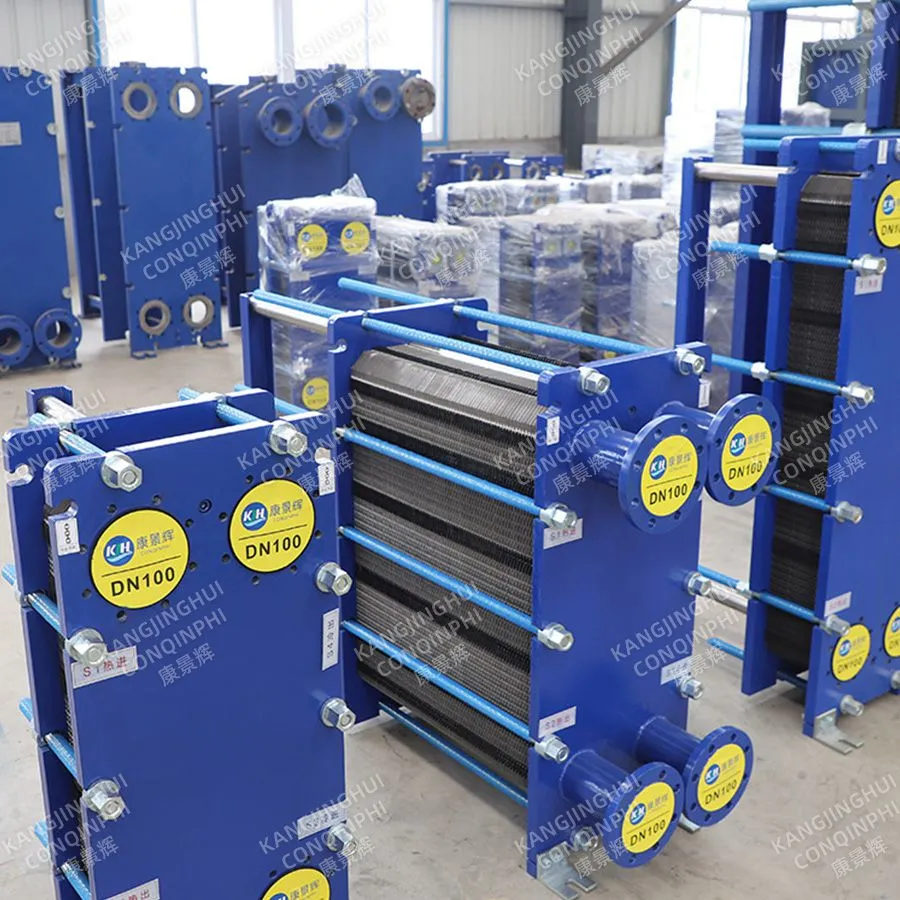

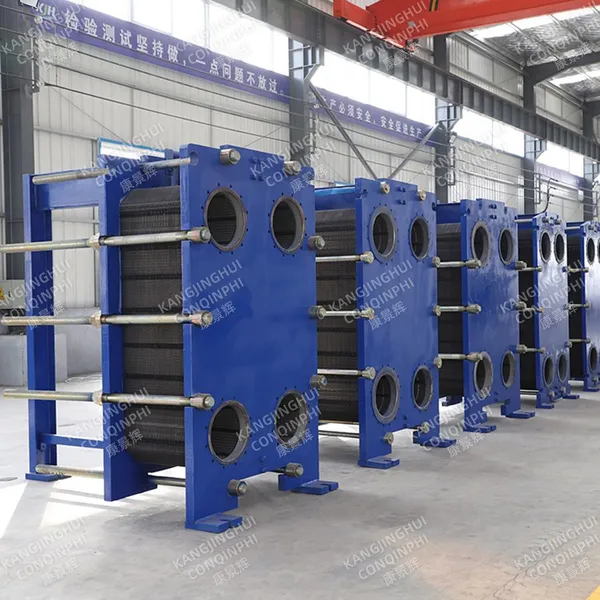

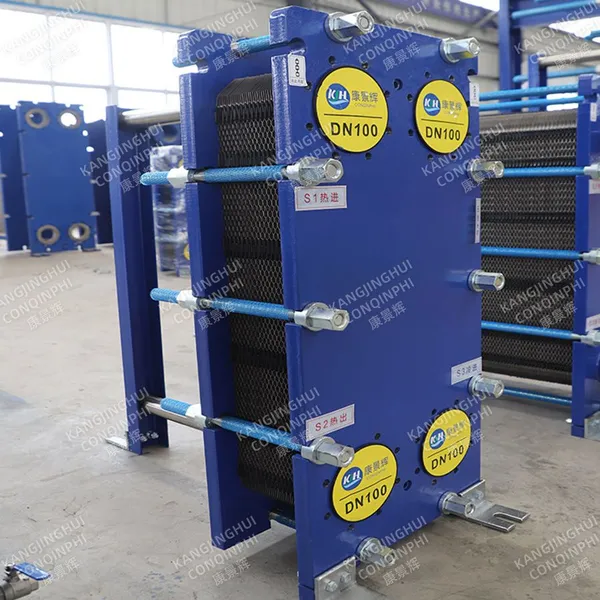

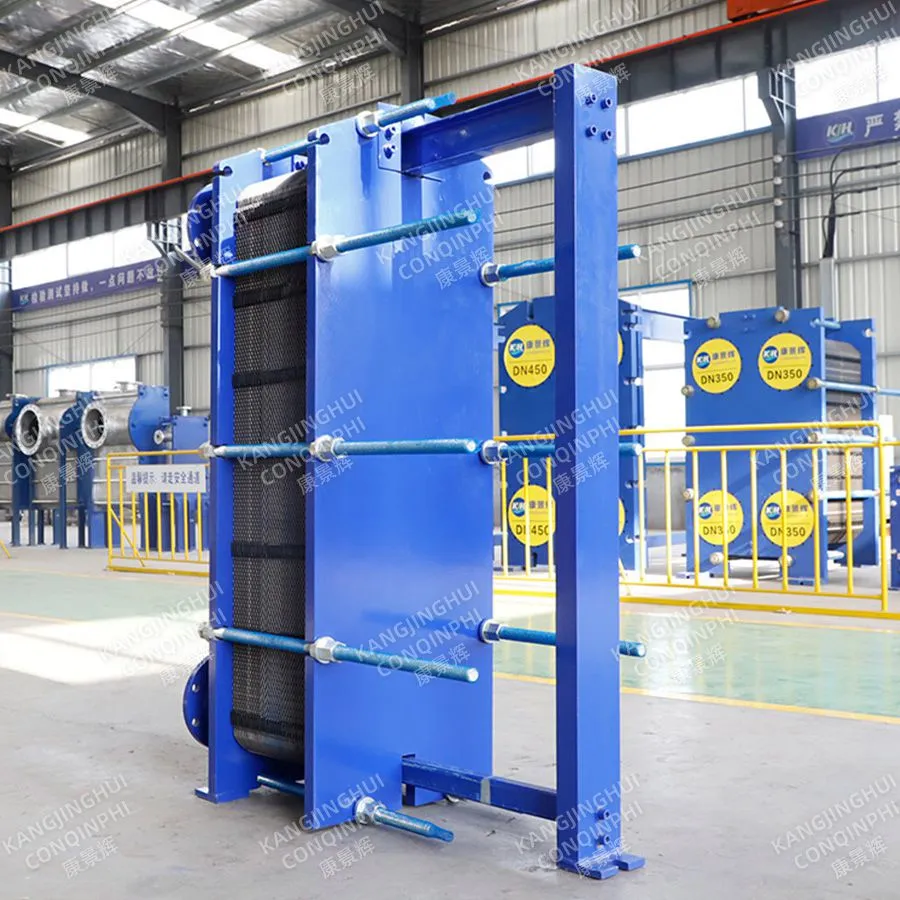

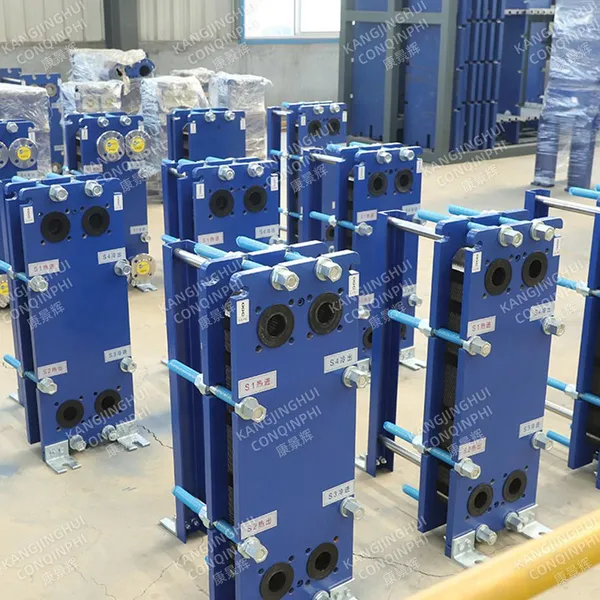

Help CenterHigh Energy Efficiency 304 Stainless Steel Plate Heat Exchanger, 1.0MPa, 150°C for Industry Heat Recovery
Product Spotlights
Related Products
-
High Energy Efficiency Plate Heat Exchanger, Semi-Auto Cleaning Design, 220V Circulation Pump IncludedUS$ 2120 - 6869000MOQ: 1 Combo -
Stainless Steel Heater/Water Heat Exchanger/Plate Type Heat Exchanger ManufacturerNegotiableMOQ: 1 Combo
-
Water-Water / Steam-Water Plate / All-Welded / Flue Gas Heat ExchangerNegotiableMOQ: 1 Combo
-
High Pressure Steam-Water Water-Water Plate Heat ExchangerNegotiableMOQ: 1 Combo
-
Pharmaceuticals/Pesticides/Fine Chemicals Wastewater Plate Heat ExchangerNegotiableMOQ: 1 Combo
Product Overview
As a trusted manufacturer based in Qingdao, China, Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been delivering high-quality industrial solutions since 2015. With a factory spanning 10,000–30,000 square meters and a dedicated team of 201–300 employees, we specialize in energy-efficient heat exchange equipment. Our High Energy Efficiency 304 Stainless Steel Plate Heat Exchanger is engineered for demanding industrial heat recovery applications, offering a robust design rated at 1.0 MPa and 150°C. This product combines superior corrosion resistance with exceptional thermal performance, making it an ideal choice for optimizing energy usage in various industries.
Designed to maximize heat transfer while minimizing pressure drop, this plate heat exchanger utilizes advanced 304 stainless steel plates that ensure long service life even in harsh environments. Its compact footprint and modular construction allow for easy integration into existing systems, whether for waste heat recovery, HVAC, or process heating. By recovering thermal energy that would otherwise be lost, our heat exchanger helps enterprises reduce operational costs and meet sustainability goals.
We pride ourselves on strict quality control, with certifications including HACCP, ISO9001, TL900, and OHSAS18001, among others. Each unit undergoes rigorous testing to ensure compliance with international standards. With an annual export value exceeding US$10 million, our products are trusted across North America, Europe, Southeast Asia, and more.
Key Features & Technical Specifications
- High Thermal Efficiency: Unique plate corrugation design maximizes turbulence, enhancing heat transfer coefficients by up to 30% compared to traditional shell-and-tube exchangers.
- 304 Stainless Steel Construction: Excellent resistance to corrosion, oxidation, and chemical attack, suitable for a wide range of fluids including water, oils, and mild chemicals.
- Compact & Lightweight: Requires minimal installation space, reducing structural support costs.
- Easy Maintenance: Modular plate design allows for quick disassembly, cleaning, and plate replacement without special tools.
- High Pressure & Temperature Rating: Designed for 1.0 MPa (10 bar) operating pressure and 150°C maximum temperature, meeting typical industrial heat recovery requirements.
- Customizable Plate Size & Number: Available in various plate configurations to match specific flow rates and thermal duties.
- Gasket Options: Choose from NBR, EPDM, or Viton gaskets depending on fluid compatibility and temperature range.
| Parameter | Value |
|---|---|
| Material (Plates) | AISI 304 Stainless Steel |
| Material (Gaskets) | NBR / EPDM / Viton (optional) |
| Max Operating Pressure | 1.0 MPa (10 bar) |
| Max Operating Temperature | 150°C (302°F) |
| Plate Thickness | 0.5–0.8 mm (customizable) |
| Connection Size | DN25 – DN150 (threaded or flanged) |
| Heat Transfer Area | 1 – 500 m² per unit (customizable) |
| Design Standards | ASME, PED, GB (upon request) |
Why Choose Our Plate Heat Exchanger for Heat Recovery?
- Energy Savings: Recover up to 90% of waste heat, significantly reducing fuel consumption and carbon footprint.
- Lower Operating Costs: High efficiency translates to smaller heat transfer area requirements, saving on initial investment and maintenance.
- Versatile Applications: Suitable for heat recovery from exhaust gases, hot water, steam condensate, and industrial process streams in sectors like chemical, food processing, petrochemical, and power generation.
- Long Service Life: 304 stainless steel resists corrosion and pitting, with proper maintenance exceeding 10 years of operation.
- Scalable Design: Add or remove plates to adjust capacity without replacing the entire unit.
Trust & Reliability
With over 8 years of manufacturing experience and certifications including HACCP, TL900, QS9000, SA8000, ISO9001, ISO9004, ISO17799, ISO9000, ISO14000, ISO10441, ISO16949, TS16969, ISO19011:2000, OHSAS18001, and others, we ensure every product meets rigorous quality standards. Our factory utilizes advanced production lines and testing facilities, including hydrostatic pressure tests and thermal performance validation. We have exported to more than 20 countries across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and Western Europe, with an annual export value between US$10 million and US$50 million.
Our team of skilled engineers and technicians works closely with clients to customize solutions, from plate pattern selection to gasket material choice. We offer comprehensive after-sales support, including installation guidance, troubleshooting, and spare parts supply. With convenient shipping from Qingdao Port, we ensure fast and reliable delivery worldwide.
Invest in our High Energy Efficiency 304 Stainless Steel Plate Heat Exchanger to boost your industrial heat recovery performance. Contact us today to discuss your specific requirements and request a quotation. Let us help you achieve greater energy efficiency and profitability.
Frequently Asked Questions
Q1: What fluids can be used with this plate heat exchanger?
A: The 304 stainless steel construction is compatible with clean water, demineralized water, glycol mixtures, mineral oils, and many mild chemical solutions. For aggressive media, we recommend upgrading to 316L or titanium plates. Please consult our technical team for specific fluid compatibility.
Q2: How do I clean the heat exchanger plates?
A: The plate pack can be easily disassembled by loosening the tightening bolts. Each plate can be cleaned with a soft brush and mild detergent. For fouling deposits, a chemical cleaning solution (e.g., nitric acid for scale) may be circulated without disassembly. Always follow the manufacturer's guidelines.
Q3: Can I customize the number of plates or connection sizes?
A: Absolutely. We offer fully customizable heat exchangers. You can specify the required heat transfer area, connection type (threaded or flanged), and port sizes. Our engineers will design the unit to meet your exact process parameters.
Q4: What is the typical lifespan of this heat exchanger?
A: With proper maintenance (regular cleaning and gasket replacement every 3-5 years), the 304 stainless steel plates can last 10-15 years or longer in non-corrosive environments. The unit's frame and tightening bolts are designed for repeated use.
Q5: Do you provide installation and commissioning support?
A: Yes, we offer detailed installation manuals and can arrange remote or on-site technical support if needed. Our after-sales team is available to answer any questions during start-up.
Q6: What certifications does your product hold?
A: Our manufacturing facility is certified with multiple standards, including ISO9001, HACCP, TL900, SA8000, and OHSAS18001. Individual heat exchanger units can be designed and tested to ASME, PED, or other codes as requested.
Q7: What is the lead time for a standard unit?
A: For standard models with common plate materials and gaskets, lead time is typically 15–25 working days. Customized orders may require 30–45 days depending on complexity. We can expedite urgent projects upon request.
Q8: How do I select the right gasket material?
A: Gasket selection depends on operating temperature and fluid chemistry. NBR (nitrile) is suitable for oils and hydrocarbons up to 120°C. EPDM is ideal for water, steam, and glycol up to 150°C. Viton offers high chemical resistance for aggressive fluids up to 200°C. Our team can help you choose the best option.
