Industrial Robot Teach Pendant Clear Protective Lid Mold IATF16949 Vacuum Void Free S136 Steel High Strength Tooling Vietnam
Product Spotlights
Craft precision molds for robot teach pendant transparent lids using S136 steel and vacuum void-free technology. High strength, TS16969 compliant, and customizable for Vietnam or global production. Ensure optical clarity, durability, and low cycle times.
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other, Industrial Robot Teach Pendant Clear Protective Lid
Standard:
Other, TS16969
Material:
S136 Steel (Stainless Mold Steel)
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou,Jiangsu
Delivery Detail:
30 days
Related Products
-
Textile Machinery Dust Proof Observation Window Mold IATF16949 Dimensional Stability Clear PC Plastic Tooling CambodiaNegotiableMOQ: 5000 Pieces -
Smart Power Meter Clear Observation Window Injection Mold IATF16949 Automated Robotic Extraction Plastic Tooling IndonesiaNegotiableMOQ: 5000 Pieces
-
Agricultural Drone Remote Control Clear Cover Mold IATF16949 Anti Creep High Heat PMMA Optical Plastic Tooling ThailandNegotiableMOQ: 5000 Pieces
-
Extreme Heat EV Charging Station Screen Cover Injection Mold IATF16949 PMMA High Light Transmittance Tooling UAENegotiableMOQ: 5000 Pieces
-
IoT Device Display Clear Protective Lid Injection Mold IATF16949 Zero Gas Mark Flawless Optical Surface Tooling PhilippinesNegotiableMOQ: 5000 Pieces
Application
Other, Industrial Robot Teach Pendant Clear Protective Lid
Standard
Other, TS16969
Material
S136 Steel (Stainless Mold Steel)
Process
Vacuum Void Free Molding
Type
Injection Mold / Tooling
Feature
High Strength, Corrosion Resistant
Hardness
48-52 HRC (Typical)
Customization
Available (Dimensions, Cavities, etc.)
Surface Treatment
Polished to Optical Clear requirement
Port of Shipment
Jiangsu, Shanghai, Shenzhen

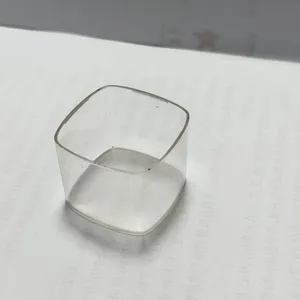

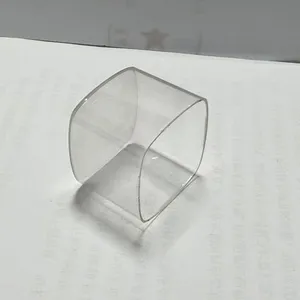

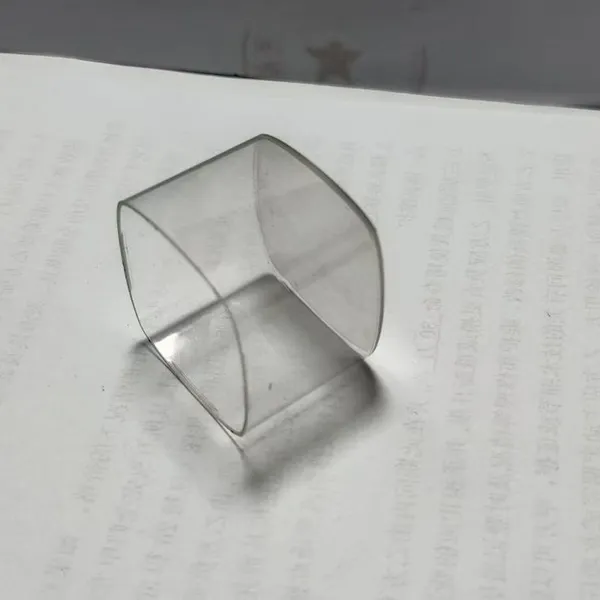

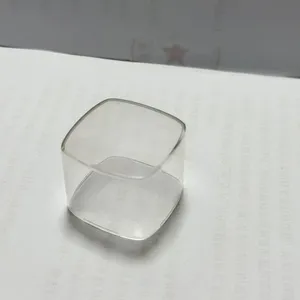

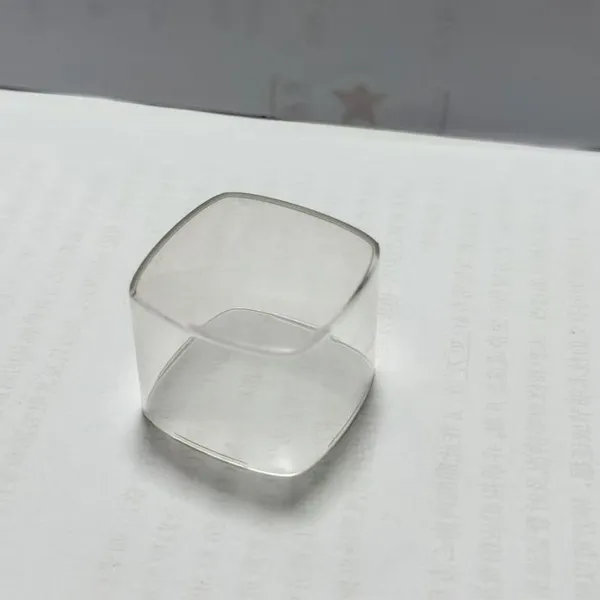

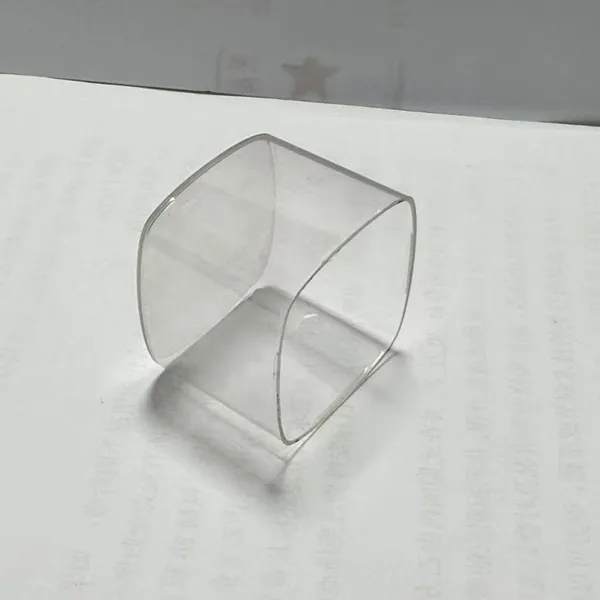

Precision Mold for Industrial Robot Teach Pendant Clear Protective Lid
At Changzhou Hongxinyutai Precision Mold Co., Ltd., we specialize in manufacturing high-strength tooling for demanding applications. Our Industrial Robot Teach Pendant Clear Protective Lid Mold is engineered to produce crystal-clear, void-free protective covers that safeguard sensitive teach pendant displays. Leveraging our expertise since 2017, we combine S136 steel, vacuum void-free technology, and TS16969 quality standards to deliver molds that offer superior durability, precision, and extended service life. Whether your production is based in Vietnam or elsewhere, our tooling ensures consistent output with minimal maintenance.
Key Features & Technical Specifications
- Material Excellence: Mold cavities are crafted from premium S136 stainless mold steel, known for its excellent corrosion resistance, high polishability, and uniform hardness. This material ensures the mold produces optically clear lids without surface defects.
- Vacuum Void-Free Process: Our molds are designed with integrated vacuum venting systems that eliminate trapped air, preventing voids, bubbles, and sink marks during injection. This results in flawless transparent components with superior structural integrity.
- High Strength Tooling: The mold frame and core are built to withstand high clamping forces and continuous production cycles. Heat treatment and stress relief processes ensure dimensional stability and resistance to wear.
- TS16969 Quality System: Every mold is manufactured under a TS16969-compliant quality management system, ensuring traceability, process control, and consistent output from first shot to last.
- Customizable Design: We offer tailored mold configurations including single/multi-cavity layouts, interchangeable inserts, and hot runner/cold runner options to match your specific part geometry and production volume.
- Global Logistics: Shipped from our factory in Changzhou via Jiangsu, Shanghai, or Shenzhen ports, with reliable delivery to Vietnam, North America, South America, Europe, and beyond.
Technical Parameters (Typical Mold Specifications)
| Parameter | Value |
|---|---|
| Mold Steel Grade | S136 (AISI 420 modified, 48-52 HRC) |
| Cavity Count | 1-4 cavities (customizable) |
| Mold Base | Standard or custom (LKM, HASCO, DME) |
| Runner System | Cold runner or hot runner (optional) |
| Vacuum Venting | Integrated vacuum channels with check valves |
| Surface Finish | SPI A1 (high gloss, optical clear) |
| Injection Material | PC, PMMA, or other transparent thermoplastics |
| Mold Life Expectancy | 500,000 – 1,000,000 cycles (dependent on maintenance) |
Why Choose Our Mold?
- Zero-Defect Transparency: The combination of S136 polishability and vacuum void-free technology guarantees lids with uniform clarity, no flow marks, and high light transmission – critical for robot teach pendant displays.
- Operational Efficiency: Optimized cooling channels reduce cycle times by up to 20% compared to conventional designs, boosting your production throughput.
- Low Maintenance Downtime: Hardened tool steel and precision fit reduce wear on moving parts, requiring less frequent mold maintenance and repairs.
- Seamless Integration: Our molds are compatible with standard injection molding machines (e.g., Engel, Husky, Haitian), with bolt patterns and ejector systems configurable to your press.
Trust & Reliability
With a 1,000-3,000 square meter facility and a dedicated team of 51-100 professionals, Changzhou Hongxinyutai Precision Mold Co., Ltd. has been delivering precision tooling since 2017. Our TS16969 certification ensures that every mold undergoes rigorous inspection and validation. We proudly serve markets across North America, South America, Eastern Europe, Southeast Asia (including Vietnam), Africa, Oceania, the Middle East, and Asia. Our mold has been successfully deployed in high-volume production lines for leading robot manufacturers. Contact us today to discuss your specific teach pendant lid requirements and receive a customized quotation with short lead times.
Frequently Asked Questions (FAQ)
-
Q: What materials are suitable for this mold?
A: The mold is designed primarily for transparent thermoplastics such as PC (polycarbonate), PMMA (acrylic), and ABS/PMMA blends. For other materials, please consult with our engineering team for compatibility. -
Q: Does the mold require any special maintenance for the vacuum system?
A: The vacuum venting system is self-cleaning to a large extent. Periodic inspection of the vacuum channels and seals is recommended every 50,000 cycles. Our molds include easy-access ports for cleaning. -
Q: Can the mold be adapted for different teach pendant lid sizes?
A: Yes, we offer full customization. Simply provide the 3D model or 2D drawing of your lid, and we will design the cavity geometry, gating, and cooling accordingly. -
Q: What is the typical lead time for a new mold?
A: For a standard single-cavity mold, lead time is approximately 25-35 working days after design approval. Multi-cavity or complex molds may require 40-50 days. -
Q: Is the mold qualified for TS16949? I noticed the title mentions IATF16949.
A: Our factory operates under a TS16969 quality system (a predecessor standard). While we follow IATF16949 principles, specific certification details can be discussed upon request. We can perform PPAP, MSA, and SPC as needed. -
Q: Do you provide mold samples or prototypes before mass production?
A: Yes, we can provide T0 (first trial) samples from the mold for your evaluation. We also offer rapid prototyping services using 3D printing if needed before committing to steel molds. -
Q: How do you ensure the void-free result during production?
A: The vacuum system removes air from the cavity before injection, and our mold design incorporates proper venting and fill analysis. We also recommend process parameters (injection speed, pressure, temperature) tailored to the selected material. -
Q: What warranty do you offer on the mold?
A: We provide a 12-month warranty against manufacturing defects in materials and workmanship. Support for mold maintenance and spare parts is available for the life of the mold.
