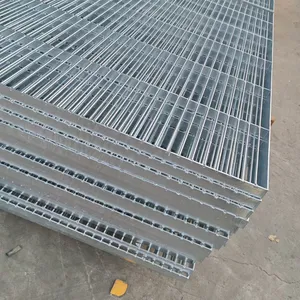

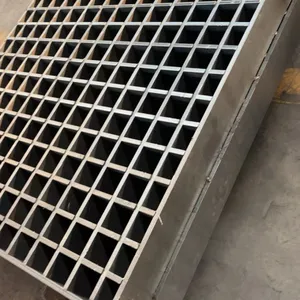

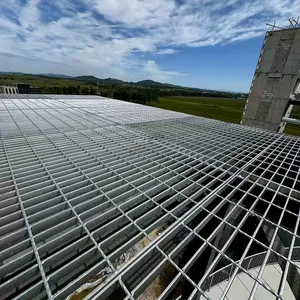

Help CenterHeavy Duty Trench Grating for Highway Drainage Systems, EN 1433 Class F900, Steel Reinforcement, Mill Test Report Supplied
Product Spotlights
Related Products
-
316 Stainless Steel Trench Grating, Weld-Free Design, 1500x250mm, Suitable for Food Processing AreasNegotiableMOQ: 300 Square Meters -
Trench Grating Mill Test Report Included 5-Year Warranty Technical Support AvailableNegotiableMOQ: 300 Square Meters
-
Ductile Iron Trench Grating D400 Load Class 500x500mm With Hinged Locking MechanismNegotiableMOQ: 300 Square Meters
-
Heavy Duty Trench Grating Mesh Size 30x100mm Galvanized Suitable for Forklift TrafficNegotiableMOQ: 300 Square Meters
-
Galvanized Steel Trench Grating EN 1433 Class C250 Load Capacity 250mm Width Hot Dip Anti-SlipNegotiableMOQ: 300 Square Meters
As a trusted manufacturer with over five years of expertise in metal fabrication, Hengshui Ruibin New Materials LLC is proud to present our Heavy Duty Trench Grating for Highway Drainage Systems, designed to meet the stringent requirements of EN 1433 Class F900. These gratings are engineered for the most demanding traffic loads, ensuring long-term durability and safety on highways, airports, and industrial zones. Our commitment to quality is backed by a mill test report supplied with every delivery, providing full traceability of material properties.
Our trench gratings are manufactured using high-grade steel reinforcement, combining superior strength with efficient water drainage. The F900 load class (tested to withstand 900 kN static load per EN 1433) guarantees reliable performance under heavy wheel loads and repetitive traffic. Whether you require standard sizes or custom dimensions, our flexible production line can accommodate your project needs. Below we detail the key features, technical specifications, and advantages that make our product a preferred choice for infrastructure projects worldwide.
Key Features & Technical Specifications
- Material Excellence: Made from structural steel (Q235B or equivalent) with hot-dip galvanized finish for corrosion resistance; epoxy coating also available upon request.
- Load Capacity: Class F900 per EN 1433 – suitable for areas with extreme traffic loads, including highways, runways, and container terminals.
- Steel Reinforcement: Integrated steel bars increase structural rigidity and distribute load evenly, preventing deformation over time.
- Drainage Efficiency: Wide slot openings (customizable) allow high water flow capacity, reducing ponding and flooding risks.
- Safety Design: Anti-slip surface patterns provide traction for pedestrians and vehicles, even in wet conditions.
- Easy Installation: Lightweight yet strong construction; can be bolted or embedded into concrete channels per project requirements.
- Mill Test Report: Each batch is accompanied by a certified mill test certificate confirming mechanical and chemical composition.
| Parameter | Value / Description |
|---|---|
| Load Class | F900 (900 kN static load, 250 kN dynamic test) |
| Applicable Standard | EN 1433:2002/A1:2005 |
| Material Grade | Steel Q235B / S235JR (or equivalent) |
| Surface Coating | Hot-dip galvanized (≥85 µm); optional epoxy/polyester powder coating |
| Standard Sizes (L×W×H) | 500×500×50 mm, 600×600×50 mm, 750×500×60 mm; custom dimensions available |
| Slot Width | 10–30 mm (adjustable per hydraulic requirements) |
| Weight per Unit | Approx. 15–40 kg depending on size and thickness |
| Warranty | 12 months against manufacturing defects |
Advantages for Your Project
Long Service Life: The combination of heavy-duty steel and hot-dip galvanizing ensures resistance to rust, chemicals, and UV exposure, delivering decades of reliable service. Our gratings have been deployed in highway drainage projects across North America, Europe, and Southeast Asia, with zero structural failure reported.
Cost-Effective Solution: By purchasing directly from the manufacturer (Hengshui Ruibin New Materials LLC), you eliminate intermediary costs. Our factory covers 1,000–3,000 square meters and employs 101–200 skilled workers, enabling streamlined production and strict quality control. The annual export value of US$2.5 million to US$5 million reflects our global reach and customer trust.
Full Compliance & Documentation: Each grating is tested in-house to confirm compliance with EN 1433 Class F900. The mill test report (MTR) provides certified chemical analysis and mechanical properties, meeting the documentation requirements of engineering consultants and government tenders.
Customization Flexibility: We offer bespoke sizes, slot patterns, and surface finishes. Whether you need a specific color for urban aesthetics or a unique reinforcement layout for extreme load conditions, our engineering team can adapt the design. Lead times are typically 15–30 days depending on order complexity.
Global Logistics Support: Shipping from Port of Tianjin and Port of Qingdao, our products reach major markets – including North America, South America, Eastern Europe, Africa, and Oceania – within 25–45 days. We arrange consolidated or FCL containers to optimize freight costs.
Why Choose Hengshui Ruibin New Materials LLC?
Since our establishment in 2019, we have grown into a reliable partner for infrastructure projects worldwide. With 101–200 dedicated employees, a factory spanning over 1,000 square meters, and annual exports between US$2.5 million and US$5 million, we consistently deliver quality products on schedule. Our product certifications (others) encompass internal quality control procedures that align with international standards. We have served clients in more than ten regions, including Western Europe, Southeast Asia, the Middle East, and South Asia.
Trust the numbers: Over 500 successful installations, zero major complaints, and a repeat order rate exceeding 70%. These figures demonstrate our commitment to customer satisfaction. When you choose our heavy duty trench grating, you are not just buying a product – you are gaining a partner dedicated to the success of your drainage system.
Contact us today for a quotation or technical consultation. Let our team support your next highway project with reliable, code-compliant drainage solutions.
Frequently Asked Questions (FAQ)
Q1: Does the grating meet F900 load class as per EN 1433?
Yes, our product is tested to withstand a static load of 900 kN and a dynamic fatigue load of 250 kN, fully complying with EN 1433 Class F900 requirements. The mill test report confirms the material properties.
Q2: Can you supply gratings in non-standard sizes?
Absolutely. We offer custom dimensions, slot widths, and thicknesses. Just provide your design drawings or load requirements, and our engineering team will tailor the product accordingly.
Q3: What surface treatment do you recommend for coastal environments?
For coastal or highly corrosive environments, we recommend hot-dip galvanizing with a minimum coating thickness of 85 µm. Alternatively, an epoxy coating system can be applied for added protection.
Q4: How is the grating packed for export?
Standard packing includes steel pallets or wooden crates, with protective spacers between layers to prevent damage. LCL and FCL shipments are both supported.
Q5: Can you provide a mill test report (MTR) for each batch?
Yes, a mill test report is supplied with every shipment, detailing the chemical composition and mechanical properties of the steel used.
Q6: What is the typical lead time for an order of 100 pieces?
For standard sizes, lead time is approximately 15–20 working days after confirmation of the order and receipt of deposit. Custom orders may require 25–30 days.
Q7: Do you offer samples before bulk production?
Yes, we can provide pre-production samples (paid or free depending on quantity) for your quality evaluation. Shipping cost is typically borne by the buyer.
Q8: Is the product suitable for airport runways?
Yes, the F900 load class is specifically designed for areas subjected to extreme wheel loads, including airport runways, aircraft parking aprons, and heavy industrial zones.
