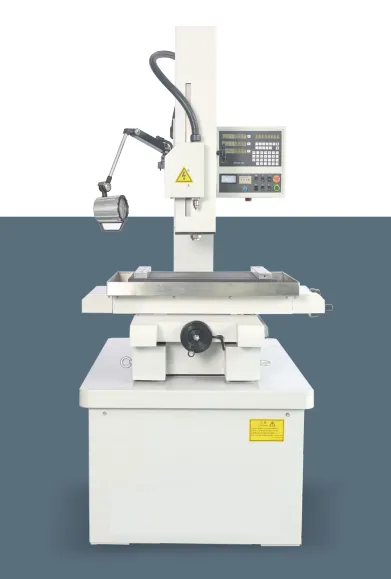

Deep Hole EDM Drilling Machine for 0.3mm to 3mm Diameter, 60A Power, 0.05mm Positioning
Product Spotlights
Suzhou Excellence’s Deep Hole EDM Drilling Machine combines 60A power, 0.05mm positioning, and 0.3-3mm diameter capability. Ideal for precision micro-holes in molds, aerospace, and medical parts. ISO9001 certified, proven global export, customizable depth and electrode options, low wear, and intuitive CNC control. Boost productivity with reliable, cost-effective drilling.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Hole Diameter Range:
0.3mm – 3mm
Power Supply:
60A
Positioning Accuracy:
0.05mm
Payment & Shipping
Payment Methods:
Port of Shipment:
fob Shanghai
Delivery Detail:
7 days
Related Products
-
Precision EDM Drilling for Aerospace Components, High Speed Drilling, Consistent Results on TitaniumNegotiableMOQ: 1 Set -
Factory Direct EDM Drilling Machine With Free Operator Training and Maintenance Kit, Standard CompliantNegotiableMOQ: 1 Set
-
CNC EDM Drilling Machine With Servo Motor, 0.1mm Accuracy, 400mm Stroke for Precision MachiningNegotiableMOQ: 1 Set
-
EDM Drilling Machine for Mold Manufacturing, Efficient Hole Drilling in Hardened Steel up to HRC60NegotiableMOQ: 1 Set
-
220V Single Phase EDM Drilling Machine With 500mm Table Travel, Max 300mm Hole DepthNegotiableMOQ: 1 Set
Hole Diameter Range
0.3mm – 3mm
Power Supply
60A
Positioning Accuracy
0.05mm
Max Machining Depth
Up to 300mm (customizable)
Electrode Material
Copper / Graphite (optional)
Workpiece Material
Conductive metals (steel, carbide, etc.)
Control System
PLC with touch screen (programmable)
Machine Weight
Approx. 1800kg
Coolant Filtration
Paper filter system (auto-renewable)
Application
Mold dies, aerospace, medical implants
Suzhou Excellence Intelligent Technology Co., LTD, established in 2013, specializes in precision EDM solutions. Our Deep Hole EDM Drilling Machine is engineered for drilling micro-holes from 0.3mm to 3mm diameter with a powerful 60A power supply and 0.05mm positioning accuracy. Whether you are crafting intricate dies, aerospace components, or medical implants, this machine delivers consistent, high-quality results. Backed by our ISO9001-certified production facility (3,000-5,000 m²) and global export experience, this machine is built to enhance your productivity and reduce operational costs.
Key Features & Technical Advantages
- Precision Servo Feed System – Ensures stable electrode advancement and consistent spark gap, achieving 0.05mm positioning accuracy even at depths exceeding 300mm.
- 60A Transistor Pulse Generator – Delivers high-frequency, low-wear pulses for fast drilling and minimal electrode consumption.
- Automatic Dielectric Circulation – Built-in high-pressure pump and efficient filtration system flush debris instantly, preventing re-strike and improving surface finish.
- Intuitive CNC Control – Touchscreen interface with programmable depth, retraction, and spark parameters; supports multiple hole patterns (circle, line, matrix).
- Robust Cast Iron Structure – Vibration-dampening base ensures long-term rigidity and thermal stability for continuous heavy-duty operation.
- Low Maintenance Design – Sealed guide rails, automatic lubrication, and easily replaceable filter cartridges reduce downtime.
Technical Specifications
| Parameter | Value |
| Hole Diameter Range | 0.3 – 3 mm |
| Power Output | 60 A (peak) |
| Positioning Accuracy | ±0.05 mm |
| Max. Drilling Depth | 300 mm (standard, customizable up to 500 mm) |
| Electrode Size | φ0.3 – φ3 mm (copper or graphite) |
| Workpiece Dimensions (max.) | 800 × 600 × 400 mm |
| Dielectric Fluid | Deionized water or EDM oil (optional) |
| Machine Weight | ~ 1,800 kg |
| Power Supply | 3-phase, 380V / 50 Hz (customizable) |
Customer Benefits
- High Aspect Ratio Drilling – Achieve depth-to-diameter ratios up to 100:1 without deviation, ideal for cooling channels in mold dies.
- Reduced Operating Costs – Low electrode wear (less than 1% volumetric loss) and fast cycle times (e.g., 1mm hole through 50mm steel in under 3 minutes).
- Versatile Material Compatibility – Drill hardened steels, tungsten carbide, titanium alloys, stainless steel, and exotic conductive materials.
- User-Friendly Maintenance – Automatic filter replacement alert, accessible guide rails, and self-diagnostic error reporting.
- Tailored Configurations – Optional rotary spindle, multi-electrode changer, and custom clamping fixtures available upon request.
Trust & Reliability
With over a decade of experience in the EDM industry, Suzhou Excellence Intelligent Technology Co., LTD has delivered more than 500 machines to customers across 15+ global markets including North America, Europe, and Southeast Asia. Our factory holds ISO9001:2015 certification and operates a strict quality control system – each machine undergoes 48-hour continuous running tests before shipment. Our annual export value of US$5-10 million reflects the trust our clients place in our equipment. We provide comprehensive after-sales support: remote troubleshooting, spare parts within 48 hours, and on-site training options. Contact us today to arrange a trial or quote – let this machine transform your deep hole drilling challenges into efficient, precision solutions.
Frequently Asked Questions (FAQ)
-
Q: What materials can this machine drill?
A: It can drill any electrically conductive material, including tool steel, stainless steel, hardened alloys, carbide, titanium, and copper. Non-conductive materials like ceramics require a conductive coating and are not recommended. -
Q: What is the smallest and largest hole diameter?
A: Standard range is 0.3 mm to 3 mm. For diameters below 0.3 mm or above 3 mm, please contact us for customized electrode holders and power settings. -
Q: How deep can it drill with 0.3 mm diameter?
A: With optimized parameters, you can achieve depths up to 30 mm (ratio 100:1). For deeper holes, a larger start diameter or pecking cycle may be required. -
Q: Does the machine come with a dielectric filtration system?
A: Yes, it includes an automatic paper filter unit with a fine filtration level of 5 microns. Optional magnetic separators and chiller are available for heavy duty applications. -
Q: Can I program a series of holes automatically?
A: Absolutely. The CNC control supports multi-hole pattern programming (linear, circular, matrix). You can set X-Y coordinates, depth, retract steps, and discharge parameters for each hole. -
Q: What is the electrode wear rate?
A: Under normal conditions (copper electrode, 60A, clean dielectric), the volumetric electrode wear is less than 1%. Using graphite electrodes can further reduce wear but may increase surface roughness. -
Q: Do you provide installation and training?
A: Yes. We offer on-site installation and training for international customers (travel expenses apply). Remote online training via video call is also available at no extra charge. -
Q: What warranty comes with the machine?
A: We provide a 12-month warranty covering defects in materials and workmanship. Extended warranty plans are available upon request.
