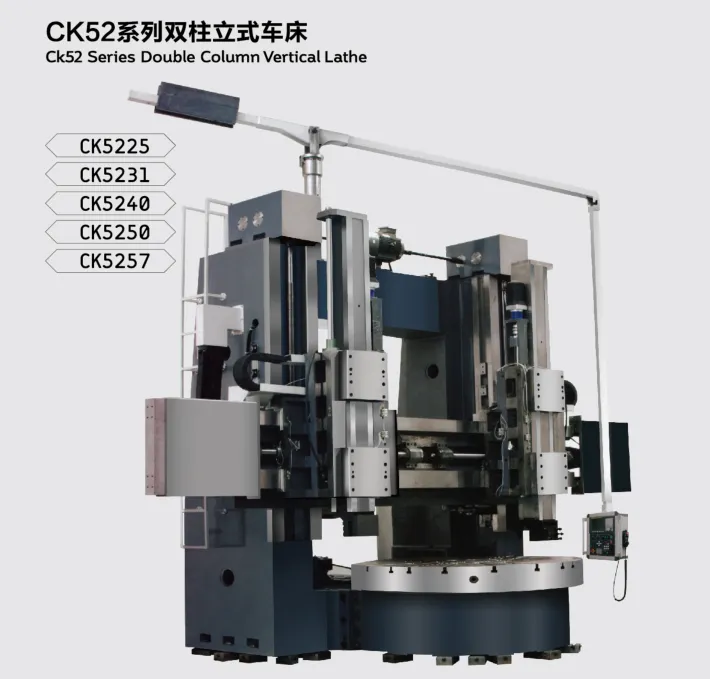

Help CenterCNC Vertical Lathe for Aerospace Components Precision Turning Heavy Workpieces
Product Spotlights
Related Products
-
Two-Axis CNC Vertical Lathe With 10-Station Tool Turret and Enclosed GuardingNegotiableMOQ: 1 Unit -
CNC Vertical Lathe 30kW Spindle Power 20-2000rpm Variable Speed Iron BedNegotiableMOQ: 1 Unit
-
CNC Vertical Lathe Factory Tested With Mill Test Report Standard Compliant DesignNegotiableMOQ: 1 Unit
-
40HP Spindle CNC Vertical Lathe 20-Inch Chuck 12-Station Turret PLC ControlNegotiableMOQ: 1 Unit
-
CNC Vertical Lathe With 1-Year Warranty Free Operator Training On-Site InstallationNegotiableMOQ: 1 Unit
Welcome to Suzhou Excellence Intelligent Technology Co., LTD — your trusted partner in precision machining solutions since 2013. Our CNC Vertical Lathe for Aerospace Components Precision Turning Heavy Workpieces is engineered to meet the rigorous demands of aerospace manufacturing, where precision, reliability, and efficiency are non-negotiable. Built with advanced technology and backed by our ISO9001-certified quality management system, this machine delivers consistent performance for turning large, complex workpieces such as turbine discs, engine casings, and structural rings. Whether you need to machine titanium alloys, Inconel, or high-strength steels, our vertical lathe offers the rigidity and accuracy required to achieve tight tolerances and superior surface finishes. With annual export values reaching US$5–10 million and a factory spanning 3,000–5,000 square meters, we have the capacity and expertise to support global aerospace clients. Discover how our CNC vertical lathe can elevate your production capabilities.
Key Features & Technical Specifications
Our CNC vertical lathe is specifically designed for heavy-duty precision turning of aerospace components. Below are the standout features that set it apart:
- High-Rigidity Structure: The machine bed is made from Mechanite cast iron with ribbed reinforcements, providing exceptional vibration damping and thermal stability. This ensures long-term accuracy even when machining tough aerospace alloys.
- Dual Ball Screws & Preloaded Linear Guides: All axes use premium ball screws with preloaded linear roller guides for smooth, backlash-free motion. Positioning accuracy of ±0.005 mm and repeatability of ±0.003 mm are achievable.
- Powerful Spindle Drive: Equipped with a high-torque spindle motor (37–75 kW) that delivers constant torque across a wide speed range (10–2000 rpm). This allows for efficient cutting of both heavy roughing and fine finishing operations.
- Flexible Turret Options: Choose from 12-station hydraulic turrets or VDI turrets to accommodate various tooling configurations. Quick tool change reduces setup time and increases productivity.
- Advanced Control System: The machine is compatible with Siemens 828D or Fanuc 0i-TF control systems (optional), offering intuitive programming, powerful simulation, and real-time monitoring. Remote diagnostics are available.
- Integrated Chip Management: A built-in chip conveyor and coolant system efficiently remove chips and maintain temperature stability, prolonging tool life and improving surface quality.
- Safety & Compliance: Fully enclosed guarding, interlocks, and CE-compliant safety features ensure operator protection. The machine meets international standards for industrial machinery.
Technical Parameters (Sample Configuration)
| Parameter | Value |
|---|---|
| Max. Turning Diameter | 2400 mm |
| Max. Turning Height | 1600 mm |
| Spindle Power | 37 kW – 75 kW (optional) |
| Spindle Speed Range | 10 – 2000 rpm |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.003 mm |
| Control System | Siemens 828D / Fanuc 0i-TF (optional) |
| Guideway Type | Linear roller guideways |
| Turret Capacity | 12 stations (hydraulic/VDI) |
Advantages for Aerospace Manufacturing
- Enhanced Productivity: The vertical design allows gravity-assisted loading of heavy workpieces, reducing handling time. Combined with high-speed rapid traverses (up to 24 m/min), cycle times are minimized.
- Superior Surface Finish: High spindle rigidity and precision ground ballscrews enable consistent surface roughness as low as Ra 0.4 µm, meeting stringent aerospace surface requirements.
- Multi-Material Capability: From aluminum alloys to hardened steels and superalloys like Inconel 718, the lathe’s powerful spindle and robust structure handle diverse materials without compromise.
- Tool Life Optimization: The advanced coolant system and chip management reduce thermal buildup, extending tool life by up to 30% compared to conventional designs.
- Easy Integration: Optional robotic automation or pallet systems can be integrated for lights-out manufacturing. The control system supports M2M communication for Industry 4.0 readiness.
Trust & Reliability – Backed by Suzhou Excellence
Since 2013, Suzhou Excellence Intelligent Technology Co., LTD has served clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and other regions. Our factory spans over 3,000 square meters, equipped with modern machining centers and inspection instruments. We hold ISO9001:2015 certification, ensuring every machine undergoes rigorous quality checks before shipment. With an annual export value exceeding US$5 million, we have proven our ability to deliver reliable solutions on time. Our dedicated after-sales team provides remote troubleshooting, spare parts support, and on-site installation guidance. When you choose our CNC vertical lathe, you invest in a partnership that values precision, performance, and long-term success. Contact us today to discuss your specific requirements and request a tailored quotation.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum workpiece weight this vertical lathe can handle?
A: Depending on the configuration, the machine can accommodate workpieces up to 10,000 kg. Please consult with our engineers for specific weight limits based on your part dimensions. -
Q: Is the lathe suitable for machining titanium or Inconel alloys?
A: Yes, the high-torque spindle and rigid structure are designed for difficult-to-machine materials. We recommend using appropriate cutting tools and coolants to achieve optimal results. -
Q: Can the control system be customized to an existing plant network?
A: Absolutely. The Siemens 828D and Fanuc controls support standard Ethernet/IP and Profinet protocols for integration with your MES or ERP systems. -
Q: What is the lead time for this CNC vertical lathe?
A: Lead time typically ranges from 45 to 60 days, depending on the configuration and current production schedule. We offer expedited options for urgent orders. -
Q: Does the machine come with a warranty?
A: Yes, we provide a standard 12-month warranty covering parts and labor. Extended warranty plans are available upon request. -
Q: What training and documentation are provided?
A: We supply detailed operation manuals, maintenance guides, and optional on-site training for your operators. Remote video training sessions can also be arranged. -
Q: Can you provide custom chuck or tooling solutions?
A: Yes, we offer custom chuck designs (e.g., hydraulic chucks, manual chucks) and special tool holders to match your specific aerospace part geometries. -
Q: How do you ensure the machine meets precision requirements before shipping?
A: Each machine undergoes a comprehensive run-in test and laser interferometer calibration. A certificate of accuracy is provided with the shipment.
