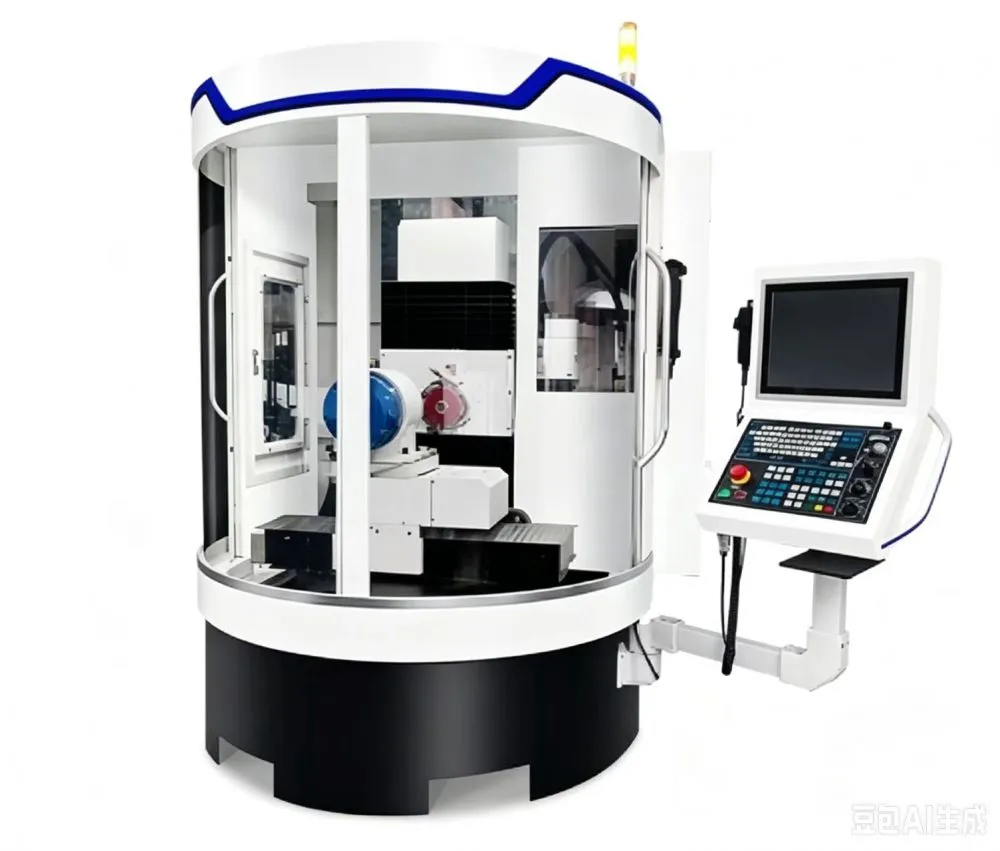

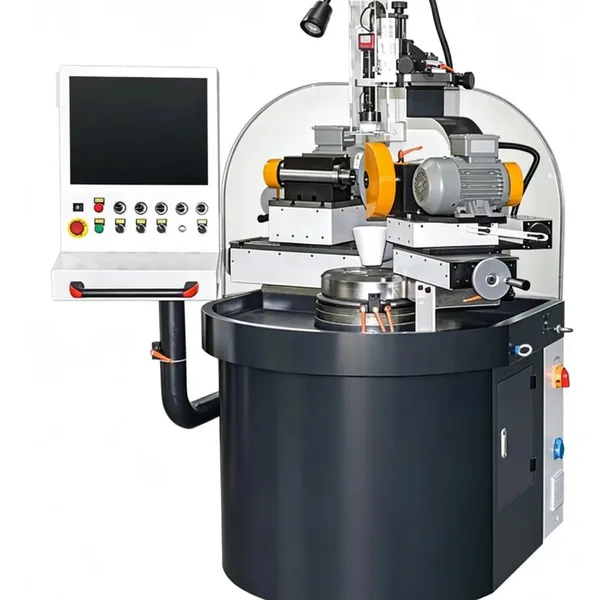

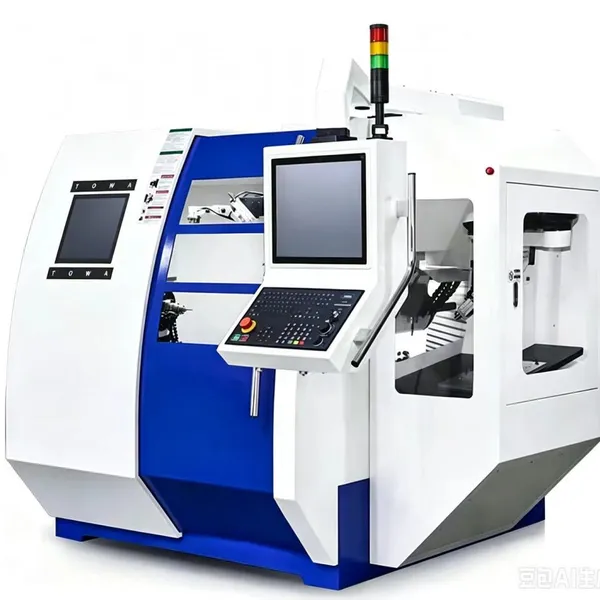

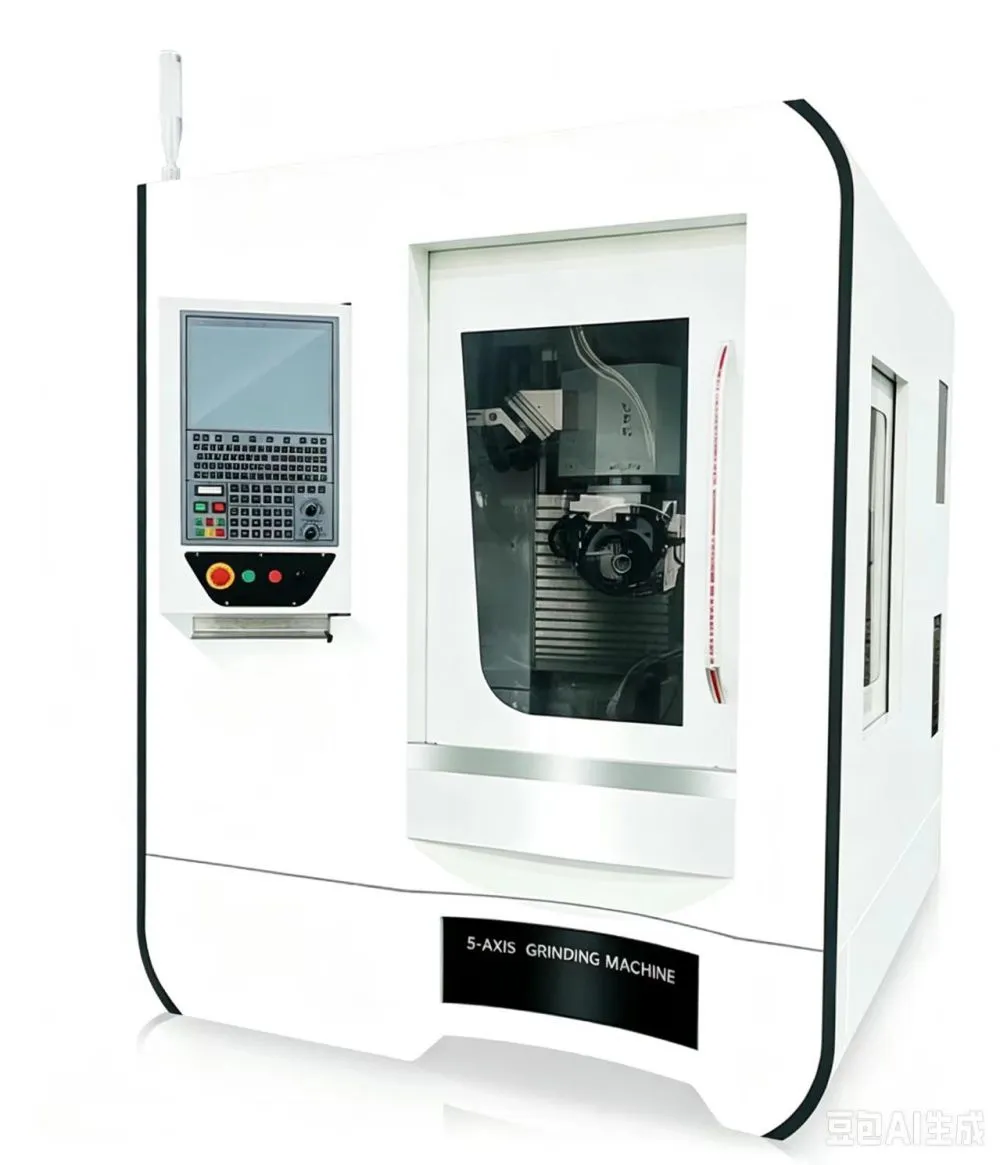

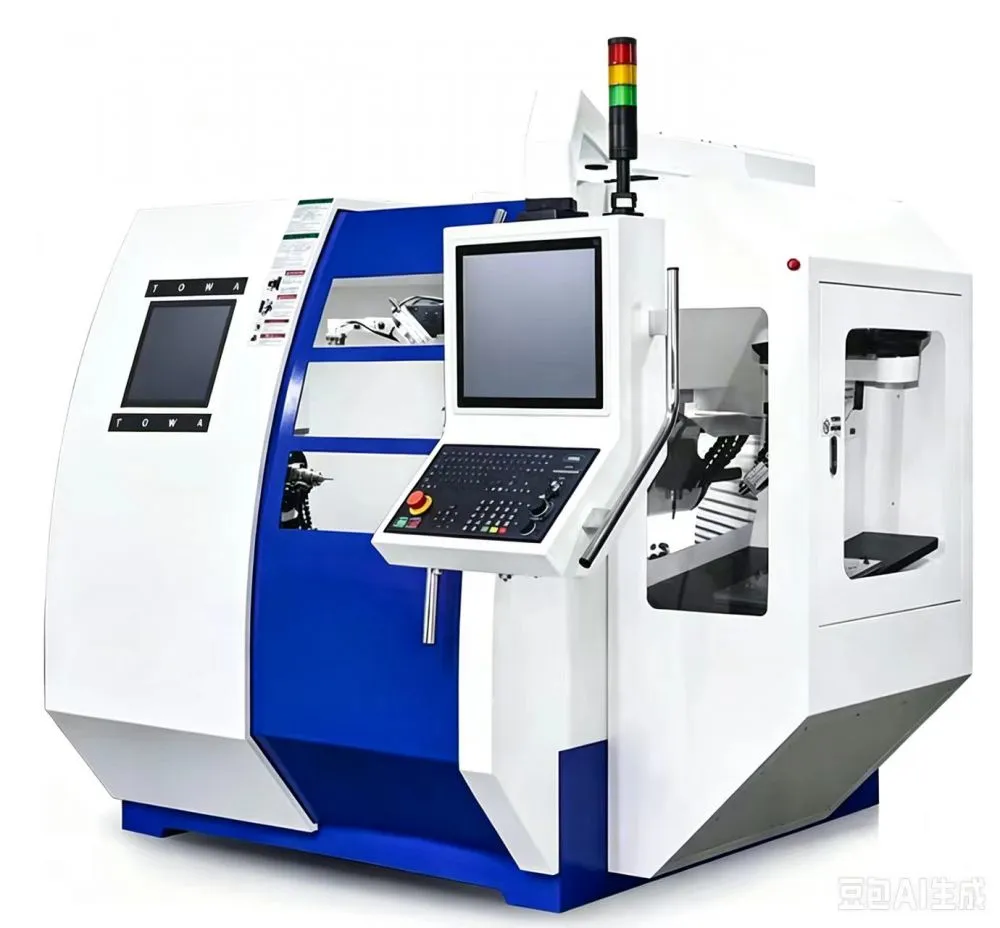

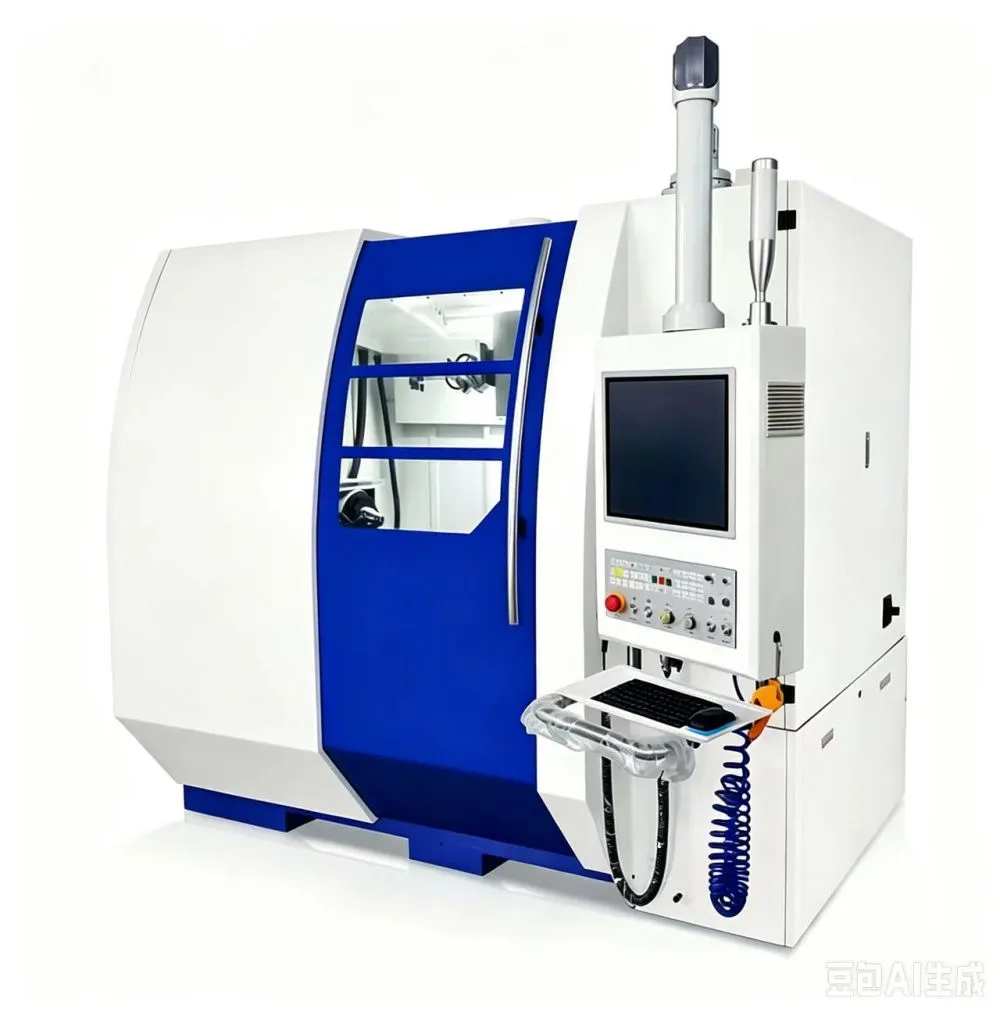

Introducing our Five-axis Tool Cutter Grinder – a precision-engineered solution designed specifically for the demanding tooling needs of the aerospace and automotive industries. As a trusted supplier from Suzhou Excellence Intelligent Technology Co., LTD, we have been delivering high-quality grinding machines since 2013, with a factory size of 3,000-5,000 square meters and an annual export value exceeding US$5 million. Our machine combines robust construction with advanced 5-axis CNC technology, enabling the grinding of complex geometries for cutting tools, drills, end mills, and reamers with unmatched accuracy and repeatability. Whether you require sharpening new tools or reconditioning worn ones, this grinder offers the versatility and performance to keep your production line efficient.
Key Technical Features & Advantages
- Full 5-Axis Simultaneous Control: The X, Y, Z linear axes combined with A and C rotary axes allow complex tool geometries to be ground in a single setup, reducing handling errors and cycle times.
- High-Rigidity Machine Base: Cast iron base with ribbed structure minimizes vibration, ensuring stable grinding even under heavy load.
- High-Speed Spindle: Direct-drive grinding spindle with speeds up to 12,000 RPM (optional up to 20,000 RPM) provides smooth surface finishes.
- Advanced CNC Control: Compatible with leading control systems (Siemens 840D, Fanuc 31i) and supports industry-standard programming languages (G-code, ISO).
- Automatic Tool Measurement & Compensation: Integrated probe system measures tool dimensions before and after grinding, automatically adjusting offsets for consistent quality.
- Coolant Filtration System: High-pressure coolant through the spindle and dual filtration ensures effective chip removal and extends grinding wheel life.
- Safety Enclosure & Interlocks: Fully enclosed work area with safety interlocks and light curtains, meeting ISO 9001 standards.
- Energy-Efficient Design: Servo motors and intelligent power management reduce energy consumption by up to 20% compared to conventional models.
Technical Specifications (Table)
| Parameter | Value / Range |
| Number of CNC Axes | 5 (X/Y/Z/A/C) |
| Grinding Wheel Diameter (max) | 250 mm (300 mm optional) |
| Tool Workpiece Diameter (max) | 300 mm |
| Tool Length (max) | 400 mm (600 mm optional) |
| Grinding Spindle Power | 7.5 kW (15 kW optional) |
| Spindle Speed Range | 0 – 12,000 RPM (20,000 RPM optional) |
| Positioning Accuracy | +/- 0.001 mm |
| Grinding Precision | +/- 0.002 mm (IT5-IT6) |
| Machine Weight | Approx. 5,000 kg |
| Power Supply | 380V/3Ph/50Hz (optional: 60Hz) |
Benefits for Your Tooling Operations
- For Aerospace Applications: Capable of grinding high-tolerance tools for titanium, Inconel, and composite materials – reduces tool wear and enhances machining quality.
- For Automotive Mass Production: Fast setup and automatic wheel dressing minimize downtime; ideal for high-volume tool resharpening.
- Cost Reduction: Recondition worn tools instead of buying new ones – average tool life extended by 30-50%.
- Flexibility: Pre-programmed software libraries for common tool types (end mills, drills, step tools) plus user-defined macros.
- Global Support: Our team provides remote diagnostics, video training, and spare parts shipped from multiple ports (Shanghai, Ningbo, Shenzhen, Qingdao).
Why Choose Suzhou Excellence?
With over a decade of experience as a trading company specializing in intelligent tool grinding solutions, we have shipped machines to more than 20 countries across North America, Europe, Asia, and Africa. Our factory is ISO 9001 certified (Product Certifications: ISO9001), and we maintain strict quality control at every stage – from raw material inspection to final run-test. Each machine undergoes a 72-hour continuous operation test before shipment. Annual export value of US$5 million to US$10 million reflects our customers' trust. We offer flexible payment terms, competitive pricing, and customized options such as coolant type, automation (robot loading), and special tool holders. Contact us today for a quotation or technical discussion – let our Five-axis Tool Cutter Grinder boost your tooling efficiency.
Frequently Asked Questions (FAQ)
Q1: What is the maximum tool diameter that this grinder can handle?
A1: The standard model can grind tools up to 300 mm in diameter. For larger diameters, optional upgrades are available up to 400 mm upon request.
Q2: Can this machine grind both carbide and HSS tools?
A2: Yes, it is designed for a wide range of materials including carbide, high-speed steel (HSS), ceramics, and cermet. The grinding parameters can be adjusted via the CNC control.
Q3: Does the machine come with pre-installed software for common tool types?
A3: Absolutely! It includes a library of standard tool programs for end mills, drills, reamers, and step tools. Custom programs can be created using the teach-in function or imported via USB/network.
Q4: How long does the setup take for a new tool type?
A4: First-time setup may take 2-4 hours including wheel dressing and calibration. For similar tool types, changeover is usually under 30 minutes with the automatic measurement system.
Q5: What kind of after-sales support do you provide?
A5: We offer one-year warranty, remote troubleshooting via video call, and on-site installation guidance (cost additional). Spare parts are available from our stock and can be shipped within 48 hours from Chinese ports.
Q6: Is the machine compliant with international safety standards?
A6: Yes, our machine meets CE and ISO 9001 safety requirements. It features emergency stop, safety interlocks on doors, and light curtain protection as standard.
Q7: Can the grinder be integrated with an automatic loading/unloading system?
A7: Yes, an optional robot arm or gantry loader can be added for fully automated production. Please consult our sales team for integration details.
Q8: What is the typical delivery time?
A8: Standard delivery is 30-45 working days after order confirmation. Rush orders may be possible with expedited production.
