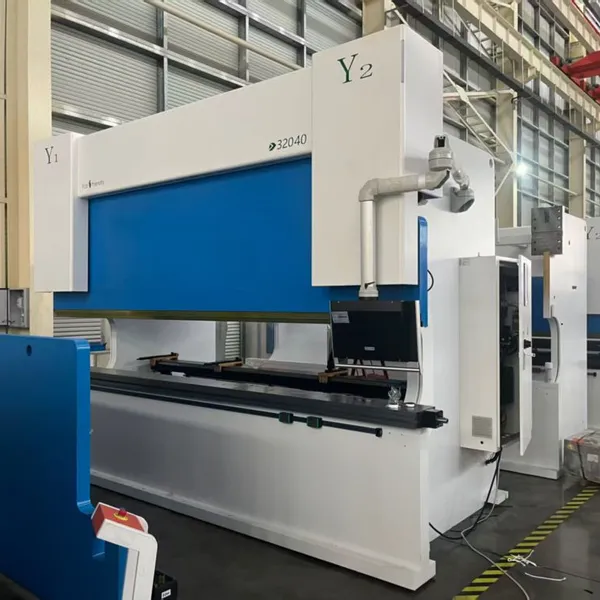

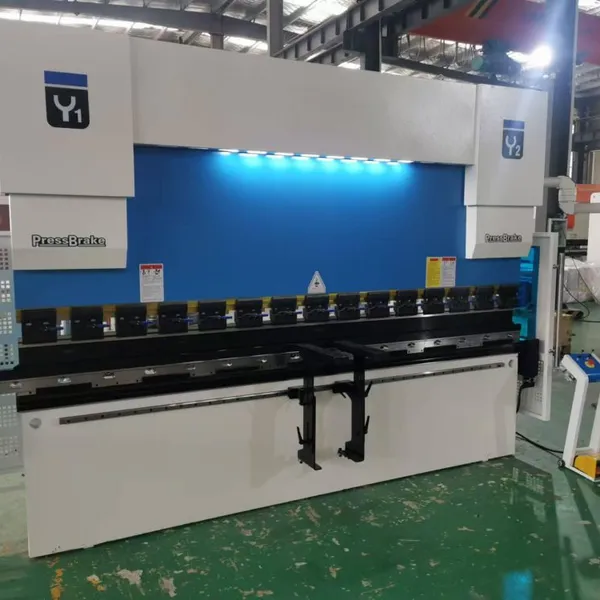

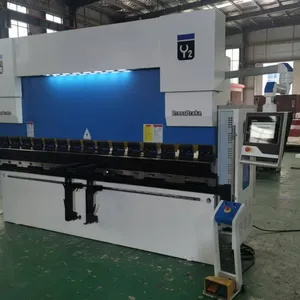

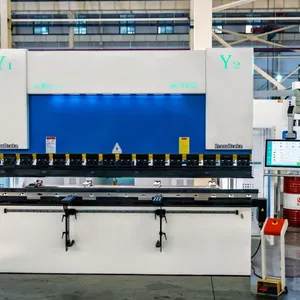

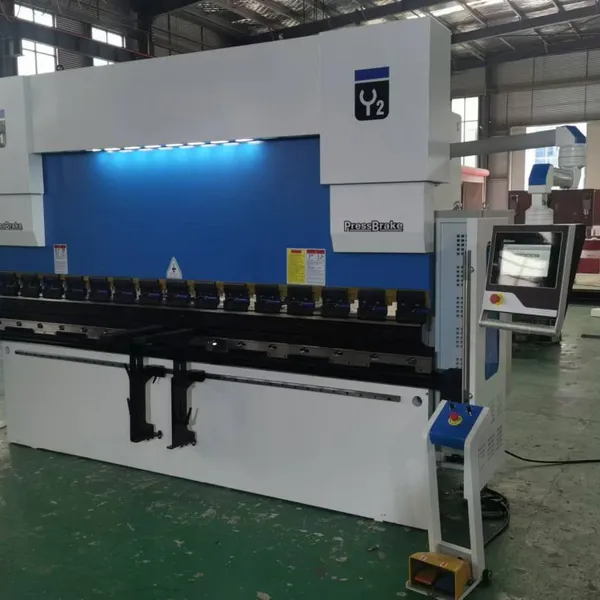

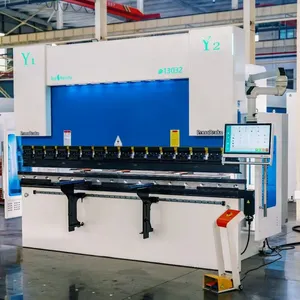

220T3200 CNC press brake
CNC SYSTEM DE18 PRO-CHINA HYDRAULIC SYSTEM LINER GUIDE BALL SCREW MAIN MOTOR(SERVO) OIL PUMP ELECTRICAL COMPONENTS FERRULE FITTING HYDRAULIC CYLINDER MOLD FUEL TANK SERVO MOTOR LINEAR SCALE CONTROL AXIS REXROTH-GEMANY KOTEC-TAIWAN SHAC-TAIWAN INOVANCE-CHINA FIRST-AMERICA SWAGELOK-AMERICA TAIFENG-CHINA 42CRMO QUENCHING STAINLESS STEEL ESTUN-CHINA ALPHA-GEMANY 6+1AXIS（Y1、Y2、X、R、Z1、Z2+V）
120T3200 Press Brake – English Specifications
Capacity
Nominal Pressure / Bending Force: 2200 kN / 220 Ton
Working Table Length / Bending Length: 3200 mm
Distance Between Columns: 2600 – 2700 mm
Performance
Slider Stroke / Beam Stroke: 200 mm (up to 350 mm on some models)
Throat Depth: 300 – 450 mm
Max Opening Height / Daylight: 470 – 700 mm
Main Motor Power: 11 – 15 kW
Machine Weight: approx. 7,000 – 13,500 kg
Overall Dimensions: approx. 3800 × 2000 × 2800 mm
CNC Control: DELEM (DA53T, DA66T, DA69T), Cybelec, ESA, AX68T
Axis Configuration: Typically 4+1, 6+1, or 8+1 axes (Y1, Y2, X, R + crowning)
