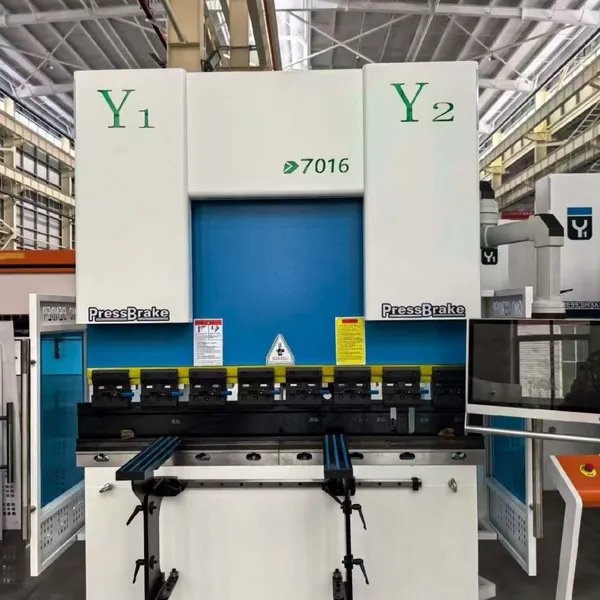

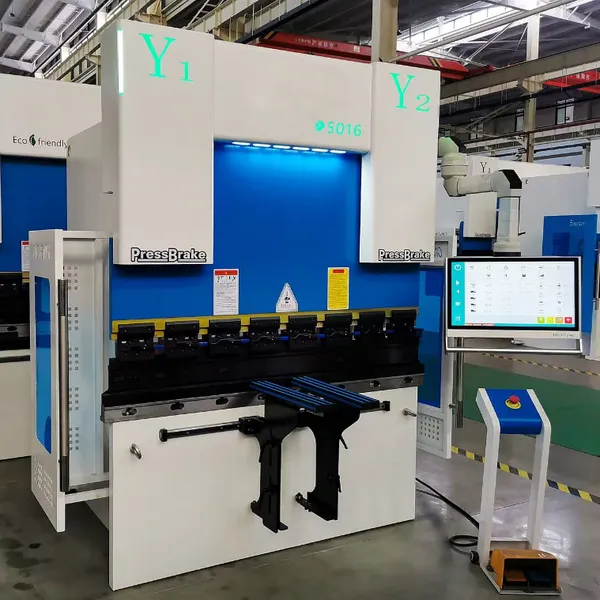

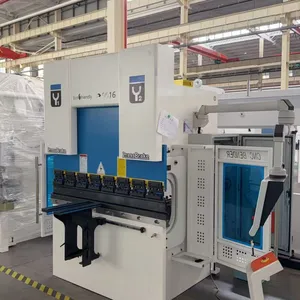

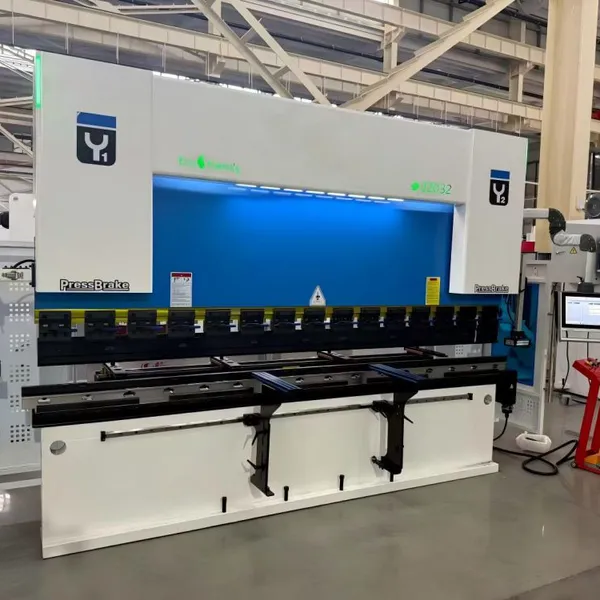

90T1600 CNC press brake
CNC SYSTEM DE18 PRO-CHINA HYDRAULIC SYSTEM LINER GUIDE BALL SCREW MAIN MOTOR(SERVO) OIL PUMP ELECTRICAL COMPONENTS FERRULE FITTING HYDRAULIC CYLINDER MOLD FUEL TANK SERVO MOTOR LINEAR SCALE CONTROL AXIS REXROTH-GEMANY KOTEC-TAIWAN SHAC-TAIWAN INOVANCE-CHINA FIRST-AMERICA SWAGELOK-AMERICA TAIFENG-CHINA 42CRMO QUENCHING STAINLESS STEEL ESTUN-CHINA ALPHA-GEMANY 6+1AXIS（Y1、Y2、X、R、Z1、Z2+V）
90T1600 Mini CNC Press Brake – English Specifications
Capacity
Nominal Pressure / Bending Force: 900 kN / 90 Ton
Working Table Length / Bending Length: 1600 mm
Distance Between Columns: approx. 1300 mm
Performance
Slider Stroke / Beam Stroke: 150 – 200 mm
Throat Depth: 250 – 300 mm
Max Opening Height / Daylight: approx. 460 mm
Main Motor Power: 7.5 – 8.5 kW
Machine Weight: approx. 4,000 – 4,800 kg
Overall Dimensions: approx. 3150 × 1600 × 2500 mm (L×W×H)
Common Model & Configuration Reference
90T/1600 Mini CNC Press Brake
CNC Control: DELEM (DA53T, DA66T), DE15
Axis Configuration: Typically 4+1 axes (Y1, Y2, X, R + crowning)
