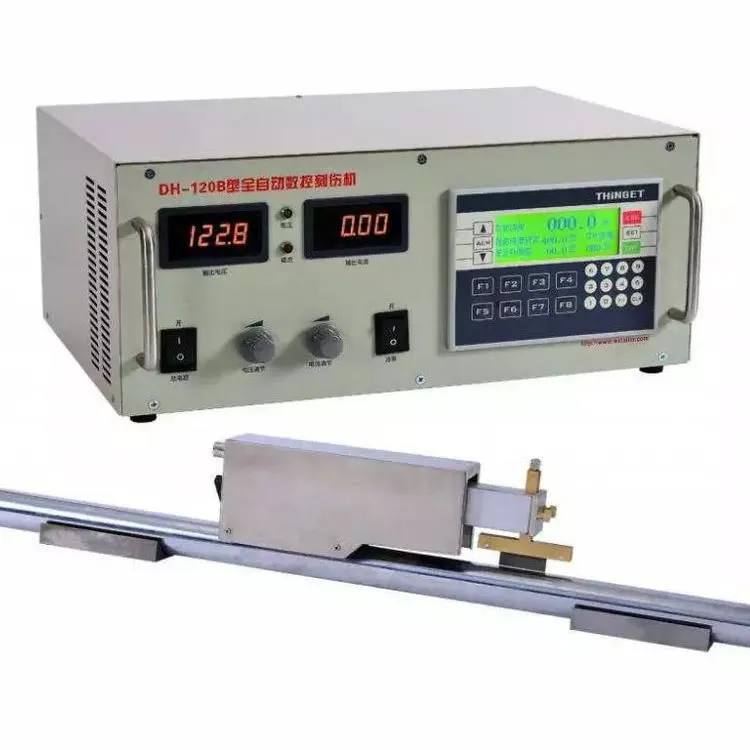

At Suzhou Excellence Intelligent Technology Co., Ltd., we understand the demanding requirements of precision marking and engraving in modern industrial environments. Our Portable EDM Scribing Machine is designed to deliver accurate, high-speed electrical discharge marking on conductive materials, providing a versatile solution for workshop and field applications. With a 1-year warranty, comprehensive user manual, and professional technical support for calibration, this device ensures that operators can maintain consistent performance with minimal downtime.
EDM, or Electrical Discharge Machining, uses controlled electrical sparks to erode the surface of conductive materials, creating clear permanent marks without applying mechanical force. This portable scribing machine brings the capability of stationary EDM equipment to a compact, movable format. It is ideal for part identification, traceability codes, serial numbers, tool marking, and surface engraving on metals where traditional stamping or laser engraving may not be suitable.
Key Features
- Portable Design: Lightweight and compact construction allows the machine to be carried to different work sites, reducing the need for fixed installation and making on-site calibration easy.
- Precision Scribing: The EDM process creates fine, controlled marks with high repeatability, ensuring readability throughout the product lifecycle.
- Wide Material Compatibility: Works on hardened steel, stainless steel, copper, aluminum, and other conductive alloys, making it a flexible tool for various industries.
- Adjustable Parameters: Operators can set current, frequency, and scribing depth according to the material and desired mark contrast. Settings can be customized based on application needs.
- User-Friendly Operation: Intuitive controls and a clear instruction manual help new users get started quickly. No complex programming is required for basic marking tasks.
- Durable Construction: The machine body is built with rugged materials to withstand regular use in industrial environments. Components are replaceable to extend service life.
- Low Operating Cost: Consumables are minimal compared to traditional engraving methods, and the energy-efficient design helps control operating expenses.
- Safety and Reliability: Built-in protective features help prevent accidental discharge and reduce operator risk. The unit is designed for stable performance under normal working conditions.
Detailed Technical Information

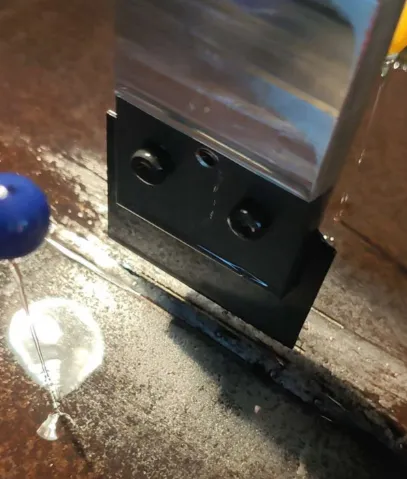

The Portable EDM Scribing Machine uses a short-duration electrical arc generated between an electrode and the workpiece. This arc removes microscopic particles from the material surface to form visible marks. Because the process does not rely on mechanical contact or high heat input, it minimizes distortion and leaves a clean, burr-free result.
Machine operation typically requires a standard single-phase power supply. However, exact voltage and frequency specifications may vary depending on configuration and destination country. Please contact our sales team for the precise power requirements tailored to your region. The unit is designed for easy transport, and optional carrying cases can be provided upon request.
To assist customers in setting up and maintaining the equipment, every unit ships with a detailed user manual in English. The manual covers installation, operation, routine inspection, and troubleshooting steps. In addition, our technical support team offers remote guidance for calibration and parameter adjustment, helping you achieve the desired mark quality. If an unusual condition occurs, our engineers can assist in identifying the cause and recommending corrective actions.
Applications
- Manufacturing: Marking part numbers, date codes, and factory labels on machined components.
- Automotive: Engraving identification numbers on engine parts, chassis components, and tools.
- Aerospace: Applying traceability codes on high-strength alloys without affecting structural integrity.
- Metal fabrication: Adding permanent marks to steel plates, pipes, and structural profiles.
- Tool and die: Identifying punches, dies, and molds for inventory control.
- Maintenance and repair: Marking replacement parts directly on site.
Technical Specifications (example configurations)
| Parameter | Specification |
|---|---|
| Marking Principle | Electrical discharge erosion |
| Machine Type | Portable, handheld or bench-top use |
| Warranty Period | 1 year |
| Documentation | User manual included |
| Calibration Support | Technical support for calibration |
| Material Compatibility | Conductive metals, including steel, copper, aluminum, etc. |
| Power Supply | Available upon request |
| Customization | Optional according to customer requirements |
Note: The specifications above represent typical configurations. For your specific application, our team can provide additional information about output parameters, operating voltage, dimensions, and weight. All customization options are available upon request.
Why Choose Our Portable EDM Scribing Machine
Compared to conventional stamping or engraving methods, this portable EDM scribing unit offers better flexibility for modern production lines. It can be easily moved between workstations, requires minimal fixture setup, and produces clear marks even on hard surfaces. The inclusion of a one-year warranty provides peace of mind, while the technical support for calibration ensures that your system remains accurate over time.
In today’s competitive industrial environment, reliable part traceability is essential. Our scribing machine helps you maintain high quality standards by delivering permanent, legible markings that withstand subsequent processing, chemical exposure, and wear. Whether you are marking components for internal quality control or for customer specification compliance, the system can be adapted to meet your requirements.
Frequently Asked Questions
Q1: What kind of materials can the portable EDM scribing machine mark?
A: It can mark conductive materials, including carbon steel, stainless steel, copper, aluminum, and many alloys. The actual result depends on material hardness and surface condition.
Q2: Is it difficult to operate this machine for a first-time user?
A: The machine is designed with user-friendly controls. The included user manual provides step-by-step instructions for setup, parameter adjustment, and basic maintenance. Additionally, our technical support can help with calibration remotely.
Q3: What does the calibration support include?
A: Our technical support team offers guidance on verifying and adjusting marking parameters to maintain accuracy. This may include setting current, frequency, spacing, and depth according to your sample material.
Q4: Does the warranty cover all parts?
A: The 1-year warranty covers manufacturing defects under normal use. Consumable parts such as electrodes may require periodic replacement and are not always covered. Please contact us for the full warranty statement.
Q5: Can the machine be used outdoors or on site?
A: Yes, the portable design allows it to be moved to different locations. The operating environment should be dry and well-ventilated, and power supply must be available or provided through a compatible generator.
Q6: Do you offer custom configurations or accessories?
A: We can provide optional carrying cases, different electrode sizes, and customized parameter settings for specific applications. Please send your requirements so we can recommend a suitable setup.
Q7: How do I maintain the scribing machine?
A: Routine maintenance includes keeping the electrode and workpiece contact area clean, checking cables for damage, and storing the unit in a dry place. Detailed maintenance procedures are in the user manual.
Q8: What is the typical delivery time?
A: Delivery time depends on your location and order quantity. Since we ship from Shanghai, Ningbo, Shenzhen, or Qingdao, transit times vary. Our sales team will provide an estimated delivery time with your quotation.
Company Strength and Service Backing
Suzhou Excellence Intelligent Technology Co., Ltd. has been serving international clients since 2013. We operate from a facility of 3,000-5,000 square meters and have built a strong export business with an annual export value between US$5 million and US$10 million. Our products are shipped from major Chinese ports including Shanghai, Ningbo, Shenzhen, and Qingdao, ensuring efficient logistics to markets around the world. We serve customers in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, Eastern and Western Europe, Central America, and Southern Europe, as well as the domestic market.
Our quality management system is certified under ISO9001, which guides our procedures in sourcing, inspection, and after-sales service. Every unit is checked before packing to ensure it meets the agreed specifications. When you choose our Portable EDM Scribing Machine, you receive not only a robust marking tool but also ongoing technical assistance to help you achieve the best results. Contact us today to discuss your marking needs, request a quotation, or learn more about calibration support and customization options.
