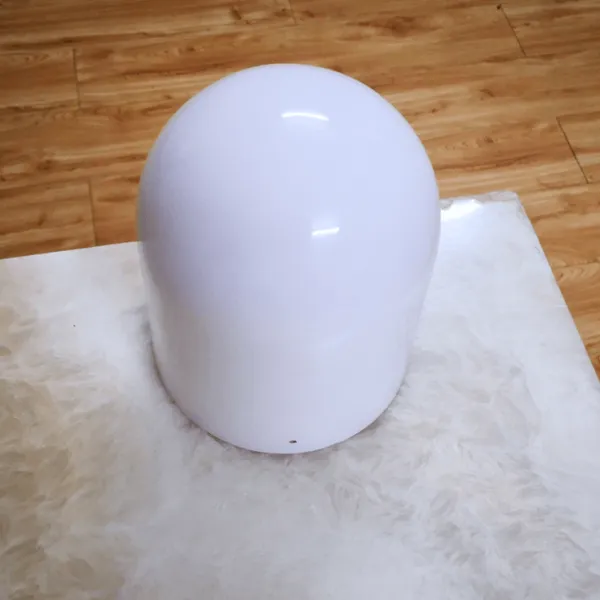

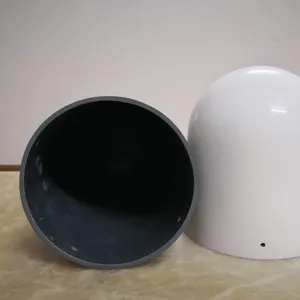

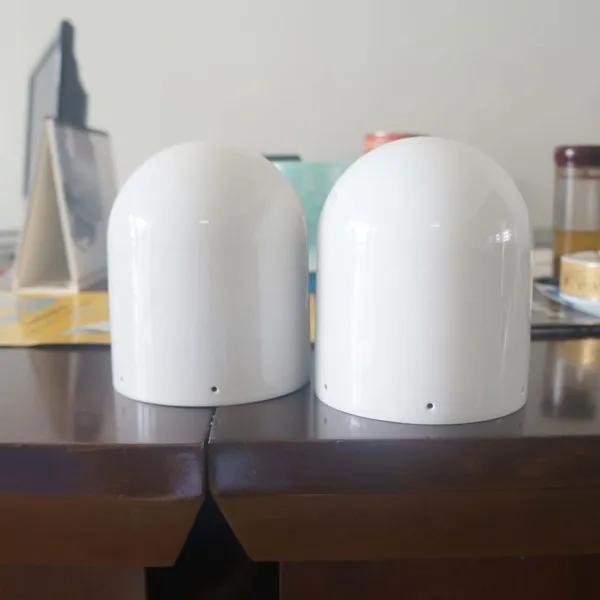

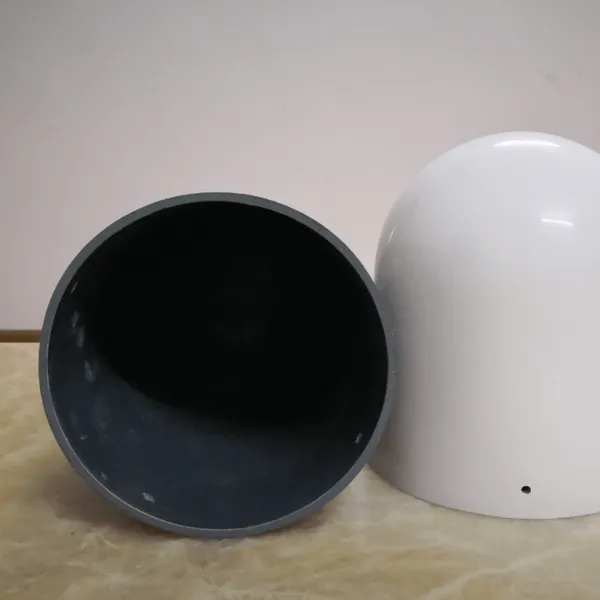

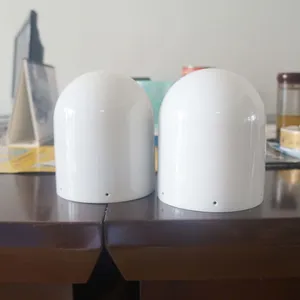

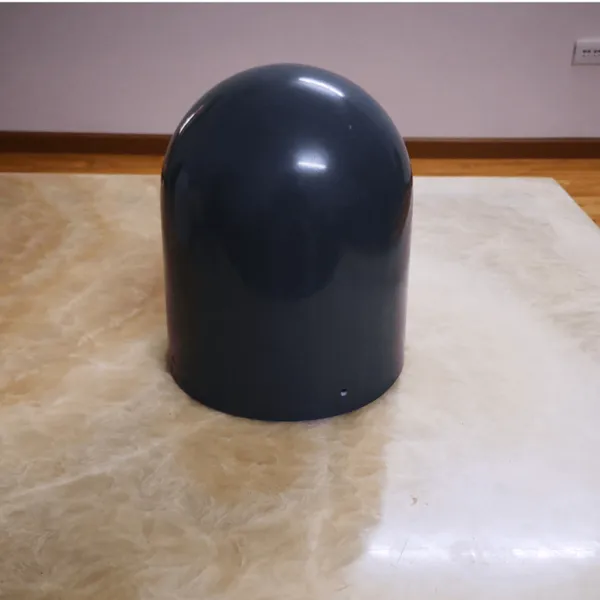

349 Type FRP Radome is a tall egg-shaped bullet shell for 1~4GHz GNSS antennas. The streamlined oval profile reduces wind load and improves stability in open-field installations.
High-strength fiberglass composite provides good wave permeability and low signal attenuation, maintaining accurate positioning. Good UV resistance and waterproof performance suit long-term outdoor monitoring antenna stations.
Custom dimension and wall thickness are supported, with options for color and surface finishing to meet site requirements.
Product Details
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
1 |
Name |
Type 200 radome |
8 |
Appearance |
Colored gelcoat |
15 |
Dielectric constant |
4.5-4.9 |
2 |
Specifications |
200*250 mm |
9 |
Resin |
Modified epoxy resin |
16 |
Operating frequency |
1 MHz - 4 GHz |
3 |
Housing wall thickness |
5.0 mm |
10 |
fiber |
E-glass fiber |
17 |
Transmittance (or insertion loss) |
≥90% |
4 |
Weight |
1.4kg±0.1kg |
11 |
Nomex honeycomb |
/ |
18 |
Operating temperature |
-40℃–80℃ |
5 |
Structure |
Single-layer |
12 |
Insertion part |
/ |
19 |
Service life |
≥15 years |
6 |
Material |
Fiberglass |
13 |
Accessories |
/ |
20 |
Detailed dimensions |
See the drawing. |
7 |
Color |
White |
14 |
Packaging |
Thickened cardboard box |
