High-Quality Automatic Foundry Sand Reclamation Machine to Regenerate Used Sand Machine for Making Sandclay Green Sand Casting Production Equipment
Product Description

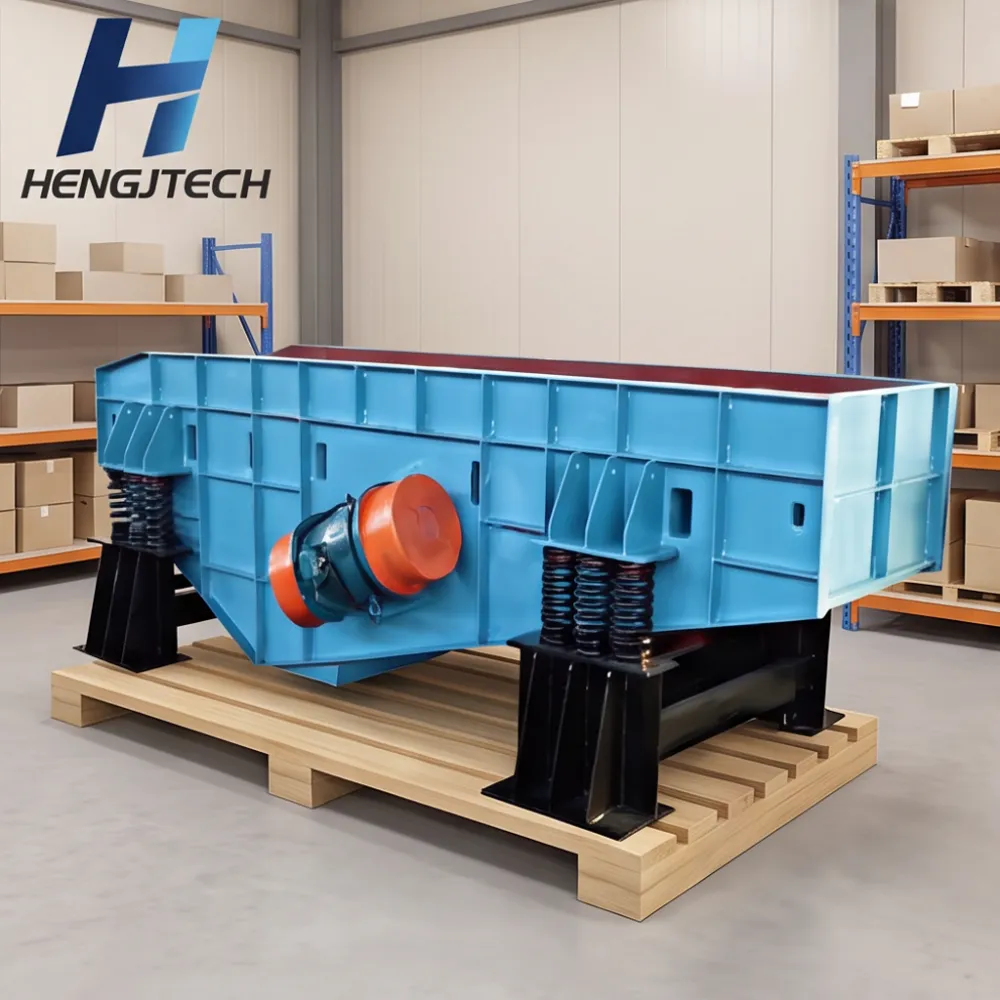

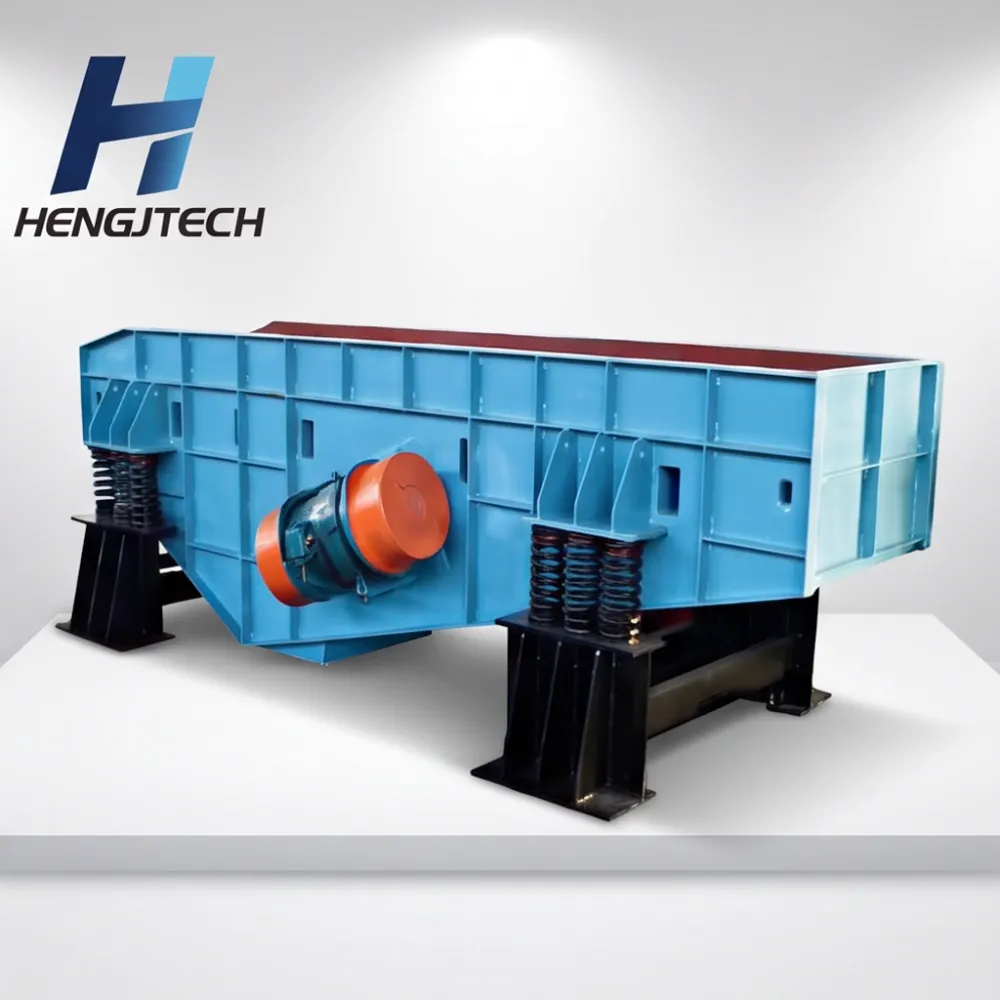

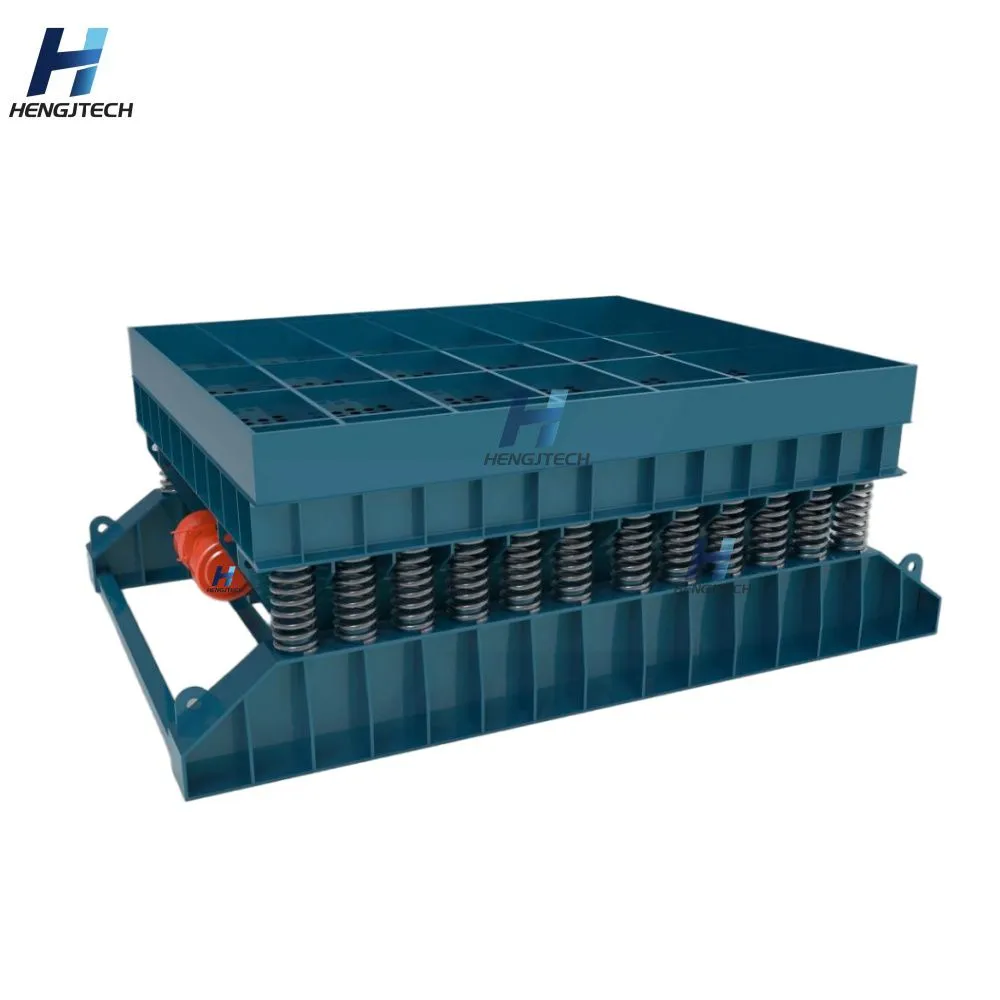

Foundry Clay/Green Sand Treatment Processing Preparation Reclamation Production Line --Sand shakeout machine
We manufacture and design full scope of Clay Green sand casting equipment. including Clay green Sand Mixer, Sand Feeder and Conveyor,Cooling Bed,Sand Moulding machine and Sand Reclamation Machine. We also design custom Production line of Clay Green sand casting production.
We supply Design scheme , equipments production and installation . Chose us,we will do all the rests for you .No worries and no need any doubts.
Product Description
Specification
Model /Parameters |
Production Capacity (t/h) |
Production Line Equipments Lists |
||
G-20 |
20 |
Foundry Sand Mixer,Fine Sieve,Sand Bank,Belt Conveyor,Bucket Elevator, Vibration conveyor, Screw Conveyor,cast hanging conveyor, magnetic separation machine, winding machine, hexagonal mesh, sand library, two-way cooling bed, hoisting machine, belt machine, boiling reclaimer, hoist, discharger, belt machine, sand library, the disc feeder, belt conveyor, hoist, exhaust ventilator, accessories, two-way feeder, screw feeder, accessories electronic scale sand mixing machine, belt machine, the disc feeder.... |
||
G-40 |
40 |
|||
G-60 |
60 |
|||
G-80 |
80 |
|||
G-100 |
100 |
|||
G-120 |
120 |
|||
G-140 |
140 |
|||
G-160 |
160 |
|||
G-180 |
180 |
|||
G-200 |
200 |
|||
G-XXX |
... |
|||

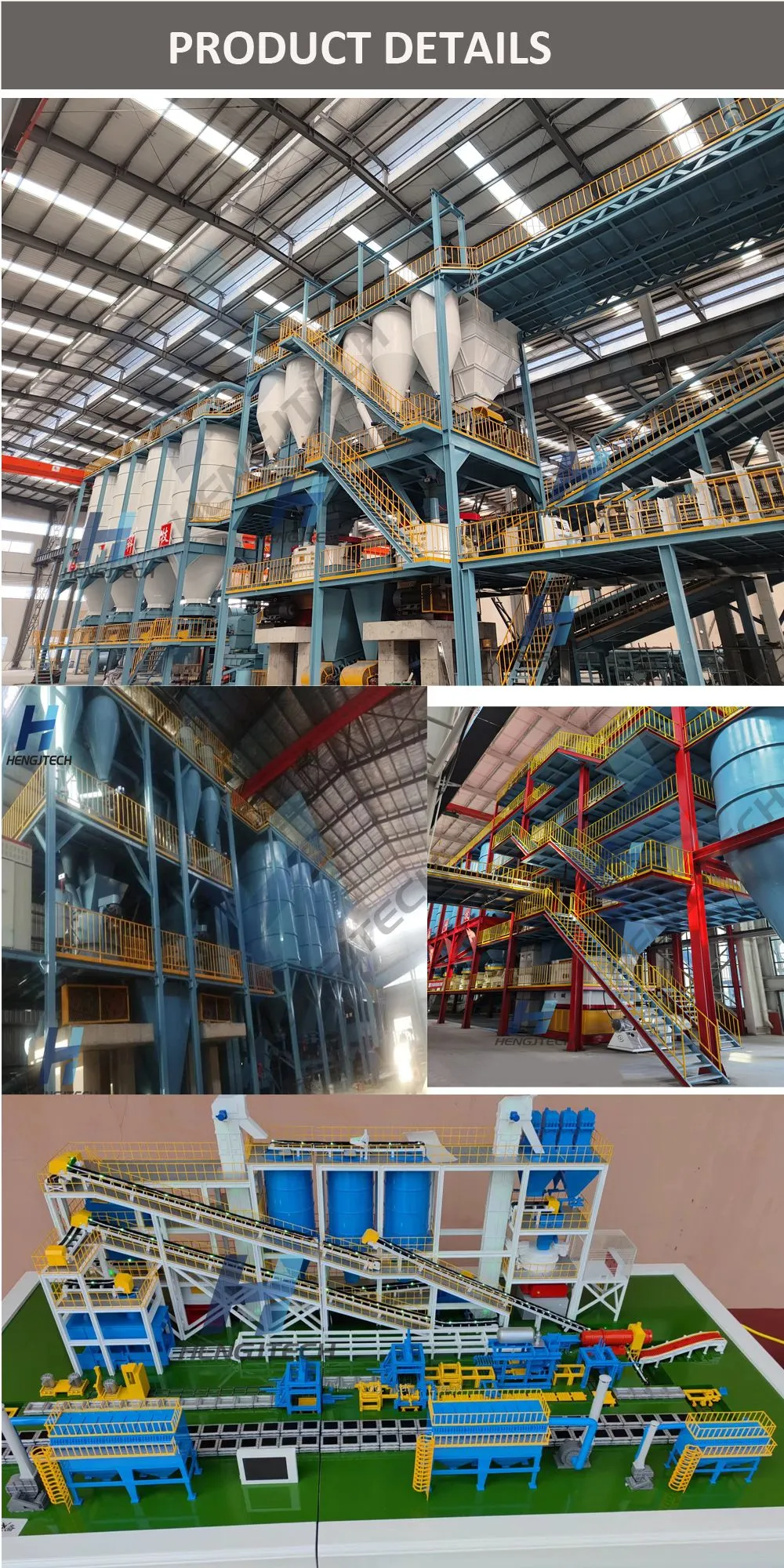

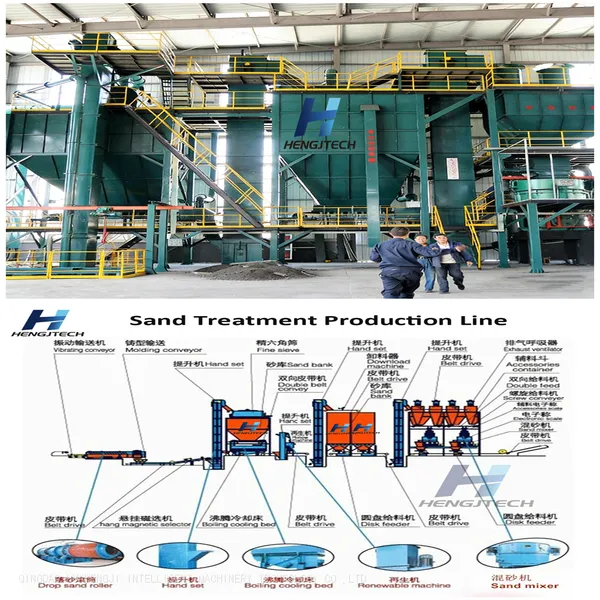

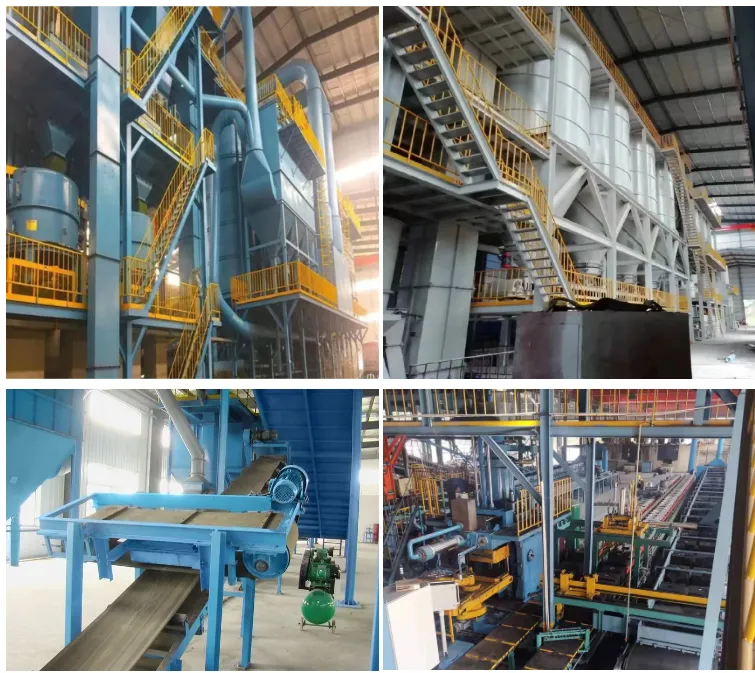

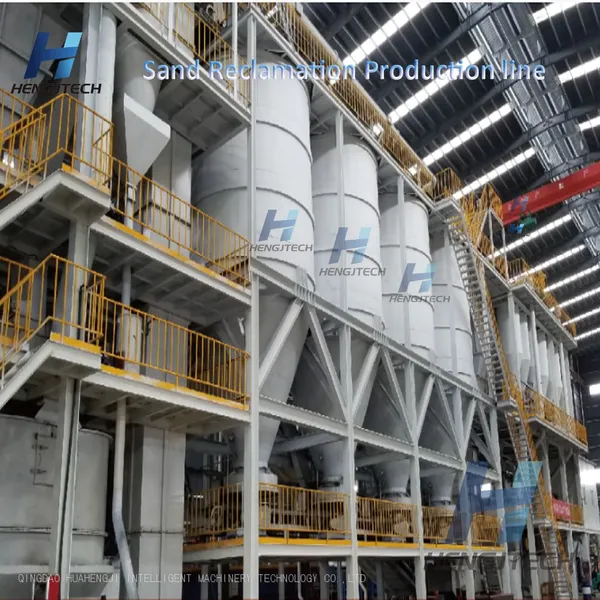

CLAY/GREEN SAND TREATMENT SAND PREPARATION SAND PROCESSING SAND RECLAMATION PRODUCTION LINE
Clay sand production line specifications are: 20 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons.,140ton,160ton,180tons,200tons...Can be equipped with horizontal and vertical molding lines.

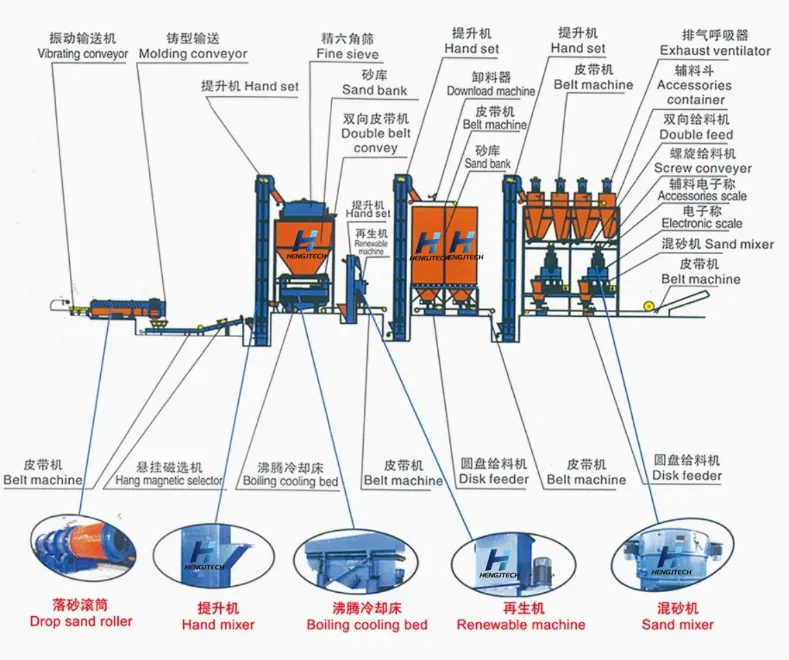

Production Equipment Lists: Foundry Sand Mixer,Fine Sieve,Sand Bank,Belt Conveyor,Bucket Elevator, Vibration conveyor, Screw Conveyor,cast hanging conveyor, magnetic separation machine, winding machine, hexagonal mesh, sand library, two-way cooling bed, hoisting machine, belt machine, boiling reclaimer, hoist, discharger, belt machine, sand library, the disc feeder, belt conveyor, hoist, exhaust ventilator, accessories, two-way feeder, screw feeder, accessories electronic scale sand mixing machine, belt machine, the disc feeder....
We can give the design scheme drawing according to customer's requests . We will determine which equipments to use based on the specific situation of the factory and your requirements, and send a schematic diagram for confirmation.
Applications:

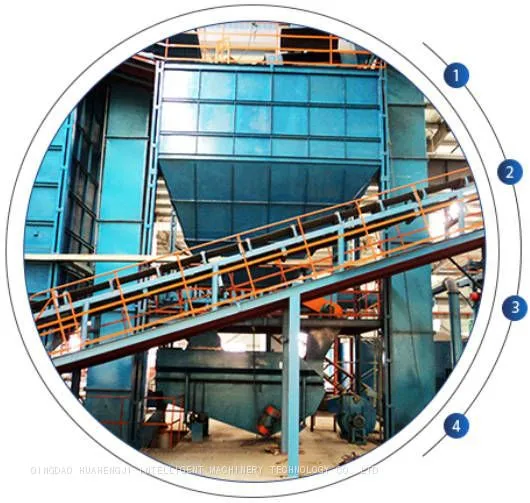

The sand processing system equipment is used to collect and process the sand returned from the molding line. We can undertake turnkey projects including design, manufacturing, installation, commissioning, and training. The ordering party shall provide the factory building (steel structure), equipment foundation, water, electricity, gas and gas connection to the contractor's designated location, workshop and trench lighting, as well as control room production and decoration. The sand processing system includes a sand dropping unit, a hot used sand magnetic separation recovery and transportation unit, a screening and cooling unit, an old sand storage and activation unit, a batching and mixing sand detection unit, a molding sand transportation unit, a screening residue and waste sand collection and discharge unit, a static pressure line scattered sand transportation unit, a new sand auxiliary material storage and transportation unit, a dust removal unit, an auxiliary supporting unit, and an electronic control unit
Specific technical requirements:
1. Old sand processing capacity of sand processing system: according to user needs;
Mixing capacity of sand mixer: according to user needs;
The temperature of the cooled old sand should not exceed 45 degrees Celsius, or the ambient temperature should be increased by 10 degrees Celsius;
Humidity of cooled old sand: 1.8~2.2%:
2. Performance of old sand: After hexagonal screening, there should be no sand particles larger than 6x16
Exhaust concentration of dust removal system: less than 15mg/m ³
3. Surrounding environment of the system: Dust collection measures must be taken at all dust collection points of the system, and there must be no visible or obvious dust spillage
Noise isolation: Each dust removal fan is equipped with a soundproof room to ensure that the noise level does not exceed 85dB
Quality of molding sand: Under the condition of using qualified raw and auxiliary materials, both parties cooperate and adjust to ensure that the molding sand performance meets the requirements of the molding line on the basis of meeting production capacity.
Main indicators of molding sand: compaction rate of 38%~42%
Wet compressive strength 212N/cm
Wet tensile strength 1.2-2.5N/cm?
Breathability greater than 100
Total mud content 8%~10%
The above are reference indicators that can be adjusted according to customer requirements
Detection and control of process parameters: The system needs to be equipped with a daily sand temperature detection and control system
Main purchased component configuration: reducer: Boneng reducer (except for special equipment)
Main electrical components: Famous international and domestic brands
Please refer to the electrical component list for details
* Paint: According to the customer's specified color code
Packing & Delivery
PACKAGING & DELIVERY:
1. Trucks Transport
2.Plywooden Carbon Box Packaing into Container
3.Container Safety transport
OTHER MACHINES
QINGDAO HUAHENGJI INTELLIGENT MACHINERY TECHONOLOGY CO.,LTD
Qingdao Huahengji Intelligent Machinery Technology Co, Ltd. is located in the beautiful national new area of Qingdao West Coast New Area, set research and development, production and sales and after-sales entity units, the company mainly produces Sand Treatment equipment,Sand Reclamation Equipment including Clay sand casting production line,resin sand casting production line,coated sand regenaration casting production line,lost foam casting production line,foundry sand mixer,sand cooler,cooling bed,bucket elevator,seperator,conveyor,dust collector,Vibrating Screen,Sand Shake Vibration Machine,Mechanical vibrating table,shot blasting machine ,Sand Temperature Modulator,Furnace ..etc and other casting Foundry machinery.
The company provides comprehensive services including scheme design, equipment production, installation, and after-sales service.
As one of the leading foundry machinery manufacturers in the early development, we have a complete range of various models of equipment, widely used in surface treatment, casting, shipbuilding, bridge engineering, automobile , and other fields, At the same time, in order to meet the market demand, we can also customize foundry equipment according to the specific requirements of customers, to ensure that every customer can obtain satisfactory products and services.
Our company always adhere to the principle of "quality first, service forever, to meet customer needs as the core. We have first-class production technology and equipment, committed to continuous research and innovation, in strict accordance with relevant standards, industry standards and enterprise production standards to ensure the highest product quality and production efficiency. All equipment is also thoroughly checked and evaluated for quality to ensure complete customer satisfaction.
The company undertakes the following projects:
1.20-200t/h turnkey engineering and single machine supporting equipment of mechanized clay sand treatment production line.
2. Turn-key project of cold-hardened resin sand mechanized production line with annual production of 1000-20000t castings.
3.3. Turn-key project of thermal coated sand production line with annual output of 1000-6000t.
4. Provide turnkey projects for cold and hot core box sand, coated sand and thermal regeneration production line.
5. Provide "V" vacuum negative pressure moulding technology and equipment.
6. Production of various environmental protection dust removal equipment and casting shot blasting cleaning equipment.
Welcome your inquiry.
If you want to learn more, please click on contact us .
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment
2. Warranty time
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
