1. Product Overview

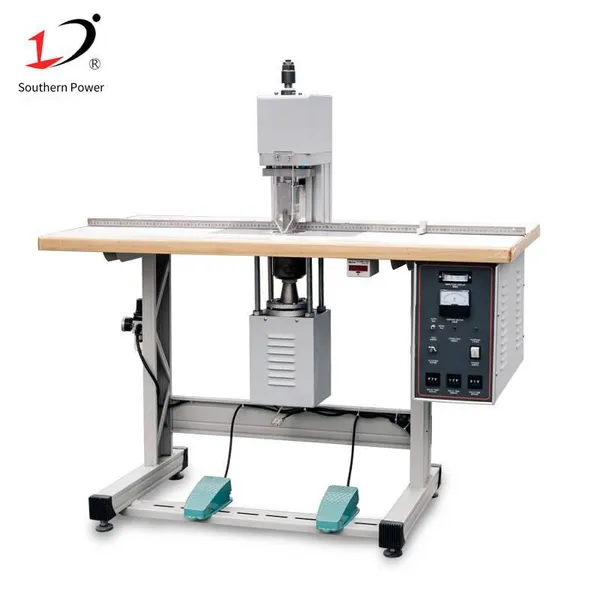

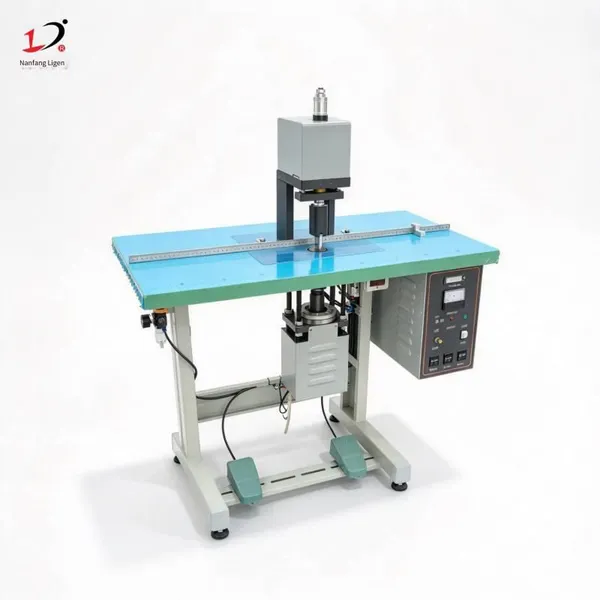

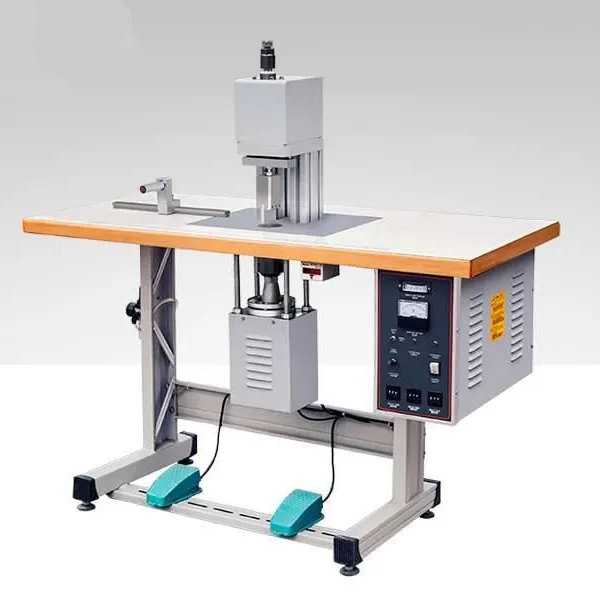

The 2-inch semi-automatic ultrasonic cutting machine is a bench-top cutting device launched by Huizhou Lijing Automation Equipment Co., Ltd. (formerly known as Nanfang Lijing) based on nearly three decades of accumulated ultrasonic technology. Using ultrasonic technology, it precisely cuts and automatically seals various strip materials, leaving cut edges non-scorched, non-blackened, and free of fraying, with strong and neat seals.
The machine is equipped with NTK series transducers, providing strong power and good stability. The machine head adopts an integral casting design, which is sturdy and prevents tilting back, ensuring stable cutting. The 20KHz ultrasonic operation produces relatively low noise. The tabletop is equipped with a scale ruler and a fixing block, allowing the length to be adjusted freely; the tool holder is adjustable, allowing the blade angle to be set arbitrarily; the cutting dies can be interchanged easily for simple installation. The whole machine features a compact structure, reasonable design, and beautiful appearance.
The semi-automatic cutting machine is manually fed, offering greater flexibility than fully automatic tape cutting machines. It is especially suitable for production scenarios involving small batches, multiple varieties, and irregular cutting. One machine can meet the cutting requirements of various materials by changing dies, with low equipment investment cost and quick returns.
2. Eight Core Advantages
NTK series transducer, strong and stable power output
It adopts Japanese NTK series transducers, which feature accurate and stable frequency and strong output. As a world-renowned transducer brand, NTK's excellent energy conversion efficiency and long-term stability ensure consistent cutting quality during continuous operation.
Integral casting machine head, sturdy and anti-tilting
The machine head uses an integral casting design with high structural strength and good rigidity, effectively preventing the head from tilting back and ensuring the machine body stays stable without displacement during cutting, providing stable and reliable cutting performance.
20KHz ultrasonic, low noise
The machine operates at 20KHz with relatively low noise, improving the workshop working environment.
Intuitive ultrasonic generator, simple operation
The ultrasonic generator has an intuitive design that is simple and convenient to operate, easy to understand and learn. Ordinary workers can operate the machine after simple training.
Scale ruler + fixing block, length freely adjustable
The tabletop is equipped with a scale ruler and a fixing block, allowing the cutting length to be adjusted freely with precise positioning and convenient operation.
Adjustable tool holder, cutting angle arbitrarily adjustable
The tool holder has an adjustable design, allowing the cutter angle to be freely adjusted to meet different cutting angle requirements. Equipped with a freely positionable tool holder, the shear angle can be adjusted and positioned as needed.
Multiple mold options for simple and convenient installation
Shearing molds can be freely changed, and installation is simple and convenient. A variety of molds are available to meet the shearing needs of different materials and products.
Compact machine structure and elegant appearance
The machine features a compact structure, reasonable design and elegant appearance. The stable frame ensures long-term reliable operation.
3. Working Features
Fast: Experienced operators can reach 60 strokes per minute.
Intuitive: Easy adjustment with counting function
Quality: Automatic edge sealing, no scorching, no blackening, no frayed edges
Economical: Manual operation for cutting saves costs
4. Detailed Technical Parameters
Operating frequency: 20KHz
Output power: 1200W
Power supply: 220V 50/60Hz
Production efficiency: 30-40 strokes/minute (experienced operators can reach 60 strokes/minute)
Dimensions: 1200×550×1500mm
Equipment weight: 55KG
Transducer: NTK series transducer
Customization for non-standard specifications is supported; specific parameters are subject to the actual model. If you have special requirements, please feel free to contact us.
4. Detail Display

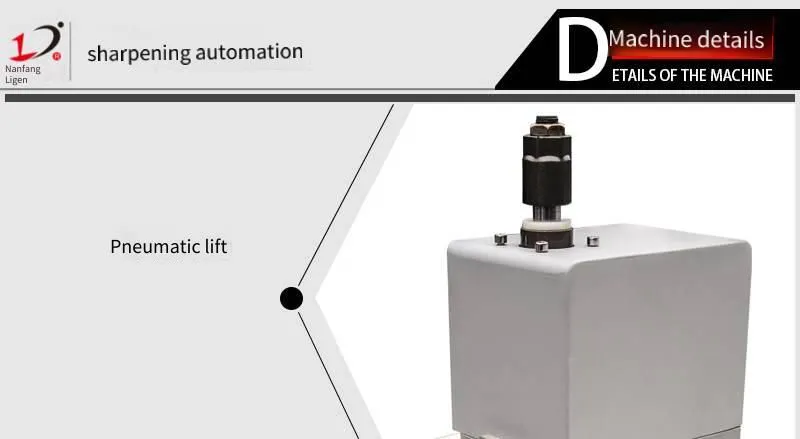

Adjustable cylinder
The adjustable cylinder design is easy to understand and operate, and adjustment is quick and convenient.

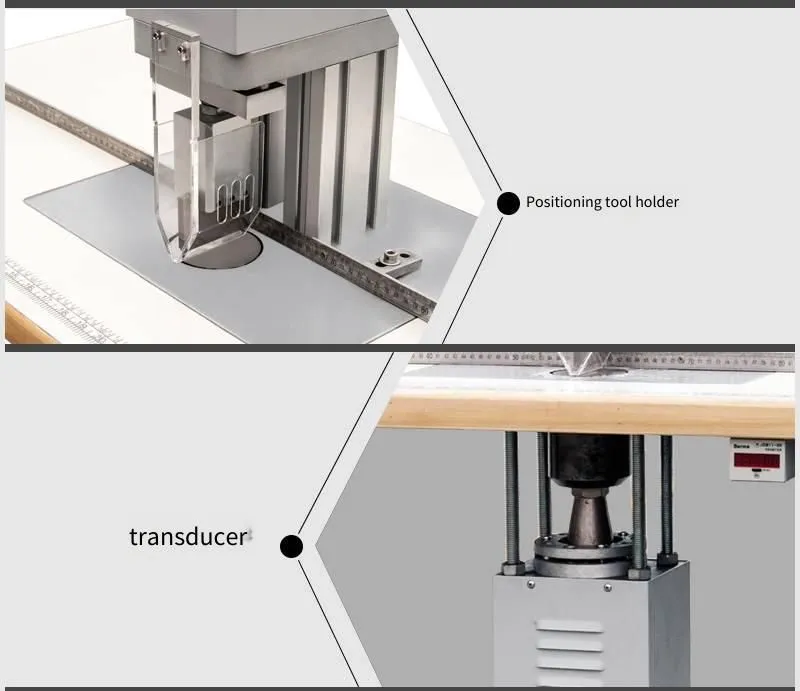

Freely positionable tool holder
The freely positionable tool holder can be arbitrarily positioned to adjust the shear angle, and a scale ruler is provided for convenient positioning of the cutting length.

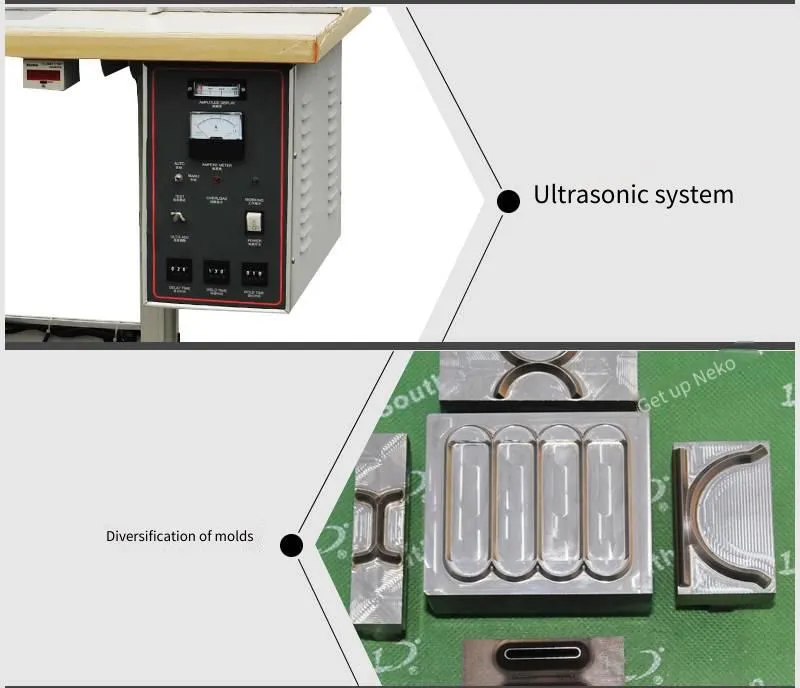

Amplitude and current dual-meter display
The dual meters for amplitude and current make machine performance directly visible, facilitating real-time monitoring of the equipment's operating status.
Various mold options
A variety of molds are available. Shearing molds can be freely changed and are simple to install, meeting the shearing requirements of different materials and products.
5. Applicable Materials
The equipment is suitable for cutting various types of ribbon materials:
Webbing | Fabric tape | Velcro | Ribbon | Satin ribbon | Colored ribbon | Elastic tape | Elastic band | Cord tape
The above are commonly cuttable materials. For testing other materials, you are welcome to send samples for trial cutting.
6. Typical Application Scenarios
Garment & Apparel: Cutting of garment webbing, waistbands, elastic bands, and decorative tapes
Shoes & Hats: Cutting of shoelaces, hat bands, and Velcro
Luggage & Bags: Cutting of backpack webbing, handles, and zipper tapes
Crafts & Decorations: Cutting of ribbons, satin ribbons, colored tapes, and gift wrapping ribbons
Packaging Industry: Cutting of strapping bands and sealing tapes
Others: Cutting of elastic cords, elastic bands, and similar rope-like materials
7. Semi-Automatic Cutting Machine vs. Fully Automatic Tape Cutting Machine · Comparison Reference
Feeding Method: The semi-automatic cutting machine requires manual feeding; the fully automatic tape cutting machine features automatic feeding.
Applicable Scenarios: The semi-automatic cutting machine is suitable for small batches, multiple varieties, and special-shaped cutting; the fully automatic tape cutting machine is suitable for large batches and continuous production.
Flexibility: The semi-automatic cutting machine offers high flexibility and adjustable angles; the fully automatic tape cutting machine provides standardized cutting.
Equipment Investment: The semi-automatic cutting machine is low-cost; the fully automatic tape cutting machine is relatively more expensive.
Production Efficiency: The semi-automatic cutting machine operates at 30-60 cuts per minute; the fully automatic tape cutting machine operates at 10-100 segments per minute.
These two machines each have their own strengths, and the choice can be made based on production volume, product type, and budget.
8. Why Choose Us
Lijing Automation, formerly Nanfang Lijing, was founded in 1997 and has been dedicated to the R&D and manufacturing of ultrasonic equipment for nearly 30 years.
Equipped with NTK series transducers and integrally cast machine heads, ensuring reliable quality of core components.
Automatic edge sealing, no scorching, no blackening, no frayed edges, delivering excellent cutting quality.
Adjustable tool holder + scale ruler + fixing block, allowing flexible adjustment of cutting angle and length.
Diversified molds that can be freely interchanged to meet various material and product requirements.
Products exported to more than 100 countries and regions worldwide, CE certified, and compliant with international standards.
The company holds over 70 national patents and software copyrights and is a national high-tech enterprise.
Service outlets are available in multiple cities across China, ensuring prompt after-sales response.
Non-standard customization is supported, and molds and functional configurations can be customized according to customer requirements.
9. Frequently Asked Questions
Q1: What is the difference between a semi-automatic cutting machine and a fully automatic tape cutting machine?
The semi-automatic cutting machine is manually fed, offering high flexibility and suiting production scenarios with small batches, multiple varieties, and special-shaped cutting; the fully automatic tape cutting machine features automatic feeding and is suitable for large-batch continuous production.
Q2: How long can the tape be cut?
The worktable is equipped with a scale ruler and a fixing block, so the cutting length can be adjusted freely with precise positioning.
10. Service Process
Customer consultation → Requirement communication → Free trial cutting → Solution and quotation → Contract signing → Production and manufacturing → Installation and commissioning → Operation training → After-sales support
11. Free Trial Cutting Service
Huizhou Lijing Automation Equipment Co., Ltd. provides free trial cutting service for customer-supplied materials! You can send the materials to be processed to our company, and we will use the equipment to conduct an actual cutting effect test to ensure it meets your requirements before making a purchase decision, allowing you to purchase with zero risk.
11. Contact Us
Welcome to call for consultation or leave a message online. We will provide you with detailed technical solutions and quotations.
Factory direct sales, customization supported, looking forward to cooperating with you!
