XZFT Attachments excavator rotating screen bucket:
Product description:

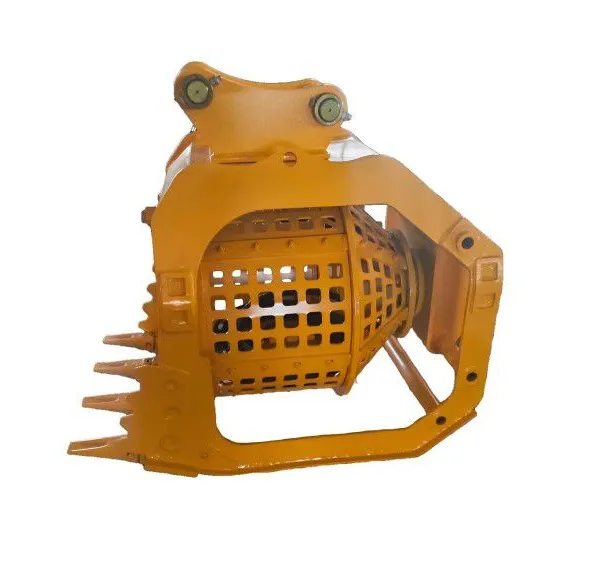

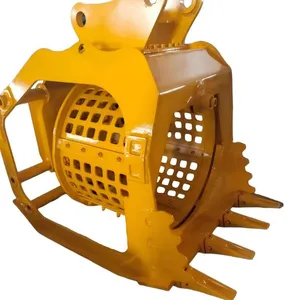

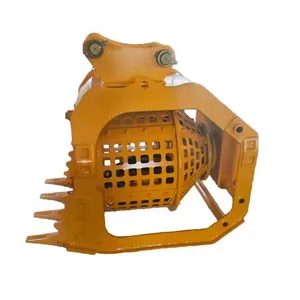

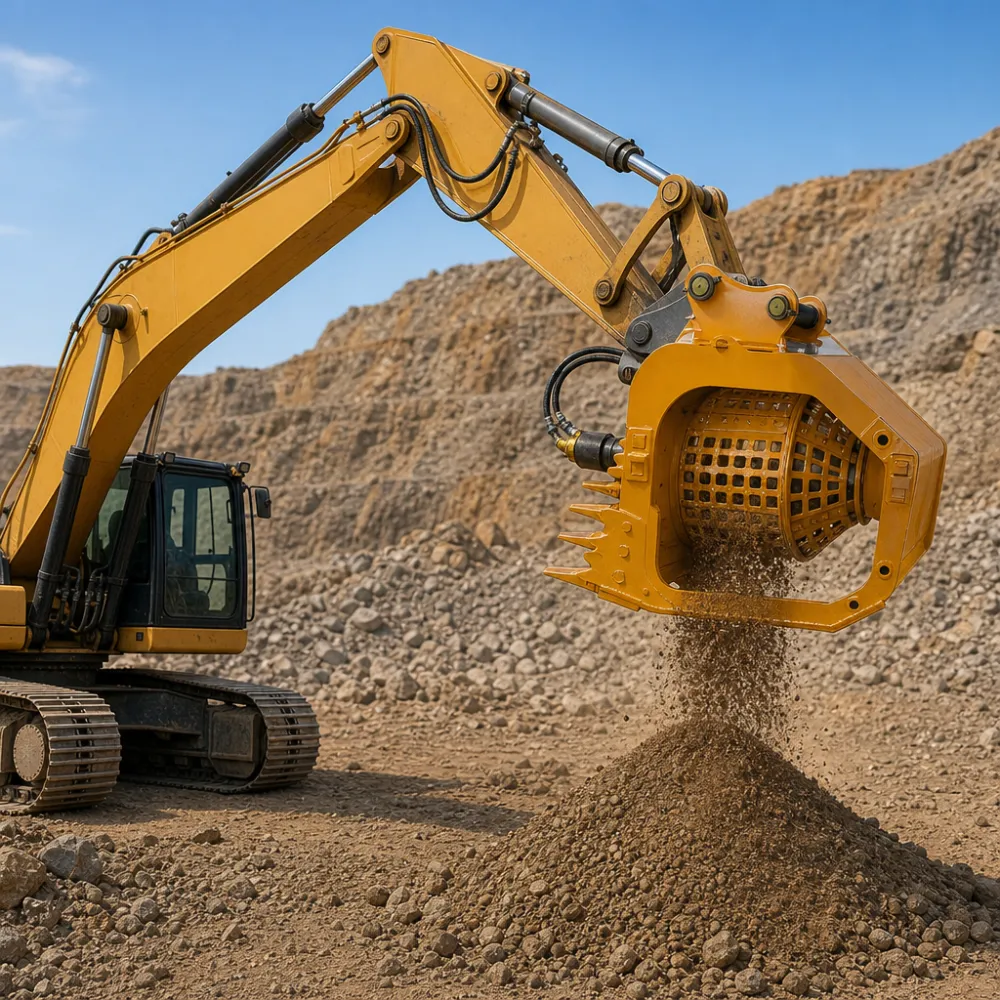

It screens by turning and not by sitting flat: the drum lifts and drops the material, so the openings stay clear as the drum goes round.

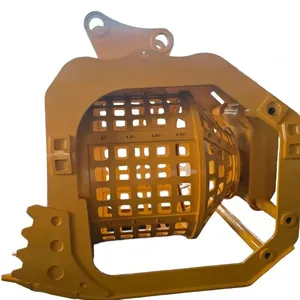

The screen is built as bands of perforated plate along the drum, so the working face runs the full length of the drum.
The drum and its drive are carried by a welded frame, so the screening unit and the mount are one structure.
The mounting head has two pin ears, so the bucket hangs on the machine linkage rather than needing a coupler between them.
The drum is hydraulically driven, so the machine must have a spare auxiliary circuit before the bucket can screen.
Specification:
| Model | Screen D | Working Pressure | Oil flow | Weight | Volume |
| 5-8T | 900mm | 80-120bar | 60-80L/min | 530kgs | 0.4CBM |
| 12-16T | 1000mm | 120-140bar | 100-120L/min | 1200kgs | 0.8CBM |
| 20-28T | 1250mm | 160-230bar | 140-160L/min | 2000kgs | 1.1CBM |
| 30-40T | 1450mm | 240-280bar | 200-220L/min | 2450kgs | 2.0CBM |
Application:
Sand Processing: Classification of mountain/river sand; material screening in sand yards.
Mining & Ore Washing: Screening ore materials to separate different particle sizes.
Construction: Screening soil/sand at construction sites and mixing stations for qualified raw materials.
Gravel Processing: Grading gravel to meet various engineering material standards.
