XZFT Attachments excavator grapple bucket:
Product description:

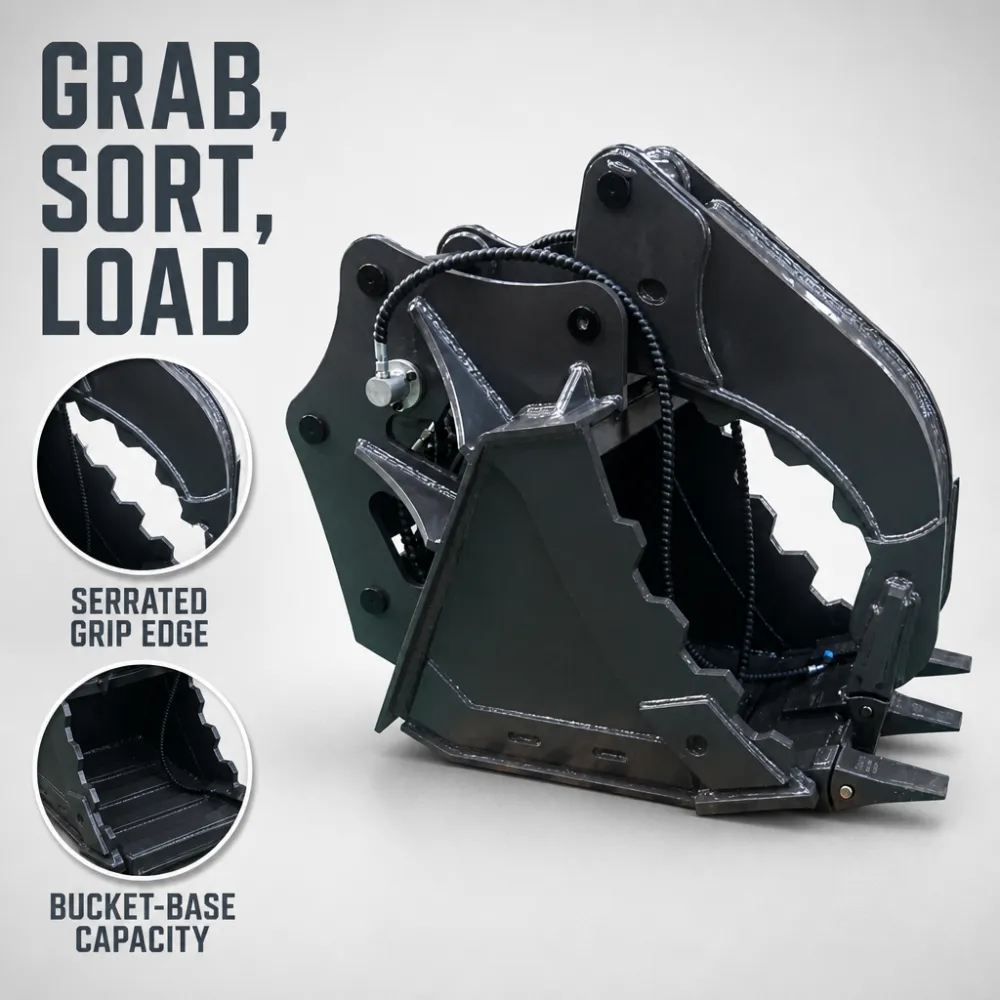

The grapple arm is closed hydraulically onto the bucket, so the load is held between the arm and the shell instead of being balanced on the edge and lost on the way.
The inner edge of the grapple is serrated, so it bites into brush, timber and irregular debris instead of slipping over the top of the load.
Teeth along the bucket edge are carried on bolt on adapters, so the points that take the ground wear are renewed as small parts and the edge stays in service.
The hoses run along the frame to the cylinder, so the hydraulic feed is carried along the structure rather than left hanging where it can be snagged.
One double acting auxiliary circuit on the carrier is what the grapple needs, and the bucket pins to the machine linkage, so a carrier with a spare valve can run it.
Advantages:
Superior Material Strength & Corrosion Resistance: Crafted from Q355B manganese steel plate, the grapple bucket boasts exceptional structural strength and excellent corrosion resistance, capable of withstanding impact and wear from gravel, stones and other abrasive materials.
High-Precision Imported Rotary System (Rotary Model): Rotary-type grapple buckets are equipped with Swiss-imported rotary motors, ensuring smooth, precise and reliable 360° rotation for flexible material handling at any angle.
Durable Hydraulic Cylinder Assembly: Hydraulic cylinders adopt honed tubes and imported HALLITE oil seals—the industry-leading sealing solution. This configuration guarantees short working cycles, minimal hydraulic leakage, and an extended service life of the hydraulic system.
Dual-Function Efficiency: Combines excavation and clamping functions in one unit, perfectly suited for gravel yard operations and small-to-medium material handling, reducing equipment downtime and operational costs.
Applications:
Excavation, clamping, and loading of gravel, sand, stone, and ore materials.

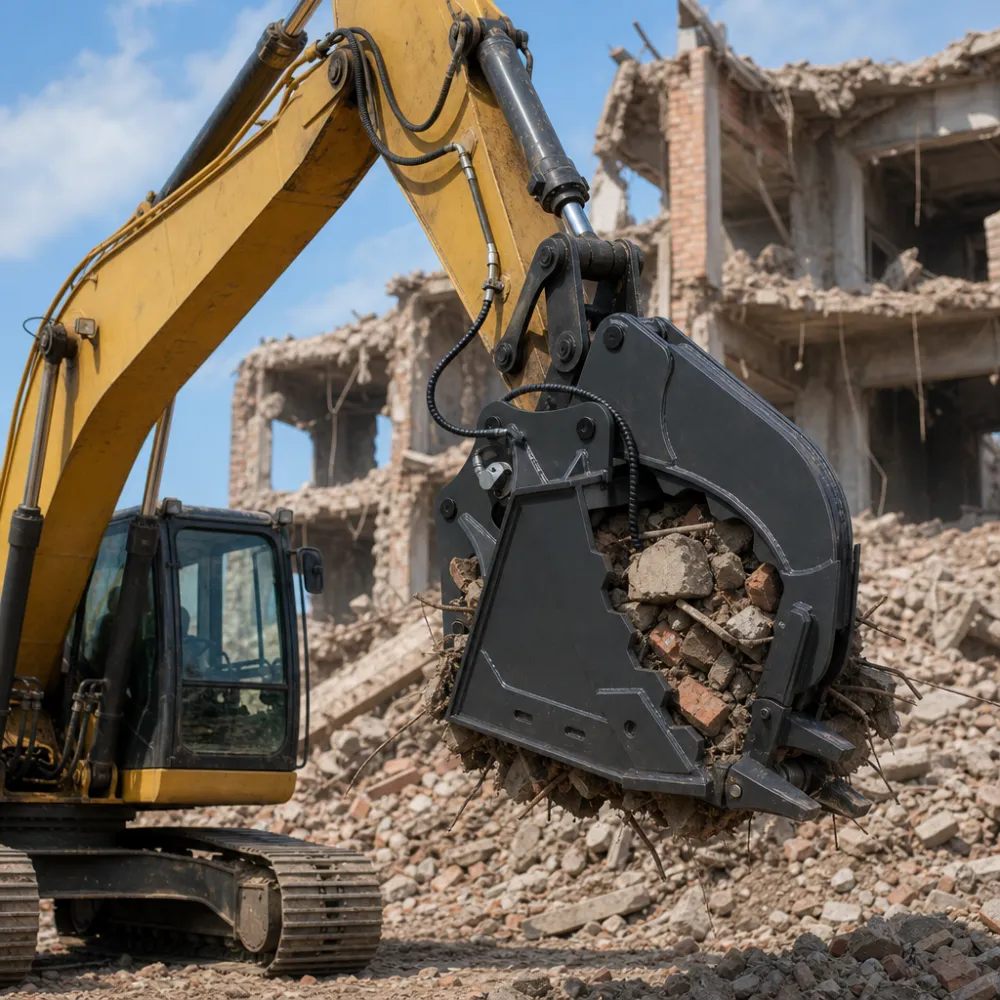

Loading, unloading, transporting, and stacking of various small-to-medium irregular materials, such as scrap steel, timber, pipes, construction waste, branches, and straw.
Grabbing and cleaning of mixed waste and stones in river dredging and slope finishing operations.
Precise handling and stacking of soil, stones, and seedlings in municipal engineering and landscaping projects.
