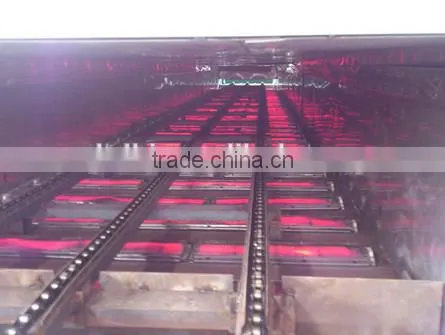

Solenoid valve control infrared Gas Burner for paper Drying equipment HD162
MODEL |
Net Weight |
Dimension |
Consumption |
Heat Output |
||
kg |
mm |
NG(m3/h) |
LPG(kg/h) |
KW/h |
Kcal/hr |
|
HD162 |
9.4 |
570*130*175 |
0.49 |
0.45 |
6.3 |
5400 |
Other models for choosing :
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Advantages :
1. Flameless and smokeless
2. Energy and Cost saving (can save 10%-20% energy than common burner)
3. Environmental protection(CO≤80ppm;NOx≤10ppm;CHx≤50ppm)
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. High transfer capacity of heat energy: ≥ 95% energy can be released in the form of infrared ray
7. High efficiency: it can come to working condition in 8seconds.
8. Easyly installed in all direction
The most big advantages: Energy-saving and Flamsless!!
Comparison table for all kinds of energy consumption
|
Furnace type Parameters |
Electronic |
Oil furnace |
Coal-fired furnace |
Infrared catalytic burner |
|
Energy requirement |
10,000Kcal |
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h) |
Electricity(1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(0.9Kg) |
Heating time |
20 minutes |
40minutes |
90 minutes |
5-8 minutes |
The largest advantages of our products compared to others:
Applications:
1. Paper industry: All kinds of paper dry lines and auxiliary drying heat wall 2. Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
3. Glass and ceramics industry: Enamel firing dryer, glass oven, mould drying, fritting, parching
5. Painting Industry: Liquefied or powered painting assembly line, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
We also supply electric thermostat controller, solenvoid valve, ignition pin, pulse igniter.

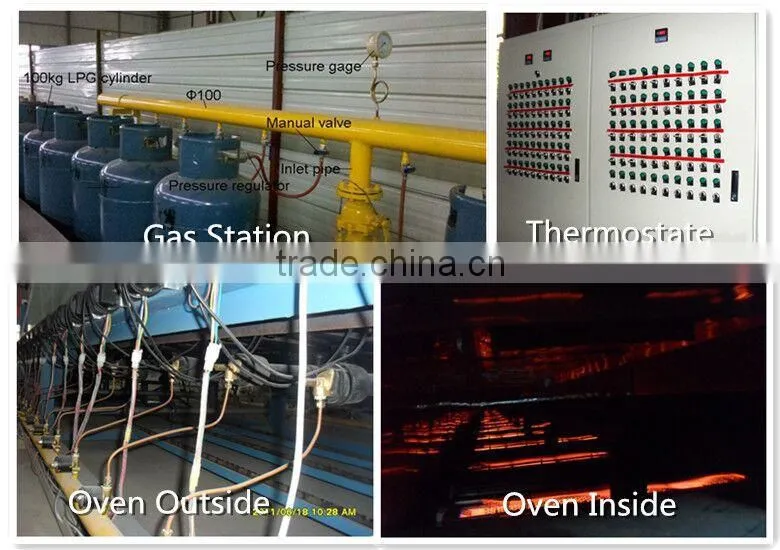

Factory & Packing Photos:
Company honours
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
