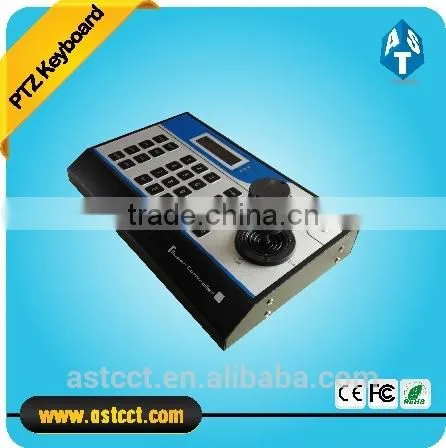

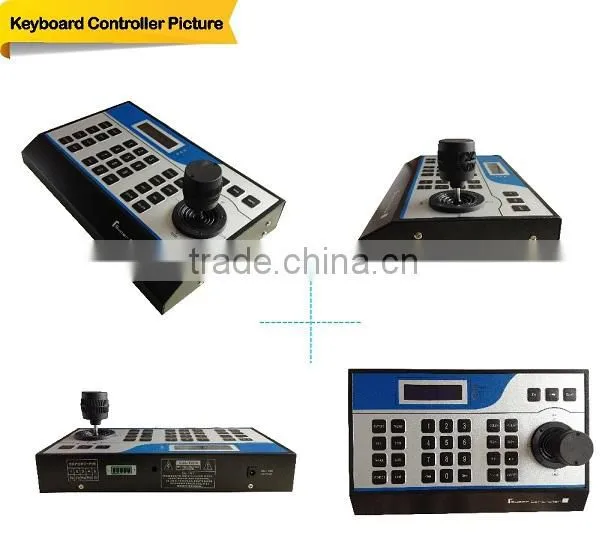

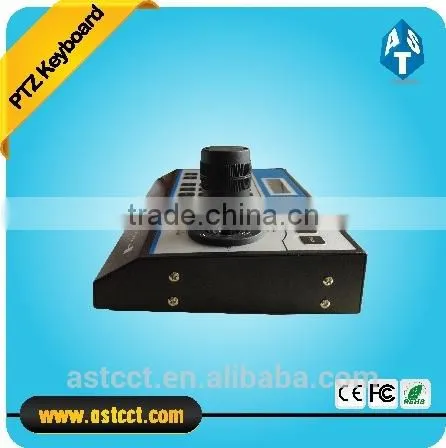

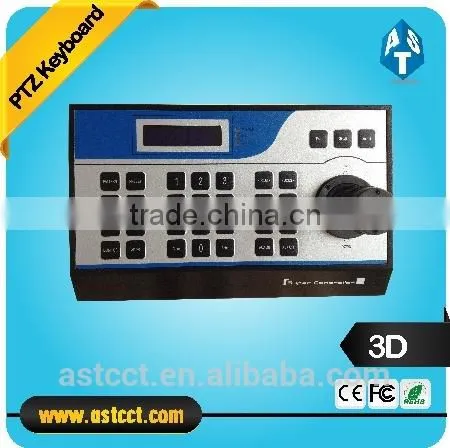

Help CenterHot Speed Dome Keyboard Controller RS485 Controller Control TVI PTZ and AHD PTZ or Analog PTZ Camera 3D Keyboard Controller
Related Products
-
High Speed Dome Camera 4D PTZ Joystick Keyboard ControllerNegotiableMOQ: 1 Piece -
Network IP PTZ 4D High Speed Dome Camera Joystick Network Keyboard ControllerNegotiableMOQ: 1 Piece
-
Rs485 3D Ptz Keyboard Controller Mini Joystick Keyboard for Speed Dome Camera Cctv KeyboardNegotiableMOQ: 1 Piece
-
8" TFT-LCD Large Screen High Speed Dome Camera 3D PTZ Keyboard Controller Control VEHICLE PTZ CameraNegotiableMOQ: 1 Piece
-
High Speed Dome Camera 3D PTZ Camera Keyboard Controller Support Pelco-d, Pelco-d, Panasonic, Hikvision Protocol RS485 ControlNegotiableMOQ: 1 Piece
Functional Features:
1: Specially integrate the principals of RS485 sharing device of our company. Serial embedded DVR and common PCDVR jointly control PTZ to facilitate both client program and the site;
2: Any devices paralleled with RS485 bus can be configured with individual protocol and baud rate, which skillfully enhances the system flexibility;
3: Add some new functional keys, which enhance fast control of PTZ;
4: Online update program. If the protocols required by customers are not built in the intelligence controller, our company can generate corresponding upgrade programs based on customer-offered protocols. What customers should do is to upgrade the firm program of controller through RS485 communication connection on the computer.
Operational Features:
1: Operation, setting and search can be clearly displayed on the liquid crystal display (LCD);
2: Controlling the wobble amplitude of joystick can control rotating frequency of PTZ, and the wobble amplitude can be displayed on the LCD;
3: Changing setting parameters need entering password, so it is safe, reliable and error operation prevented;
4: Single key search is easy and safe, which clearly not only displays setting parameters, but also prevents parameters modifying by mistake.
Compatible Features:
1: Available in 12 PTZ and decoder protocols. Be able to add new protocols as required and online update;
2: Be able to control 255 PTZs, the address code of decoder is from 0 to 254;
3: Support slave serial control, be able to cascade 16 slave controllers. The controller ID is from 0 to 15.
Material Features:
1: Correct and reliable ALPS remote joystick;
2: The keys with 5 million clicks are reliable, wary touched and have prompt sound;
3: large and clear LCD:
4: Standard RS485 signal input and output interfaces use photoelectric isolator, and have enhanced anti-interference ability. The standard transmission distance is up to 1200m;
5: Standard interface makes connection easy, fast and simple.
| Mode | ASKB011 |
| Power Supply | DC12V±10%/50HZ |
| Ambient Temperature | -10~55C |
| Ambient Humidity | ≤90%RH (non-frosting) |

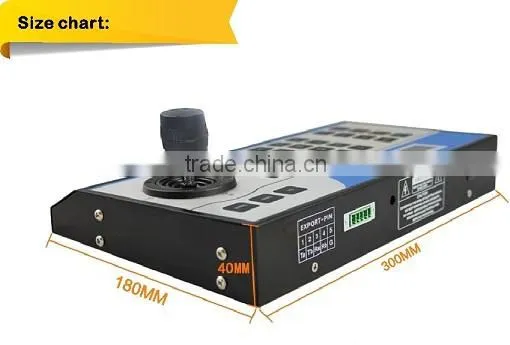

| Dimension | 300(L)× 180(W)× 90(H) |
| Weight | 2.6Kg |
| Communication Method | RS485 half-duplex |
| Communication Baud Rate | 1200bps, 2400bps, 4800bps, 9600bps, 19200bps |

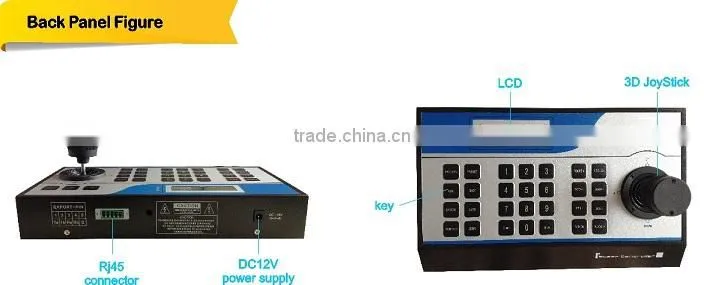

| Interface Method | RJ45, Junction Box |
