Home > Packaging & Printing > Packing Machinery > Sealing Machine > Automatic Cap Tightening Machine (TO-B)

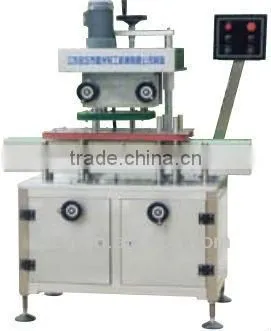

Automatic Cap Tightening Machine (TO-B)

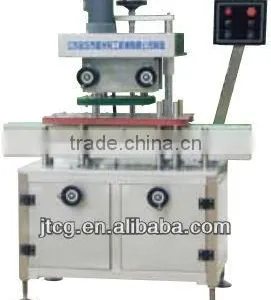

Automatic Cap Tightening Machine (TO-B) thumbnail-1

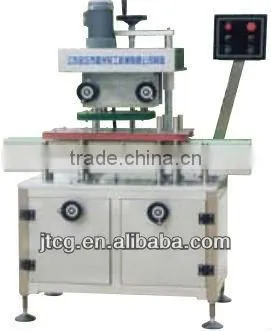

Automatic Cap Tightening Machine (TO-B) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Beverage, Chemical, Commodity, Food, Medical
Driven Type:
Electric
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Changzhou Jintan Chenguang Light-Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Beverage, Chemical, Commodity, Food, Medical
Driven Type Electric
Automatic Grade Automatic
Voltage 3 phase 4 wire, 220V/380V (Or according to customer voltage requiremen
Power 2KW
Packaging Type Bottles
Packaging Material Metal, Plastic
Place of Origin Jiangsu, China
Brand Name JING JIU
Model Number TO-B
Dimension(L*W*H) (L) 1000mm x (W) 700mm x (H) 1500mm
Weight 200 Kg
Certification ISO9001 & ISO14000
After-sales Service Provided Engineers available to service machinery overseas

Product Description



Working Principle:



Further tighten caps in case the caps loosed, while aluminium foil sealing or some bottle missing during the capping process.



Technical Parameters:



Capping Wheel 4 wheels
Suitable cap diameter Φ 20 ~ Φ 70mm
(capping wheel can be made to order)
Suitable bottle diameter Φ 40 ~ Φ 100mm
Capping speed Comply with capping machine speed.
Capping accuracy 99.99%
Working Voltage 3 phase 4 wire, 220V/380V
(Or according to customer voltage requirement)
Power 2KW
Air Pressure 0.55~0.65Mpa
Air consumption 0.6m3/min
Material Stainless Steel 316 & 304
(upon request)
Dimension (L) 1000mm x (W) 700mm x (H) 1500mm
Weight 200 Kg
PLC brand Mitsubishi
Country Origin China



Automatic Cap Tightening Machine (TO-B)




Our Services

1. Technicial guidance;

2. Able to provide video for debugging;

3. Pre-maintance;

4. Quality guarantee for 1 year.  Able to send engineer to dubug/ maintance.  (Hotel & delivery fee paid by customer);

5. You are welcome to share us the sample to test machine;
