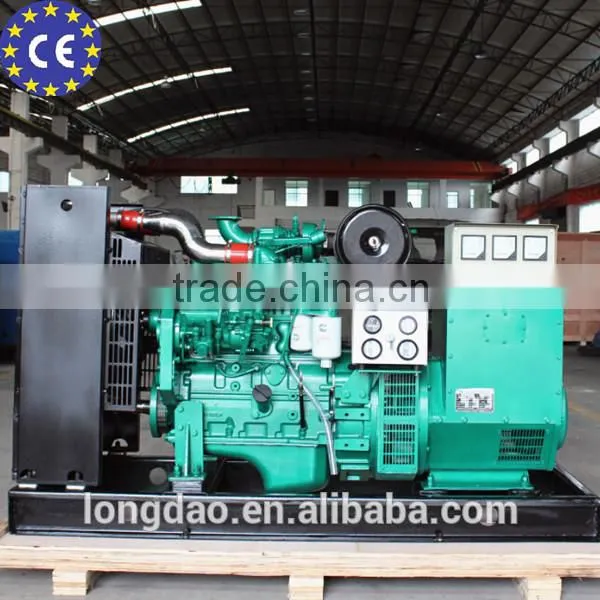

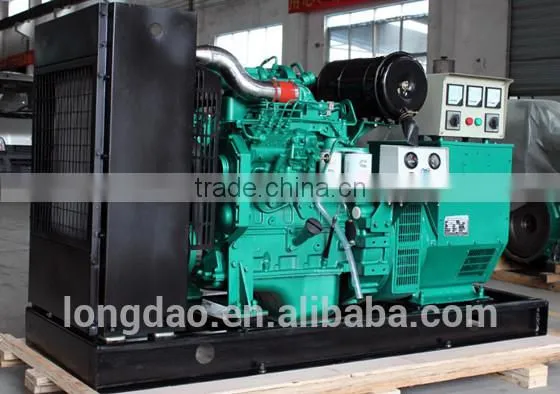

Factory Price Reliable Quality 50 Kva Diesel Generator

US$ 3,000 - 6,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

Model Number:

22GF 30GF 40GF 50GF

Liuzhou Long Dao Industrial And Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name LD

Model Number 22GF 30GF 40GF 50GF

Output Type AC Three Phase

Speed 1500 or 1800 r/min

Frequency 50 or 60 HZ

Rated Power 22 ~50KW

Rated Voltage 230/400 V

Rated Current 40-90A

Specifications

1.Yuchai and FEV Germany technology
2.Price less 20%-30% than other brand
3.CE & ISO9001:2008
4.origin engine parts

Main Product: diesel engine, diesel generator, alternator and spare parts;

Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,

fire pump, construction machine, etc;

Diesel Engine Power Range: from 20kw up to 700kw;

Diesel Generator Power Range: from 30kw up to 700kw.

LD Generator Set Technical Paramenters

Genset Model (LD Brand)		22GF	30GF	40GF	50GF
Rated Power/Speed kw/r/min		22/1500	30/1500	40/1500	50/1500
LD Diesel Engine	Engine Model	4B3.9-G1	4BT3.9-G1	4BTA3.9-G1	4BTAA3.9-G2
	Rated Power/Speed kw/r/min	24/1500	36/1500	50/1500	55/60
	Type	Vertical, inline, water-cooled, four stroke
	Intake Way	Natural	Turbocharged	Turbo & Inter-cooled
	Number of cylinders×bore×stroke (mm)	4-102x120
	Total displacement(L)	3.9
	Min fuel consumption (g/kw.h)	≤225	≤205	≤195	≤195
	Starting type	Electric
	Speed governor model	Mechanical			Electric
	Oil capacity(L)	10-12
	Low noise limit dB (A)	98

Wattek Alternator (Standford Technology)	Alternator model	184F	184H	224D	224E
	Rated voltage (V)	400/230
	Current( A)	39.6	54	72	90
	Freq( Hz)	50
	Regulator approach	AVR
	Power factor (CosØ)	0.8 Lagging
	Phase	3Phase 4Wire
	Insulation Class	F / H
	Protection Class	IP22 / IP23

Genset Packing	Net weight (kg)	600
	Genset Dimention LxWxH(mm)	1700×700×1300
