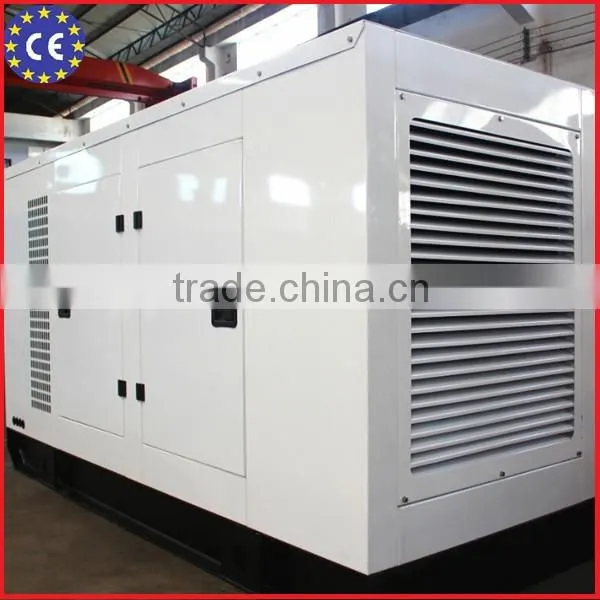

CE Approved Water Cooled Open / Silent Diesel Generator

CE Approved Water Cooled Open / Silent Diesel Generator thumbnail-1
CE Approved Water Cooled Open / Silent Diesel Generator thumbnail-2
CE Approved Water Cooled Open / Silent Diesel Generator thumbnail-3
CE Approved Water Cooled Open / Silent Diesel Generator thumbnail-4
CE Approved Water Cooled Open / Silent Diesel Generator photo-1

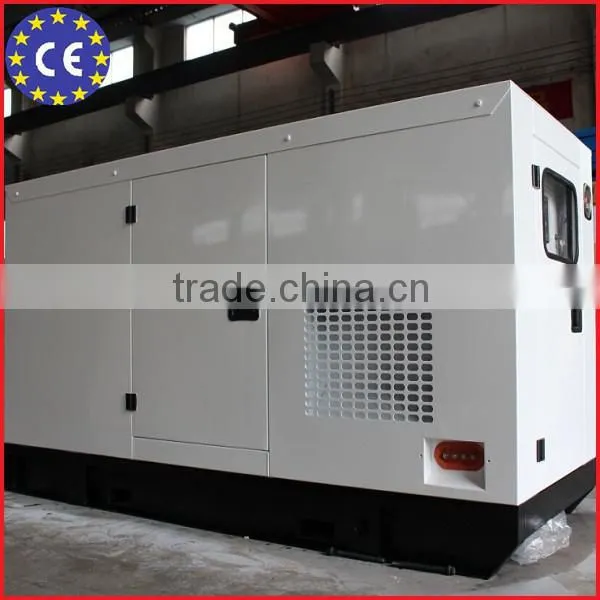

CE Approved Water Cooled Open / Silent Diesel Generator photo-2

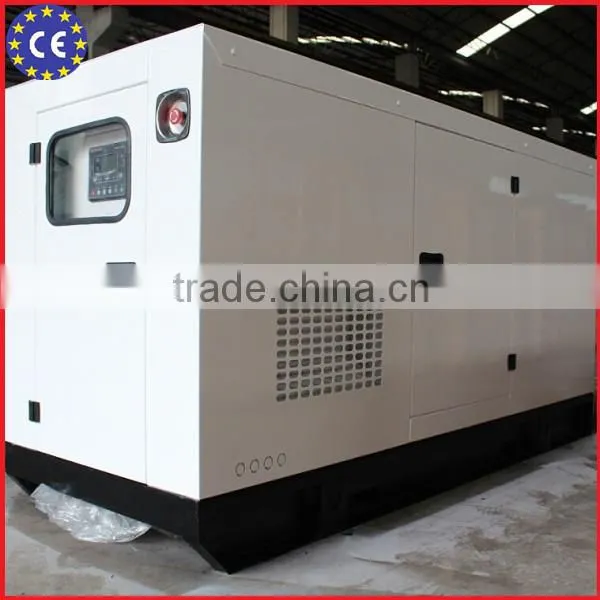

CE Approved Water Cooled Open / Silent Diesel Generator photo-3

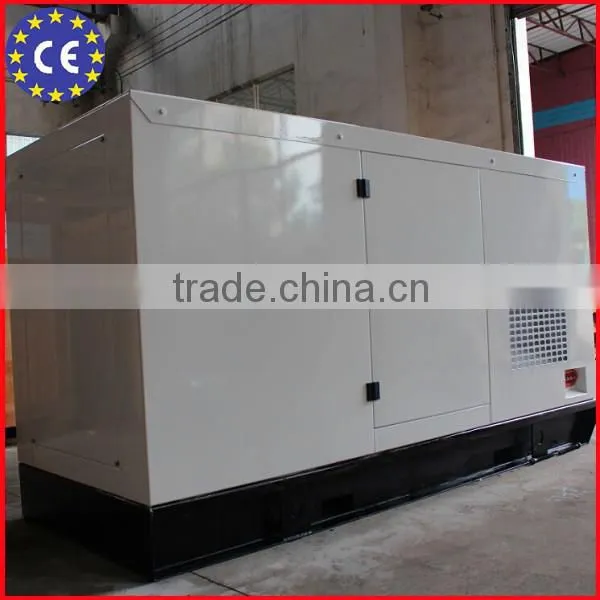

CE Approved Water Cooled Open / Silent Diesel Generator photo-4
US$ 4,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
LD
Model Number:
40GF
Contact Supplier Request Quote Chat Now
Liuzhou Long Dao Industrial And Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name LD
Model Number 40GF
Output Type AC Three Phase
Speed 1500 or 1800 r/min
Frequency 50 or 60 HZ
Rated Power 40KW/50KVA
Rated Voltage 230/400 V
Rated Current 39.6-90 A

Main Product: diesel engine, diesel generator, alternator and spare parts;

Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,

                                     fire pump, construction machine, etc;

Diesel Engine Power Range: from 20kw up to 1000kw;

Diesel Generator Power Range: from 30kw up to 800kw.



CE Approved Water Cooled Silent Diesel Generator Technical Parameters

Genset Model (LD Brand) LDC22GF LDC30GF LDC40GF LDC50GF
Rated Power/Speed (kw/r/min) 22/1500 30/1500 40/1500 50/1500
LD4BT Engine Engine Model LD4B3.9-G1 LD4BT3.9-G1 LD4BTA3.9-G1 LD4BTAA3.9-G2
Rated Power/Speed kw/r/min 24/1500 36/1500 50/1500 55/1500
Type Vertical,inline, water-cooled, four stroke
Intake Way Natural Turbocharged Turbocharged & Inter-cooled
Number of cylinders×bore×stroke (mm) 4-102x120
Total displacement(L) 3.9
Min fuel consumption (g/kw.h) ≤225 ≤205 ≤195 ≤195
Starting type Electric
Speed governor model  Electric
Oil capacity(L) 10-12
Low noise limit dB (A) 98
Wattek Alternator Alternator model 184F 184H 224D 224E
Rated voltage (V)  400/230
Current( A) 39.6 54 72 90
Freq( Hz) 50
Regulator approach AVR
Power factor (CosØ) 0.8 Lagging
Phase 3Phase 4Wire
Insulation Class F / H
Protection Class IP22 / IP23
Genset Packing Net weight (kg) 600
Genset dimension L*W*H (mm) 1600x800x1300
CE approved water cooled open / silent diesel generator



CE Approved Water Cooled Silent Diesel Generator Power Range

Genset

Model

3-PHASE, 4 Wire

Model

Prime Power

Engine

Alternator

Controller

KW

KVA

LDC

WATTEK

SMARTGEN

LD22GF

22

27.5

LD4B3.9-G1

184F

6120

LD30GF

30

37.5

LD4BT3.9-G1

184H

6120

LD40GF

40

50

LD4BTA3.9-G1

224D

6120

LD50GF

50

62.5

LD4BTAA3.9-G2

224E

6120

LD60GF

60

75

LD6BT5.9-G1

224F

6120

LD80GF

80

100

LD6BT5.9-G1

274C

6120

LD100GF

100

125

LD6BTA5.9-G1

274D

6120

LD112GF

112

140

LD6BTAA5.9-G1

274E

6120

LD128GF

128

160

LD6CT8.3-G1

274F

6120

LD150GF

150

188

LD6CTA8.3-G2

274G

6120

LD160GF

160

200

LD6CTAA8.3-G2

274H

6120

LD200GF

200

250

LD6LTAA8.9-G2

274K

6120





Genset 400/230V 50HZ 3-PHASE Constitute
Prime Power Engine Alternator Controller
Type KW KVA LD Brand WATTEK (Stanford Technology) SMARTGEN
30GF 30 37.5 4F50  184H 6120
40GF 40 50 4F65Z  224D 6120
50GF 50 62.5 4D85Z  224E 6120
60GF 60 75 4D110L 224F 6120
80GF 80 100 6B135Z  274C 6120
100GF 100 125 6B170L  274D 6120
120GF 120 150 6B210L 274E 6120
150GF 150 188 6LA245L  274G 6120
160GF 160 200 6LA265L  274H 6120
180GF 180 225 6LA285L  274J 6120
200GF 200 250 6LM350L  274K 6120
250GF 250 312.5 6M420L    444D 6120
300GF 300 375 6MK510L  444FS 6120
360GF 360 450 6MJ570L 544 6120
400GF 400 500 12M690L 544C 6120
468GF 468 585 12M750L 544E 6120
500GF 500 625 12MJ840L 544FS 6120
600GF 600 750 12MJ1050L  634B 6120
640GF 640 800 12MJ1050L  634C 6120

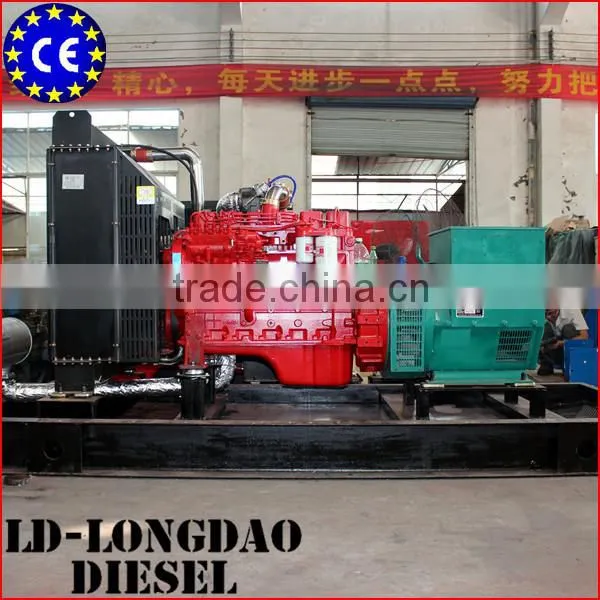

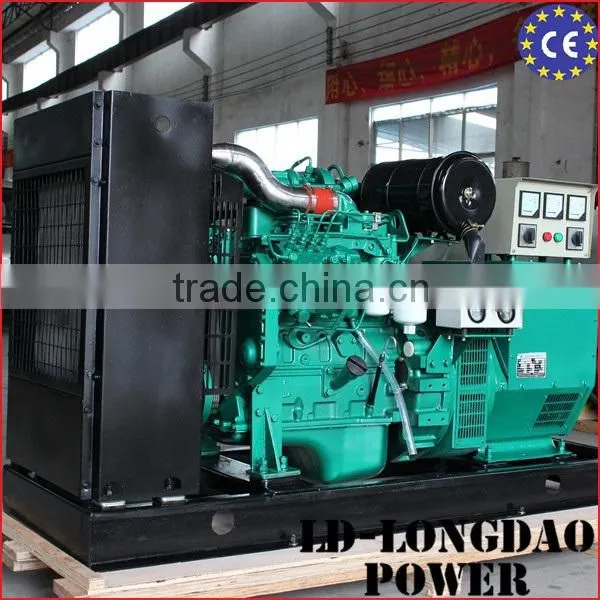

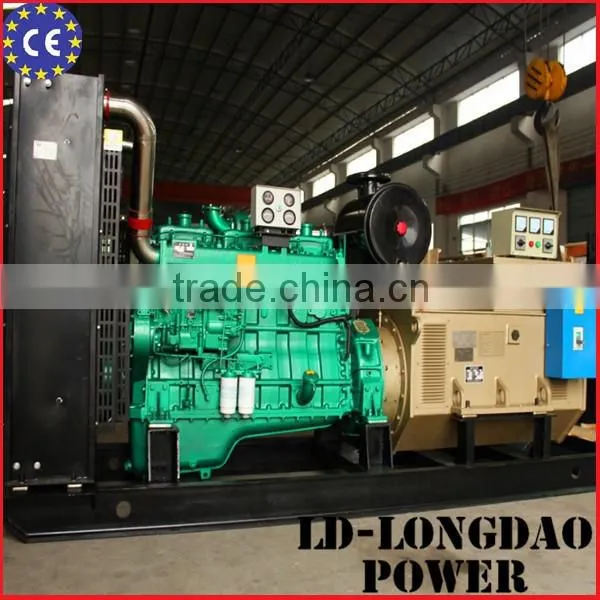

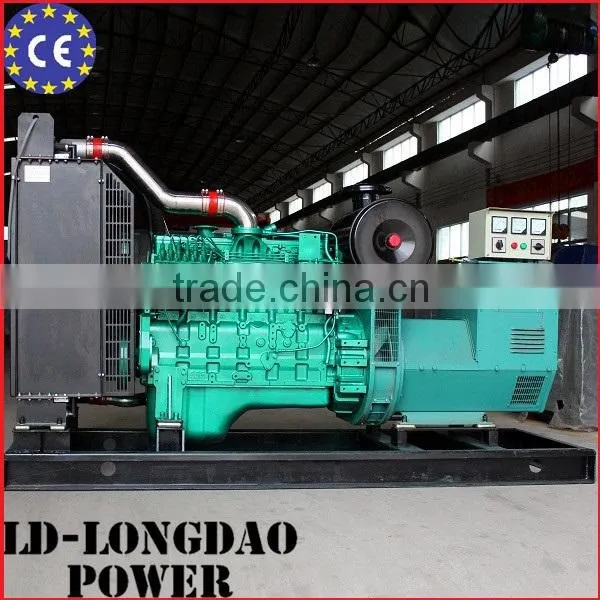

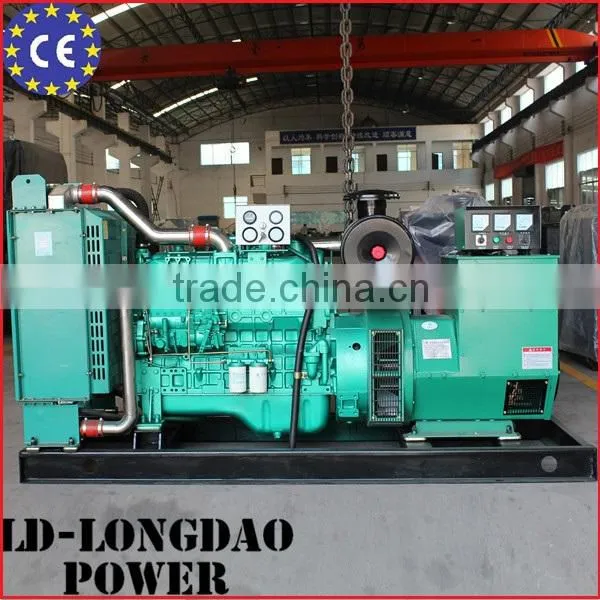

CE approved water cooled open / silent diesel generatorCE approved water cooled open / silent diesel generator

CE approved water cooled open / silent diesel generatorCE approved water cooled open / silent diesel generator

CE approved water cooled open / silent diesel generatorCE approved water cooled open / silent diesel generator
