Specifications
1, Training for technical students 2, Easy to organize various traning projects 3, Expand and upgrade are convenient;Electronic Training Kit, Microprocessor Comprehensive Trainer, Electronics Lab Device
1. System overview:

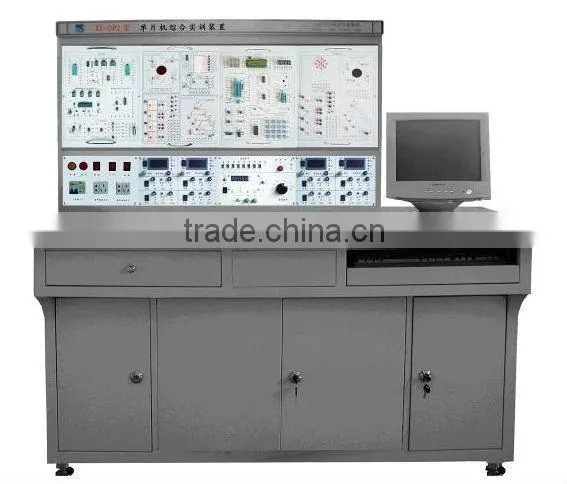

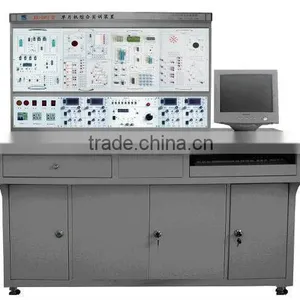

XK-DP2A Microprocessor comphehensive training device can complete single chip computer’s principle and interfacing technology, single chip develop and application experiment, training project; this bench adopts modular construction, can supply for two students independent operation at same time...
2. Technical parameters:
1)Overall dimension: 1700mm*700mm*1400mm;
2)Power supply:
1. single phase AC 220V ≤500W
2. with power supply indication,
3. with ground protection
4. with earth leakage protection
5. with overcurrent protection
6. security feature corresponds government standard
3)Experiment power:
1. DC±12V voltage source two paths
2. AC double 12V voltage source two paths
3. DC ±5V voltage source two paths
4. AC double 8V voltage source two paths
5. Adjustable DC voltage signal source 1.25~30V two paths
6. Adjustable constant flow source 4~20mA two paths
7. Reserve socket AC 200V two paths
4)Signal source:
1. Count impulse: 1Hz~1MHz continuously adjustable, digital display, pulse number adjustable.
2. Single impulse source: plus-minus two ways output
3. Logic level: 8 ways logic level output
4. BCD code: 2 BIT BCD output
5. Frequency indicator: measuring range 2MHz
5)Instrument:
1. Digital voltmeter range DC 200V 0,5 level
2. Digital ammeter range DC 200mA 0.5 level
3. Digital multimeter three-position half digital.
3. Experiment training content:
3.1 SCM basic training project
3.2 SCM overall development training...
