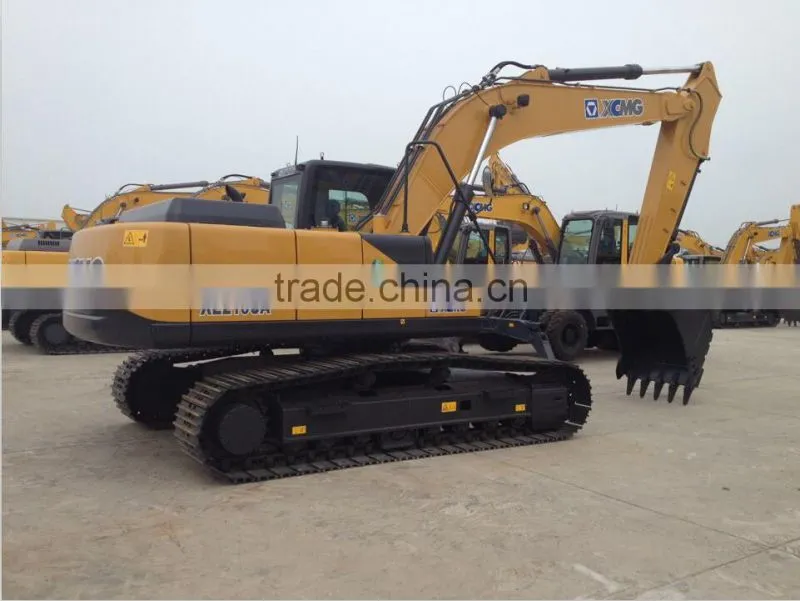

XCMG hydraulic Crawler Excavator XE215CA
Feature:
- The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Advanced hydraulic system
- High-end configuration: The parts such as hydraulic pump, main valve, slewing motor, travel motor, cylinder, pilot control valve, etc. adopt international famous brands (KPM+KYB), guaranteeing the product quality.
- Integrate the latest research achievements, reducing the energy consumption, improving the design, and responding faster.
- Lock function of boom and arm: Prevent the boom and arm from falling, and prolong the time in neutral position.
- Oil return regeneration of arm: It can make the arm withdraw quickly and stably.
- Strong and precise slewing control: Improve the vibration absorption to ensure the slewing stop action more precise and stable.
Parameter:
Model |
unit |
XE215 |
|
Operating weight |
kg |
21500 |
|
Standard bucket capacity |
m³
|
0.8~1.0
|
|
engine |
Engine Model |
/ |
ISUZU BB-6BG1TRP |
Direct injection |
/ |
√ |
|
Four strokes |
/ |
√ |
|
Water cooling |
/ |
√ |
|
Turbo charged |
/ |
√ |
|
Air to air intercooler |
/ |
× |
|
No. of cylinders |
/ |
6 |
|
Rated power/speed |
kw/rpm |
106.5/1950 |
|
Max. torque/speed |
N.m |
551/1600 |
|
Displacement |
L |
6.494 |
|
performance |
Travel speed |
km/h |
5.5/3.3 |
Swing speed |
r/min |
13.3 |
|
Max. gradeability |
/ |
≥35 |
|
Ground pressure |
kPa |
45.5 |
|
Max.Bucket digging force |
kN |
138 |
|
Max.arm crowd force |
kN |
103 |
|
Max.traction force |
kN |
184 |
|
hydraulic system |
Main pump |
/ |
two piston pumps |
Rate flow of main pump |
L/min |
2×206
|
|
Max pressure of prime relief valve |
MPa |
32.3/34.3 |
|
Max pressure of travel system |
MPa |
34.3 |
|
Max pressure of swing system |
MPa |
30 |
|
Max pressure of pilot system |
MPa |
3.9 |
|
Oil capacity |
Fuel tank capacity |
L |
360 |
Hydraulic tank capacity |
L |
220 |
|
Engine lubrication |
L |
25 |
|
Overall dimension |
Overall length |
mm |
9525 |
Overall width |
mm |
2990 |
|
Overall height |
mm |
3000 |
|
Overall width of upperstructure |
mm |
2710 |
|
Track length |
mm |
4270 |
|
Overall width of undercarriage |
mm |
2990 |
|
Crawer width |
mm |
600 |
|
Track length on ground |
mm |
3462 |
|
Crawer gauge |
mm |
2390 |
|
Clearance under counter weight |
mm |
1050 |
|
Ground clearance |
mm |
470 |
|
Min.tail swing radius |
mm |
2750 |
|
operating range |
Max. digging height |
mm |
9640 |
Max. dumping height |
mm |
6800 |
|
Max. digging depth |
mm |
6655 |
|
8inch horizonal digging depth |
mm |
6470 |
|
Max. vertical wall digging depth |
mm |
5695 |
|
Max. digging reach |
mm |
9925 |
|
Min. swing radius |
mm |
3530 |
|
Angle of arm deflection |
Degree |
||
