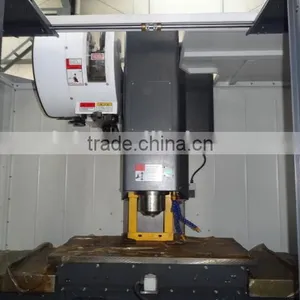

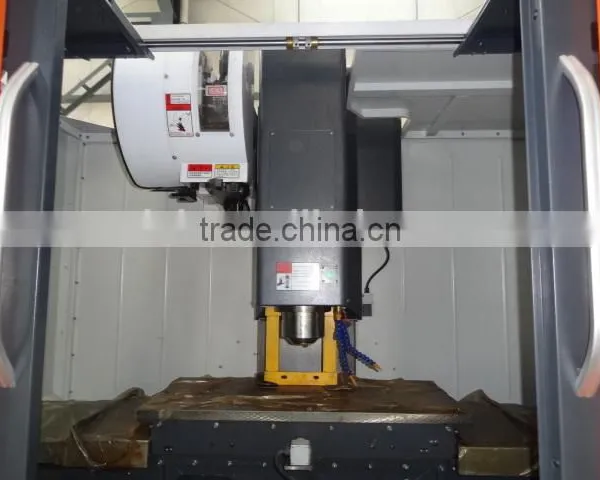

VMC1580 VERTICAL MACHINE CENTER
1. SPECIFICATION
|
unit |
VMC1580 |
Table size |
mm |
1700*800 |
T slot |
Qty-width*distance |
5-22*135 |
Max. loading on table |
kg |
1500 |
Longitudinal travel Y |
mm |
800 |
Cross travel X |
mm |
1500 |
Vertical travel Z |
mm |
700 |
spindle nose to table |
mm |
170-870 |
Spindle center to column |
mm |
810 |
Spindle taper |
|
BT50 |
Speed |
rpm |
8000 |
spindle motor power |
kw |
15(18.5optional) |
Cutting feeding X/Y/Z |
mm / min |
10000 |
rapid feeding X/Y/Z |
m / min |
1515/15 |
X, Y, Z axis motor power |
kw |
4.0/7.5/4.0 servo |
tool magazine capacity |
piece |
24 |
tool magazine type |
|
arm type |
Max. tool length |
mm |
350 |
Max. tool weight |
kg |
15 |
positioning accuracy |
mm |
±0.005 |
Repeat-ability accuracy |
mm |
0.004 |
Electric capacity |
kva |
30 |
overall dimensions (LxWxH) |
mm |
4260*3545*3200 |
N. W. |
KG |
12000 |
2. FEATURES
High quality resin-coated sand casting |
Taiwan spindle |
Taiwan ball screw and locking nut |
Taiwan pressure cylinder |
Japan NSK bearing |
Germany R+W coupling |
Automatic lubrication system |
Chip conveyor optional |
3. Standard/Optional
Boxway guideways, Linear x3/2/1 optional
24 pcs disc type magazine, 16 pcs hat ( umbrella ) type optional
Chip conveyor optional
12000rpm spindle optional
4th/5th axis optional
KND 1000M system standard, (KND 2000M,GSK, Siemens, Fanuc, etc OPTIONAL).
4. Custom-making, OEM services avail
