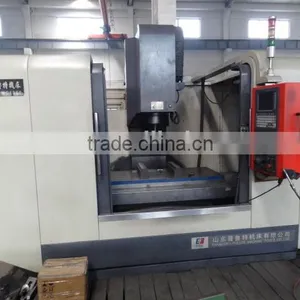

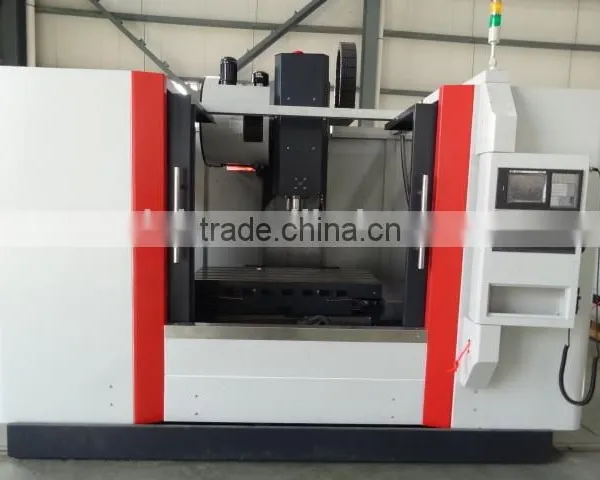

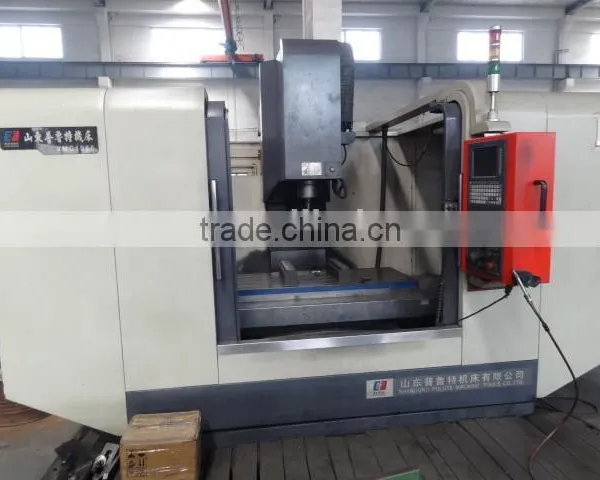

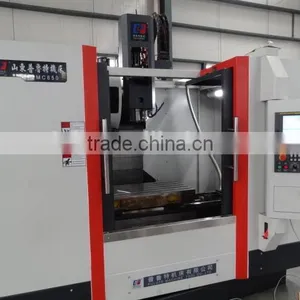

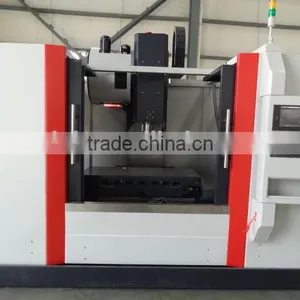

China Economical VERTICAL MACHINE CENTER VMC1060
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VMC1370 VERTICAL MACHINE CENTER VMC1060NegotiableMOQ: 1 Set -
VMC1580 Campagns Call Centers Game Machine for Game Center Turning Center MachineNegotiableMOQ: 1 Set
-
VMC1580 Cnc Machine Center PriceNegotiableMOQ: 1 Set
-
2015 Latest Design VMC650 4 Axis Small Vertical Machining CenterNegotiableMOQ: 1 Set
-
2015 Latest Design VMC650 Small Vertical Turning Machine CenterNegotiableMOQ: 1 Set
Condition
New
Type
Vertical
Place of Origin
Shandong, China
Brand Name
Pulute Machine Pulutek
Model Number
VMC1060
Voltage
200/400V
Power(W)
5.5/7.5KW
Dimension(L*W*H)
2780*2450*2700KG
Weight
6000KG
Certification
ISO9001 ISO14001 CE
Warranty
One year warranty
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
VMC850 VMC1060
VERTICAL MACHINE CENTER
1. SPECIFICATION
| Specifications | Units | VMC850L2 | VMC1060 |
| X/Y/Z axis travel | mm | 850×500×550 | 1000×600×700 |
| Spindle nose to table | mm | 110-610 | 140~840 |
| Spindle center to column | mm | 560 | 650 |
| X/Y/Z axis rapid feed | m/min | 20×20×18 | 15×15×12 |
| Feeding speed | mm/min | 1-5000 | 1-5000 |
| Table size | mm | 500×1050 | 600×1300 |
| Max loading on table | Kg | 450 | 800 |
| T-slot (No.-width-distance) | mm | 5×18×90 | 5×18×100 |
| Spindle speed | rpm | 8000 | 8000 |
| Spindle diameter | mm | 70 | 70 |
| Spindle taper | BT40 | BT40 | |
| Main motor power | KW | 7.5/11 | 7.5/11kw |
| Magazine type | Hat type | Hat type | |
| Magazine capacity | 16 | 16 | |
| Max tool diameter | mm | 80/130 | 80/150 |
| Max tool length | mm | 300 | 300 |
| Max tool weight | Kg | 6 | 6 |
| Machine overall size (L×W×H) | mm | 2700×2150×2700 | 3200×2250×2960 |
| Machine net weight | Kg | 5700 | 6700 |
2. FEATURES
High quality resin-coated sand castings |
Taiwan spindle |

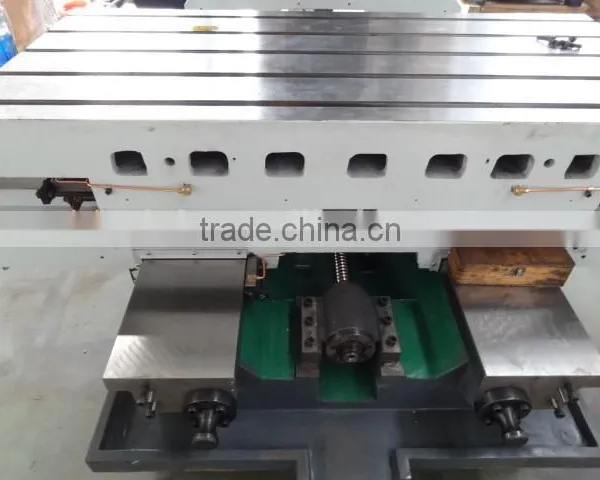

Taiwan ball screw and locking nut |
Taiwan pressure cylinder |
Japan NSK bearing |
Germany R+W coupling |
Automatic lubrication system |
Chip conveyor optional |
3. Standard/Optional

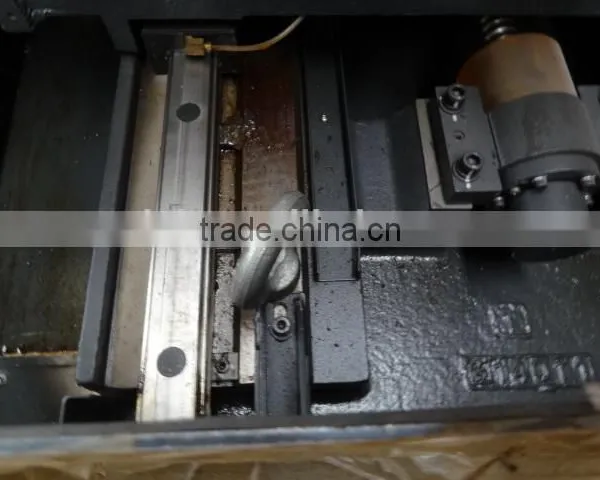

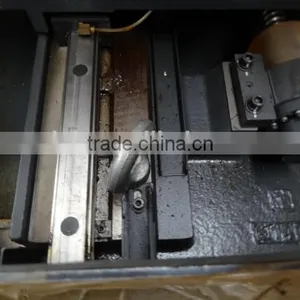

Boxways, Linear guideways x 2 or 1.
24 pcs disc type magazine, 16 pcs hat ( umbrella ) type optional
Chip conveyor.
10000/800012000rpm spindle optional
4-axis, 5-axis, rotary table, optional
KND 1000M system standard, (KND 2000M,GSK980/988, Siemens 808D/828, Fanuc 0i mate-MD).
4. Custom-making, OEM services avail
