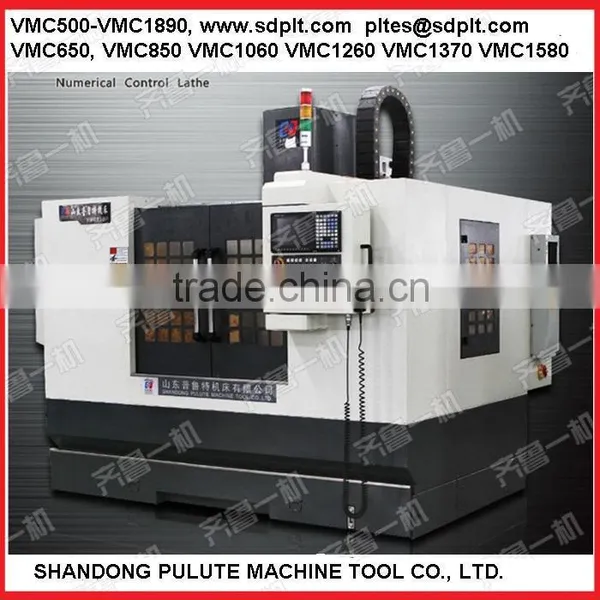

VMC1370 VERTICAL MACHINE CENTER
1. SPECIFICATION
|
VMC1370 |
Table size |
1400*710 mm |
X axis travel |
1300 mm |
Y axis travel |
700 mm |
Z axis travel |
650 mm |
Distance between spindle center and column |
785 mm |
Distance between spindle nose and table |
150-800 mm |
T-slot (No.* slot width *spacing) |
5-18*152.5 qty-mm |
Spindle taper |
BT50 |
ATC type |
24-pcs tools, disk type |
Speed speed |
8000 rpm |
Spindle motor |
11/15 kw |
X.Y.Z axis servo motor |
4/4/4 kw |
Max.load capacity of work table |
1000 kg |
X.Y.Z rapid feed speed |
15/15/15 m/min |
X.Y.Z cutting feed speed |
1-10 m/min |
X.Y.Z axis position accuracy |
±0.005/300 mm |
X.Y.Z axis reposition accuracy |
±0.003 mm |
Dimension (L*W*H) |
3600×3000×2700 mm |
N.W. |
11 Tons (11000kg) |
2. FEATURES
High quality resin-coated sand casting |
Taiwan spindle |

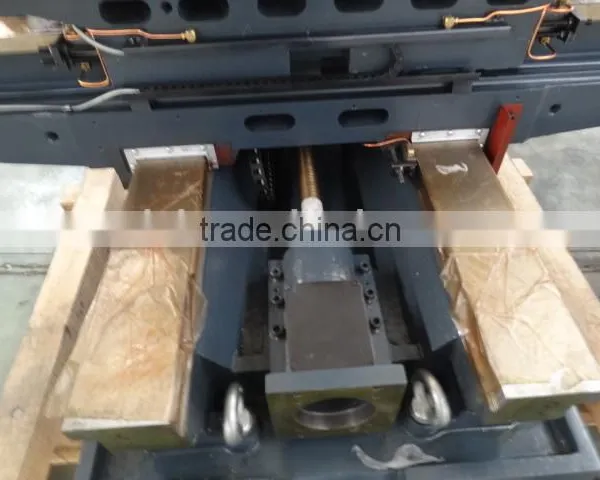

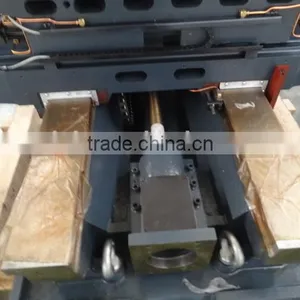

Taiwan ball screw and locking nut |
Taiwan pressure cylinder |
Japan NSK bearing |
Germany R+W coupling |
Automatic lubrication system |
Chip conveyor optional |
3. Standard/Optional

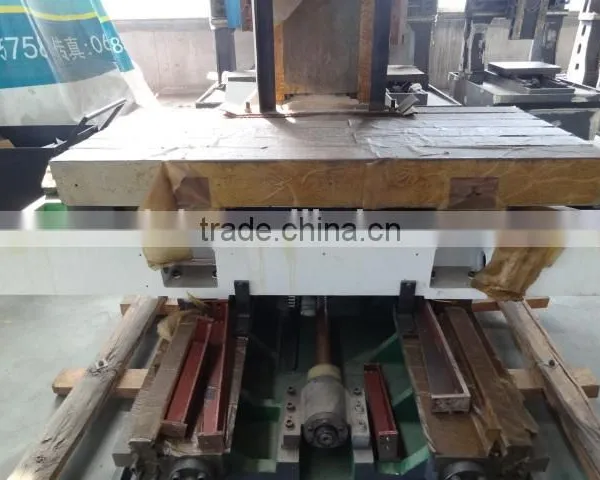

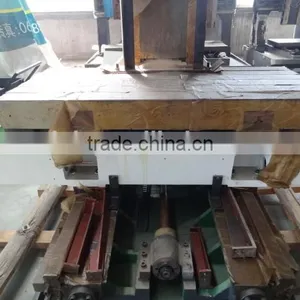

Boxways, or Linear guideways x3/2/1
24 pcs disc type ATC, 12/16 pcs hat ( umbrella ) type optional
Chip conveyor.
8000/10000/12000rpm spindle.

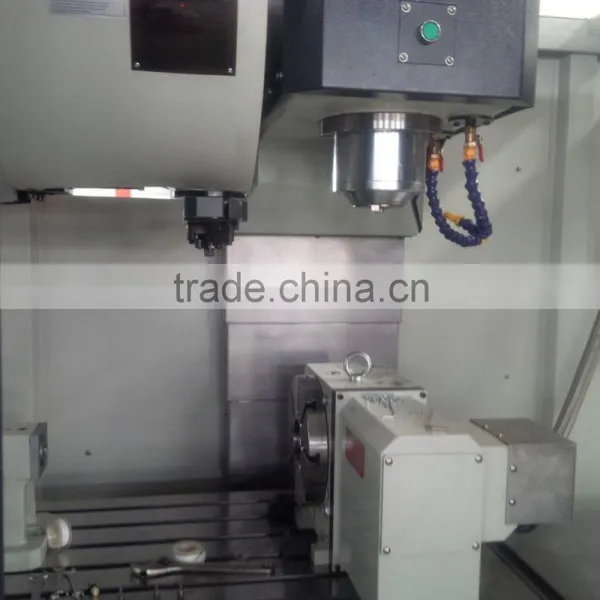

4th/5th axis optional
KND 1000M system standard, (KND 2000M,GSK980/988, Siemens 808d/828, Fanuc 0i mate, etc).
4. Custom-making, OEM services avail
