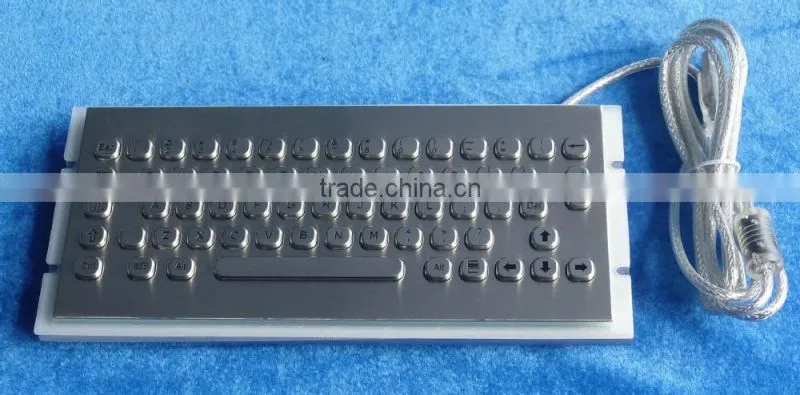

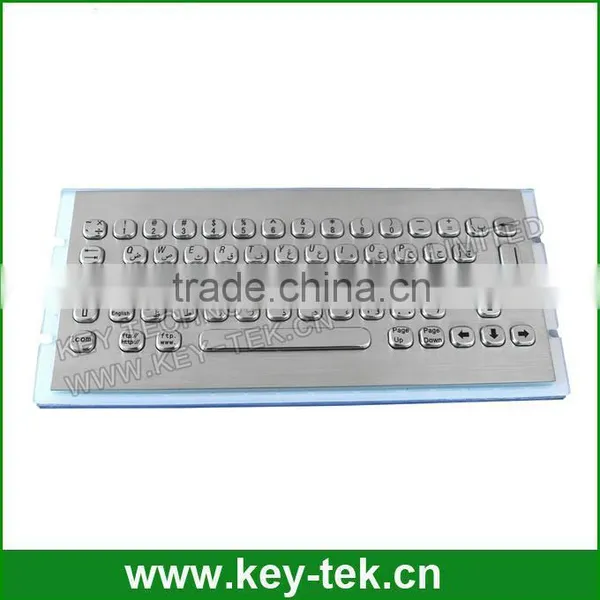

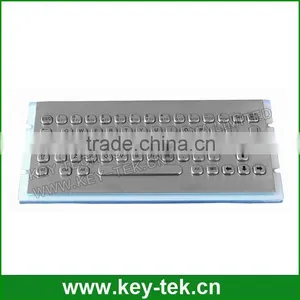

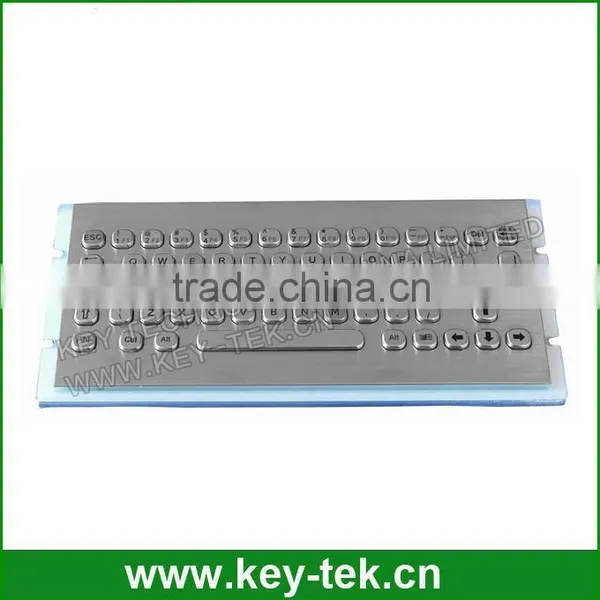

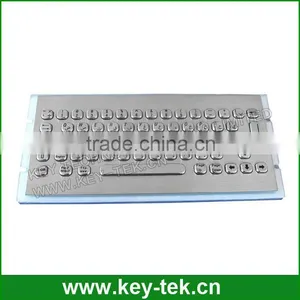

Compact Format IP65 Industry Mini Keyboard for kiosk application
Special Features:
1. Mini 64 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
2. Industrial metal PCB with carbon-on-gold key switch technology
3. With extremely good tactile feeling
4. Rear panel mounting solution.
5. CE,RoHS,FCC,IP65,ESD
6. Complete electronic modules including controller in close consultation with our customers are available.
7. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
8.Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA | |
Actuator/keys |
64 keys, |
Key top style |
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size |
10.0mm x 10.0mm for normal keys, 14.0mm x 100.0mm for space bar. |
Key travel |
2.0mm |
Switch life |
more than 10 million of operations |
Actuation Force |
1.50N+/-0.1N for key 10.0mm x 10.0mm (pressure point) |
Front Plate |
1.5mm thickness super quality brushed stainless steel |
Back Plate |
3.0mm thickness brushed & oxidized aluminium |
G.W. |
1.00KGs |
Dimensions |
220.0mm x 101.0mm (front panel), 236.0mm x 109.0mm (back panel) |
ELECTRICAL DATA | |
Supply Voltage |
+5V DC +/-5% |
Current Rating |
appr. 20mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; |
EMI: |
EN 55022: 2010 |
EMS: |
EN 55024:2010 |
Lifespan |
> 5 years |
Switch Contact Material: |
Carbon-on-Gold key switch technology PCB. |
Interface: |
PS2, USB available. |
OS: |
All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature |
-20oC to +60oC |
Storage temperature |
-30oC to +70oC |
Operating RH |
30-90% |
Atmospheric pressure |
60-106Kpa |
Saline mist |
96 hours, IEC 60512-6 |
Damp heat test at + 40oC |
21 days, IEC 60512-6 |
Dry heat test at + 85oC |
10 days, IEC 60512-6 |
RELIABILITY | |
Certification |
RoHS Compliant, CE and FCC, IP65, ESD |
Protection Level |
IP65(front panel) |
Vandal resistant |
IK09 |
Key Lifespan |
>10 million actuations |
MTBF |
>50000H |
MTTR |
<30min |
