Help CenterIP65 Waterproof Merine Keyboard With Touchpad
Related Products
-
Industrial Metal Mini 2mm Long Stroke KeyboardNegotiableMOQ: 1 Piece -
IP65 Compact Format Mini Metal Keyboard With 0.45mm Short StrokeNegotiableMOQ: 1 Piece
-
MINI Type 68 Keys Compact Format Vandal Proof IP65 Stainless Steel KeyboardNegotiableMOQ: 1 Set
-
Integrated Meta Keyboard With Trackball for KioskNegotiableMOQ: 1 Piece
-
Compact Format Vandal Proof Metal Keypad With Touch PadNegotiableMOQ: 1 Set

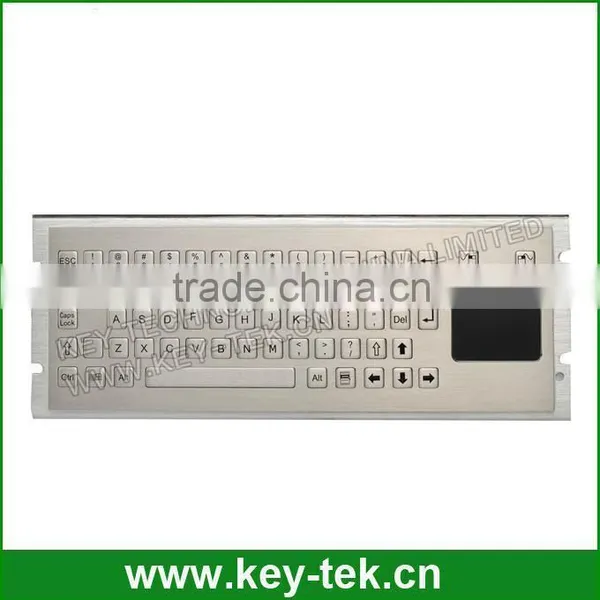

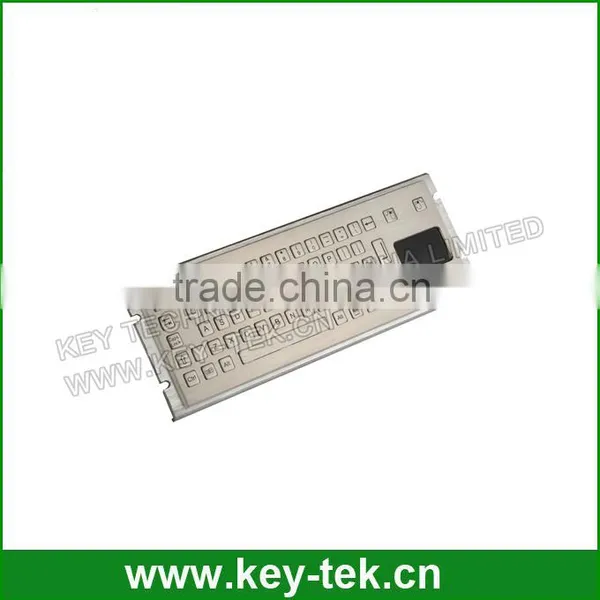

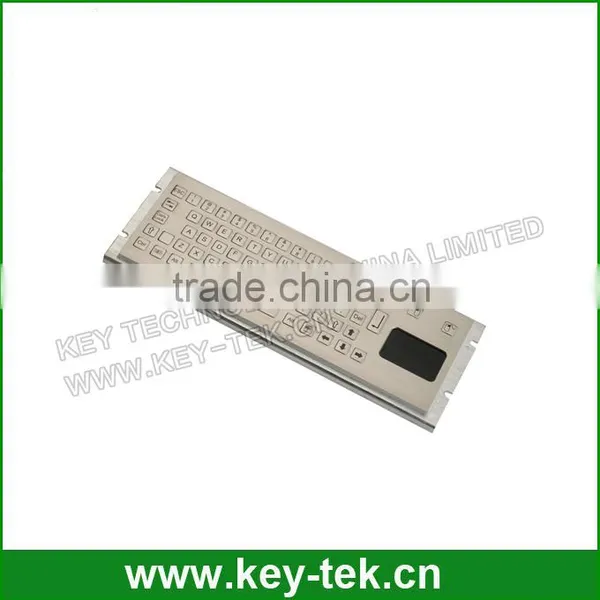

MINI 68 Keys IP65 static rated Compact Format Vandal Proof Stainless Steel Industrial keyboard with IP65 dynamic sealed and ruggedized tough touchpad module with +400 DPI resolutions for accurate cursor position,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input.2 mouse buttons under touchpad for right & left clicking, high quality durable black titanium electroplated on the top stainless steel plate optional, with rear panel mounting solution .
DIMENSIONS: 255.0mm x 90.0mm (top panel)
Special Features: 1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. 2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments. 3. Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel. 4. An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation 5. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off. 6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers. 7. Ease of customizing with multiple languages, to accommodate foreign or custom variants. 8. Complete electronic modules including controller in close consultation with our customers are available. 9. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
Applications: This Keyboard is mainly targeted for use for: A: unsupervised or semi -supervised positions of varied access applications, B: internet terminals and information kiosks at universities, C: shopping malls, hotels, airports, railway stations and other public areas, D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc. Specifications:
MECHANICAL DATA | |
Key |
69 keys, super quality brushed stainless steel |
Key top style |
Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
Key Size |
10.0mm x 10.0mm for normal keys 10.0mm x 20.0mm for enter key, 10.0mm x 75.0mm for space bar. |
Key travel |
0.45mm |
Switch life |
more than5 million of operations |
Actuation Force |
1.50N+/-0.1N for key 10.0mm x 10.0mm (pressure point), 3.0N+/-0.1N for key 10.0mm x 20.0mm (pressure point) |
Front Plate |
1.5mm thickness super quality brushed stainless steel |
Back Plate |
3.0mm thickness brushed & oxidized aluminium |
G.W. |
1.60KGs |
Dimensions |
255.0mm x 90.0mm (front panel), 275.0mm x 102.80m (back panel) |
TOUCHPAD | |
Touchpad cover |
Composite |
More than Lifetime 10 million strokes | |
Mutual Capacitance sensing | |
X/Y position sensing resolution |
40 counts/mm |
X/Y position reporting |
Relative |
Output (self-detectable depending on cable) |
PS2 or USB |
Tracking speed |
Maximum 1,016 m/sec |
Power supply voltage |
5 V DC ±0.25V |
Current rating (active mode) |
17 mA |
ELECTRICAL DATA | |
Supply Voltage |
+5V DC +/-5% |
Current Rating |
appr. 20mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
EMI: |
EN 55022: 2010 |
EMS: |
EN 55024:2010 |
Lifespan |
> 5 years |
Switch Contact Material: |
Gold-on-Gold key switch technology PCB. |
Interface: |
PS2, USB available. |
OS: |
All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature |
-20oC to +60oC |
Storage temperature |
-30oC to +70oC |
Operating RH |
30-90% |
Atmospheric pressure |
60-106Kpa |
Saline mist |
96 hours, IEC 60512-6 |
Damp heat test at + 40oC |
21 days, IEC 60512-6 |
Dry heat test at + 85oC |
10 days, IEC 60512-6 |
RELIABILITY | |
Certification |
RoHS Compliant, CE and FCC,IP65,ESD |
Protection Level |
IP65(front panel) |
Vandal resistant |
IK10 |
Key Lifespan |
>5 million actuations |
MTBF |
>50000H |
MTTR |
<30min |
