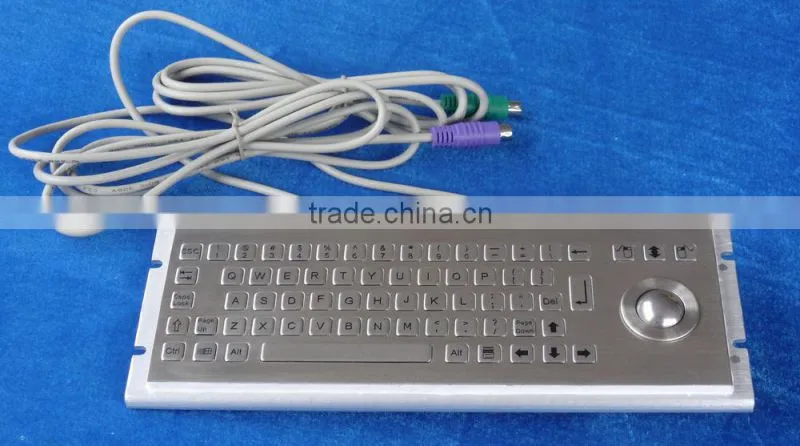

Help CenterMINI Type 68 Keys Compact Format Vandal Proof IP65 Stainless Steel Keyboard
Related Products
-
IP65 Waterproof Merine Keyboard With TouchpadNegotiableMOQ: 1 Piece -
Industrial Metal Mini 2mm Long Stroke KeyboardNegotiableMOQ: 1 Piece
-
IP65 Compact Format Mini Metal Keyboard With 0.45mm Short StrokeNegotiableMOQ: 1 Piece
-
Integrated Meta Keyboard With Trackball for KioskNegotiableMOQ: 1 Piece
-
Compact Format Vandal Proof Metal Keypad With Touch PadNegotiableMOQ: 1 Set
Description:MINI type 68 keys compact format vandal proof IP65 stainless steel keyboard with integrated 25mm stainless steel tracker ball and 3 mouse keys, with metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm, rear panel mounting.
Dimension: 255.0mm x 90.0mm (front panel)
APPLICATION:
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MECHANICAL DATA:
Actuator/keys: 68 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 20.0mm for enter key, 10.0mm x 75.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 1.50N+/-0.1N for key 10.0mm x 10.0mm (pressure point), 3.0N+/-0.1N for key 10.0mm x 20.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed & oxidized aluminium
Tracker ball: 25.1mm (1.0’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical Trackball.
G.W. 1.00KGs
Dimensions: 255.0mm x 90.0mm (front panel), 275.0mm x 102.80m (back panel)
ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council EMC directive 89/336/EEC
EN55022: 1988+A1:2000+A2:2003
EN55024: 1988+A1:2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan > 5 years
Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations
MTBF >50000H
MTTR <30min
