Specifications

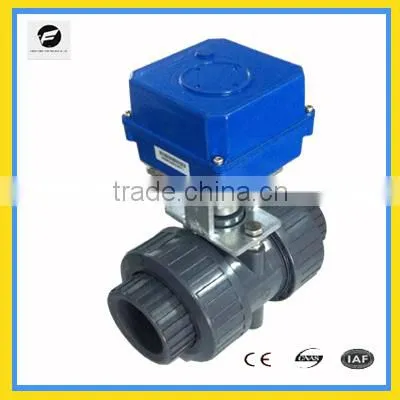

220v/AC electric actuator ball valve for automatic control with HAVC,water treatmentCTB-10 Electric valve Motorized valve ball valve
Material of the valve: Brass,UPVC,Brass
Detailed Product Description
Actuator can sell separately
Size: ball valve DN50-65 (2'' to 2.5'')
Butterfly valve DN50-125,(2'' to 5'')
Technical parameters:
Voltage:DC24V,AC110/220V/380V. 50/60HZ
Actuator rotation:0-360 degrees
Torque of actuator: 100NM
Open/close time:13-30sec
Electric machine:23W
Number of Wires: 2-5 wires
Working Presure: 0-10 Bar
Metal gear, large output torque
Actuator weight:3.7kg
Manually operating: operated by disassembling type hexagonal handle
Waterproof performance IP-67
Installation angle: any angle
Material of main parts:
Actuator: aluminum alloy
Coupling: die-casting metal
Bracket:stainless steel
Body:stainless steel(304,316),UPVC
Ball seat: PTFE
Sealing: EPDM
NPT,flanged,welded connecting
Features:
The size of the actuator is only a quarter of average ones.Though samll in size,it has super torsion
Various kinds of body material are availbaler for choose,which can resist corrosion and high temperature
Product is designed with high level protection to IP67 level
Manual override function can prevent damage during power failure
height is integrated into electric appliance body, the externally-connected localizer is not
required. Numerically setting, numerically regulating, highly accurate, self-diagnosis, many
functions on one machine.
