CTB-005 Motorized Ball Valve Flange for Water Treatment ,water Filter System

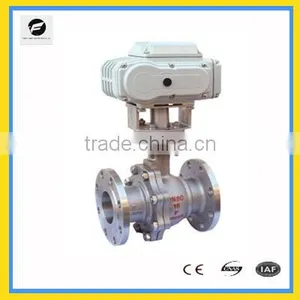

CTB-005 Motorized Ball Valve Flange for Water Treatment ,water Filter System thumbnail-1

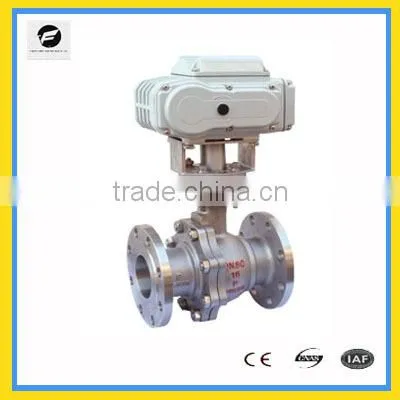

CTB-005 Motorized Ball Valve Flange for Water Treatment ,water Filter System photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Tianjin Tianfei High-Tech Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure High Pressure
Power Other, electric
Material Casting
Temperature of Media High Temperature
Media Water
Port Size 2''-18''
Place of Origin Tianjin, China
Model Number CTB
Brand Name TF

Specifications

CTB-005 motorized ball valve flange for water treatment ,water filter system

electric valve

PVC FRPP, PPR Butterfly Valve Series according to DIN, ANSI, JIS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;

Pneumatic Butterfly Valve:
Basic Type (Switch Type): Installed Pneumatic Butterfly Valve Actuators
Optional: Electromagnetic Valve (Single, Dual DC, AC 24V, 110V, 220V)
All Switch, Joint Pieces of Gas Source, Regulatory Locator Configuration as the User's Request

PVC, FRPP, PP-R Butterfly Valve Level Style with DIN, ANSI, JIS, CNS, From DN50-DN200 ( 2"-- 8" ). DN50 - DN150 PN10, DN200 PN6.

1. PVC Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Carbon Steel Stem #45 & EPDM Rubber.
2. PVC Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Stainless Steel Stem # 420 & EPDM Rubber.
3. PVC Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Stainless Steel Stem # 304 & EPDM Rubber
4. PVC Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Stainless Steel Stem # 304 & FPM / VITON Rubber.
5. FF-PP / PP-G Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Carbon Stem #45 & EPDM Rubber.
6. FF-PP / PP-G Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Stainless Steel Stem # 420 & EPDM Rubber.
7. FR-PP / PP-G Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Stainless Steel Stem # 304 & EPDM Rubber.
8. FR-PP / PP-G Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Stainless Steel Stem # 304 & FPM / VITON Rubber.
9. PP-R Butterfly Valve ( Lever ) DIN, ANSI, JIS, CNS Standard With Carbon Stem #45

Specification

Working Pressure

Carton Size

Carton

Size MM

Size Inch

Pipe Dia. MM

MPa

CM

Set

DN50

  2’’

63

1.0MPa

48×41×30

16

DN65

  2-1/2’’

75

1.0MPa

48×41×30

14

DN80

3’’

90

1.0MPa

48×41×30

10

DN100

4’’

110

1.0MPa

48×41×30

8

DN125

  5’’

140

1.0MPa

48×41×33

5

DN150

  6’’

160

1.0MPa

48×41×30

4

DN200

8’’

200

0.6MPa

57×38×31

3

TF CTB series valve actuators
1.Voltage:24VDC,220VAC,380V.
2.IP67.
3.Valve size: 1/2'' to 18''.

CTB Series Actuators





Electrical Parameters

Item

CTB-005

CTB-010

CTB-020

CTB-40

CTB-50

CTB-100

CTB-200

Voltage

DC24V // AC220~240V // 3-PH AC380V

Output Torque (NM)

50

100

200

400

500

1000

2000

Time (s)

10/30

15/30

10/15/30

10/15/30

10/15/30

50

100

Power (W)

10

23

40

80

90

100

100

Rated Current (A)

0.21

0.25

0.4

0.75

0.8

0.9

0.9

Protection

Overheat Protection (Restore Automatically)

Input Signal

DC4-20mA, DC1-5V

Output Signal

DC4-20mA

Rotation Angle

0~90º

Ambient Temperature

-25~60

Withstand Voltage

AC1500V / One Minute

Insulation Resistance

100MQ (500V)

Weigh (Kg)

2.3

4.0

7.3

8

8.4

12

12

Installation Angle

Any Angle

Protection Class

IP67

House Material

Cast Aluminium Alloy

Manual Device

Hexgonal Socket-Head Wrench

Position Limit

Limit Switch (When Operated Electrically)

Mechanical Stop (When Operated Manually)

Optional

Functions

Mechanical Overload Protection

DC4-20mA Position Signal (Potentiometer)

Motor Malfunction Signal

Dehumidification Heating Device
