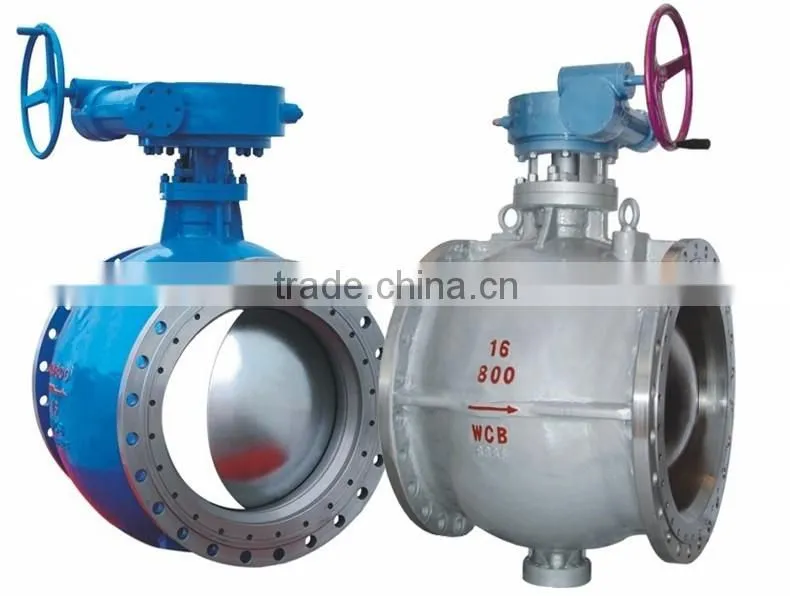

Help CenterBQ41F-16 Steam Jacket Heat Preservation Ball Valve
Related Products
-
3 Inch Stainless Steel CF8 Dust Discharge Ball Valve DN50US$ 10 - 1,000MOQ: 1 Piece -
Gear Operation WCB Flange Ball Valve PN16US$ 10 - 1,000MOQ: 1 Piece
-
API Manual Flange End Ball Valve for Water Oil GasUS$ 10 - 1,000MOQ: 1 Piece
-
RF End Stainless Steel Ball ValveUS$ 10 - 2,000MOQ: 1 Piece
-
Board Brass Ball ValveUS$ 15 - 70MOQ: 10 Pieces
1) Size: 1/2" - 12"
2) Pressure: 150Lb-600Lb
3) Applicable medium: Water, oil, gas, nitric acid, acetic acid

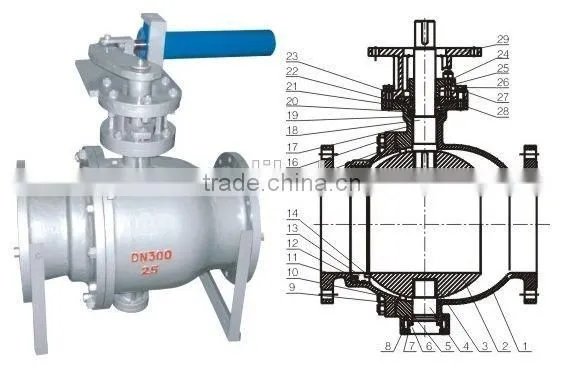

Material Specification:
| Description | WCB | CF8 | CF3 | CF8M | CF3M |
| Body & Body Cap | A216-WCB | A315-CF8 | A35-CF3 | A351-CF8M | A351-CF3M |
| Ball | A105-1025, A216-WCB | A182-F304L, A315-CF8M | A182-F304L, A351-CF3 | A132-F316, A351-CF8M | A182-F316L, A351-CF3M |
| Stem | A182-F6a | A182-F304 | A182-F304L | A182-F316 | A182-F316L |
| Seat | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON |
| Seat Retainer | A105-1025 | ||||
| Spring | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H |
| O-ring | NBR | VITON | VITON | VITON | VITON |
| Stud | A193-B7 | A193-B8 | A193-B8 | A193-B8 | A193-B8 |
| Nut | A194-2H | A194-8 | A194-8 | A194-8 | A194-8 |
We can produce special valves according to the requirement of clients.
Wenzhou Jiasheng Valve Co., Ltd, is a professional valve manufacturer since 1995. Our main products include high temperature regulating metal to metal butterfly valves, rubber sealing butterfly valves, hydraulic butterfly valves, telescopic butterfly valves, ball valve, gate valve and etc. At present, we mainly produce/manufacture "ISO, API, ANSI, DIN, BS, EN, GB, JB" standard valves, also special valves according to the requirement of clients.
