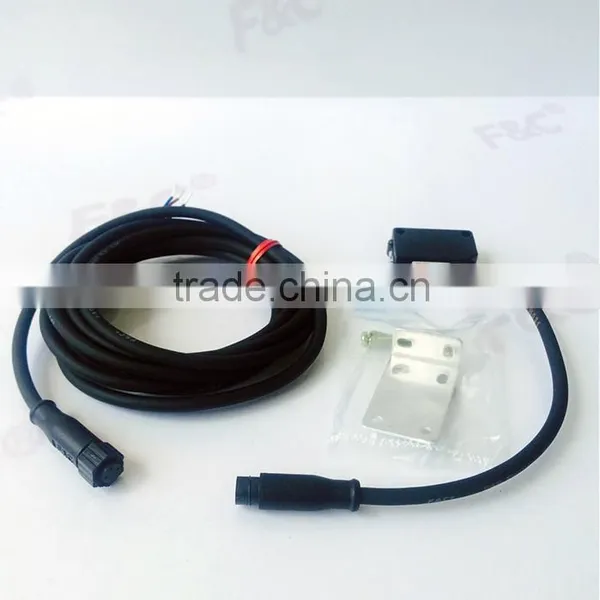

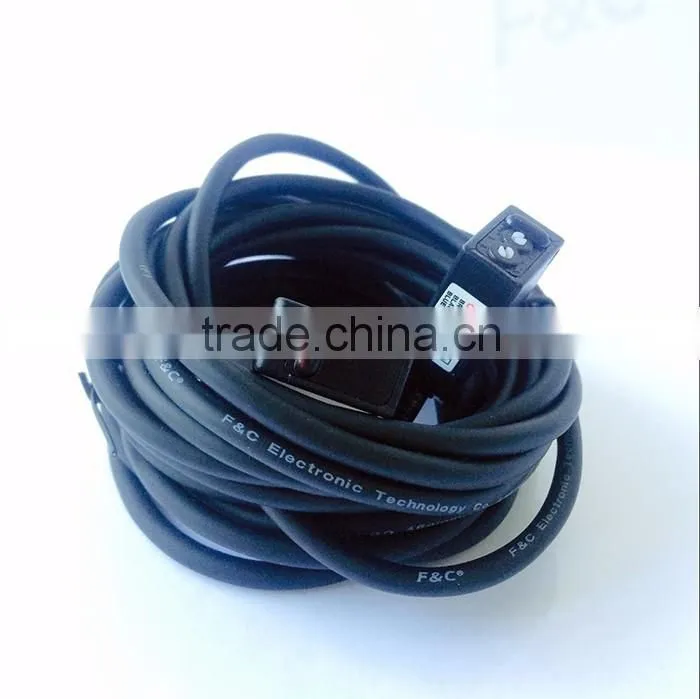

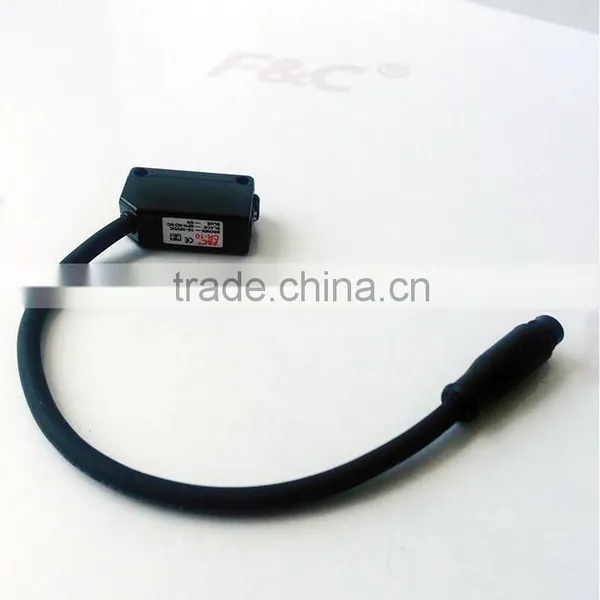

Help CenterSmall Size NPN NO NC Diffuse Photoelectric Sensor With Quick M8 Connector
Related Products
-
Small Square 12-24V dc PNP Retro-reflective Photoelectric Sensor With ReflectorUS$ 10 - 25MOQ: 1 Piece -
M18 NPN NO Through-beam Waterpoof Photoelectric Sensor With CEUS$ 1 - 23MOQ: 1 Piece
-
F&C Miniature Photoelectric Switch SensorUS$ 2.66 - 4.39MOQ: 10 Pieces
-
F&C Long Distance Through-beam Photoelectric SensorUS$ 18.03 - 27.05MOQ: 1 Piece
-
F&C Voltage Analog Output Diffuse Photoelectric SensorUS$ 23.52 - 35.28MOQ: 1 Piece
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you.
Feature of CR series diffuse photoelectric switch sensor
1.Ideal for conveyor system.
2.Through-beam, diffuse photoelectric switches for option
3.Long distance through-beam photoelectric switch can reach 10m.
4.Standard EN product. PNP and NPN are available
electric switch Connecting wires and quick disconnecting connector can be customized
Product display
Product specification
| Model | CRRI-S10/15D R2M |
| Light Source | 850nm Infrared modulated light |
| Detection distance | 10cm |
| Operating Voltage | 12~24V DC |
| Consumption Current | 15mA |
| Load Current | 100mA Max@ 24V DC |
| Output Method | NPN NO+NC |
| Response Time | 0.3mS Max |
| Insulation Resistance | 20MΩ min@ 500V DC |
| Dielectric strength | 1000V AC 60HZ for 60secs |
| Operating Temperature | -10~50℃ |
| Material | ABS |
| Connection | 150mm wire with M8 connector |
| Certificate | CE |
| Protection Degree | IP64(IP67 can be customized) |
| Polarity Protection | Yes |
| Short Circuit Protection | Yes |
Dimension drawing for 10cm diffuse photoelectric sensor
More Photoelectric Switch
Our service
About product: All our sensors use high quality material and we accept customization.
About warranty: we promise replacement within 18 months if any quality problems.
About lead time: For sample, 5work days only.
For mass production order, 7 days after deposit. About price: The most favorable price in the same quality products.
Our Factory
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of
“Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy
customer needs”.
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
