Home > Electrical & Electronics > Sensor > Pressure Sensor > FC-spx310 (SU-B3) U Shape Photo Sensors Switches, 10mm Sensing Slot, NPN.NO.NC Or PNP.NO.NC Offered.
FC-spx310 (SU-B3) U Shape Photo Sensors Switches, 10mm Sensing Slot, NPN.NO.NC Or PNP.NO.NC Offered.
US$ 10 - 30
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FC-spx310 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered.US$ 4 - 7MOQ: 5 Pieces -
M18 Through-beam NPN NO Infrared Photoelectric Switch SensorUS$ 15 - 25MOQ: 1 Piece
-
M18 Cylindrical 5m Through-beam NPN Infrared Photoelectric Switch SensorUS$ 11.26 - 13.75MOQ: 1 Piece
-
Waterproof M18 5m Through-beam Photoelectric Sensor With CEUS$ 5 - 25MOQ: 1 Piece
-
M18 Cylindrical 10m Through-beam NPN NO Infrared Photoelectric Switch/ SensorUS$ 15.54 - 18.98MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FC-spx310 series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
Part Number:
FC-spx310 NPN.NO.NC, 4-wires
FC-spx310p PNP.NO.NC, 4-wires
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
Emitting light |
Red LED:630nm |
Operating voltage |
DC:10~30VDC±10%(Ripple P-P:10%Max) |
Current consumption |
15mA Max |
Load current |
100mA Max at DC 24V |
Output type |
N=NPN.NO P=PNP.NPN |
Protection circuit |
Reversed supply ciruit protection,short citcuit protection output |
Response time |
0.3 ms Max |
Insulation resistance |
20M Ωmin.(DC500V) |
Voltage withstandatility |
AC1000V 60Hz for 60 Sec |
Operating temperature |
-10°C~+45°C No freezing allowed |
Ambient hunidity |
35%~95%RH |
Storage temperarure |
-10°C~+55°C No freezing allowed |
Storage hunidity |
35%~95%RH |
Material |
ABS |
Wiring method |
φ2.6×2M/4-wires /φ4.2×2M/3-wires /φ4.2×2M/4-wires |
Protection degree |
IP66 |
Weight |
Approx.18.5g |

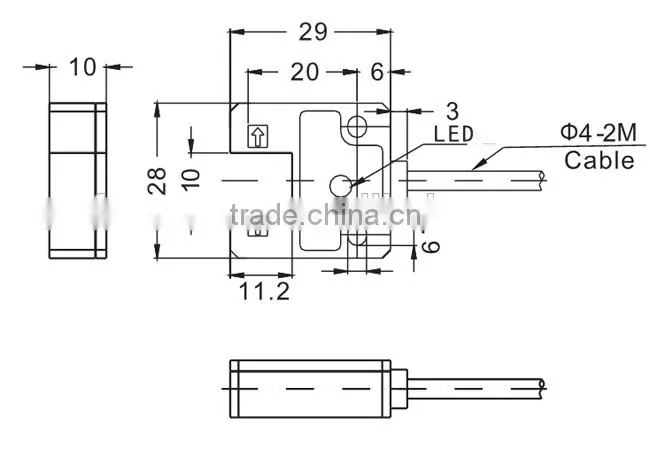

Diagram
