12V High Torque dc Electric Motor for Water Pumps

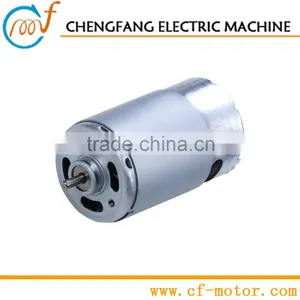

12V High Torque dc Electric Motor for Water Pumps thumbnail-1
12V High Torque dc Electric Motor for Water Pumps thumbnail-2
12V High Torque dc Electric Motor for Water Pumps photo-1

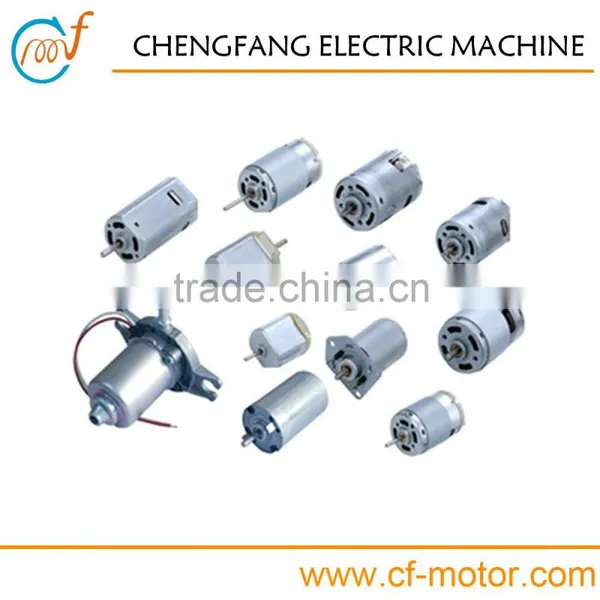

12V High Torque dc Electric Motor for Water Pumps photo-2
US$ 0.5 - 0.8 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
RS-365PH-09270, RS-365PH-09270
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor, Chengfang
Model Number RS-365PH-09270, RS-365PH-09270
Type DC Motor
Motor Brush
Voltage 12V
Certification ROHS

12V high torque dc electric motor used for vending machine RS-365A



1.12V DC vending machine  motor

2.High torque,long life,small dissipation.
3.Aprrox. 52g,24.4x30.8mm.
4.Fast delivery.
5.ROHS



The models we list below are part of our existing designs. We can customized them after evaluation if you can specify your own needs like voltage, speed, torque front shaft length and so on.



RS-365H

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
RS-365PH-09270 12.0 CONST 2,930 0.036 2,192 0.095 28.4 0.63 54.91 0.28 105



Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz



12V high torque dc electric motor for water pumps









  • Damper actuator motor
  • Automotive air conditioner motor
  • 370 motor
  • Dimension: dia. 24.4 x 30.8 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / SECC end cap / Rubber Magnet
  • Application: Damper actuator / Gear box
  • Weight: Approx. 50g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire






·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets

12V high torque dc electric motor for water pumps
